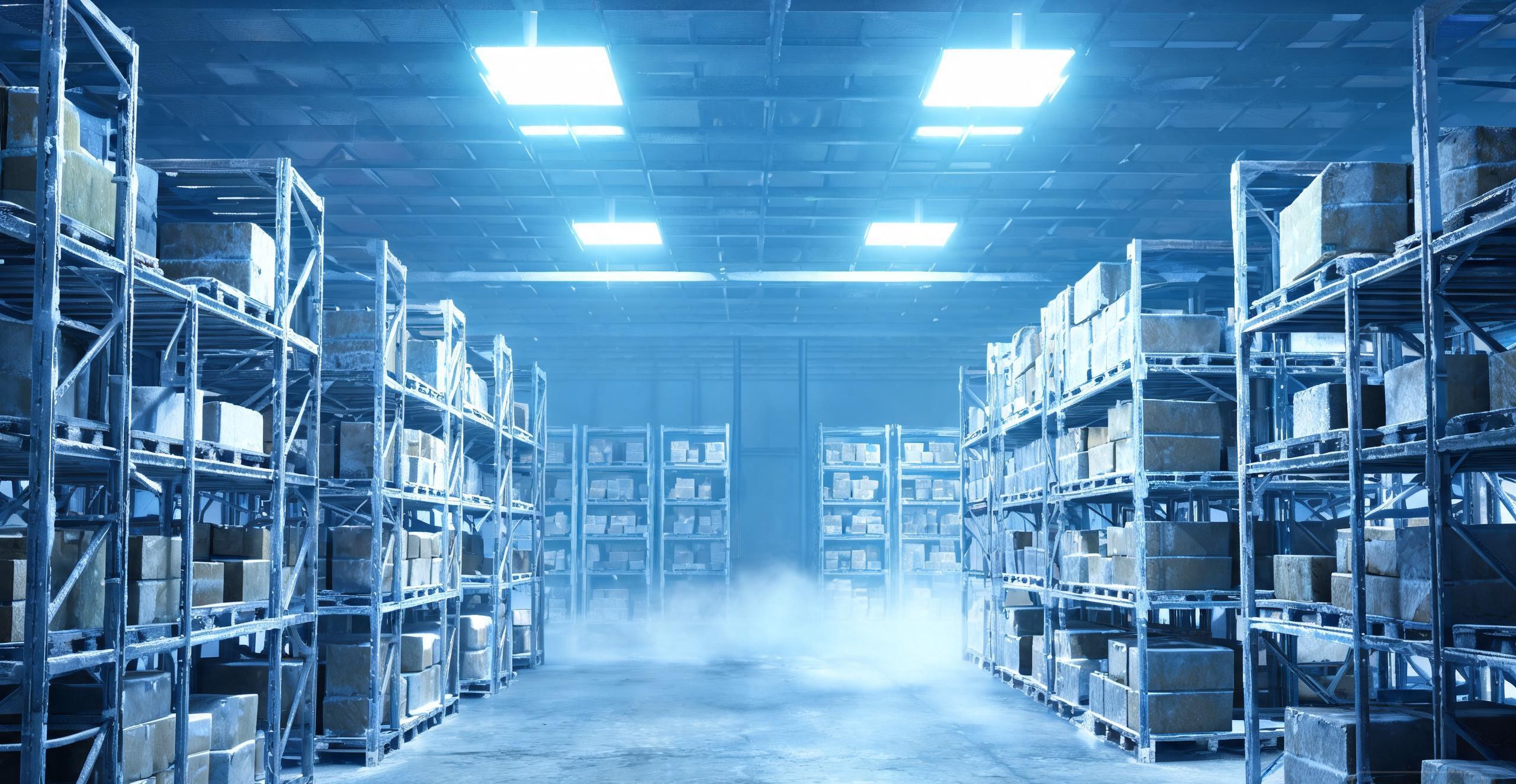

Freeze Room LED Lighting at -30°C

Deep-freeze rooms are where lighting goes to die: at −30°C, fluorescent technology simply stops performing. This project shows how low-temperature-rated LED luminaires delivered full light output instantly inside a frozen-food distributor’s −30°C facility — while cutting lighting energy by more than half.

Application Background

A frozen-food distributor storing IQF seafood, vegetables, and bakery goods across eighteen −30°C rooms was fighting a losing battle with its fluorescent tube installation:

• Fluorescent output collapses in the cold — at −30°C the tubes delivered roughly 40% of rated light, leaving picking aisles below the safety lux target
• Starting failures multiplied as mercury vapor pressure dropped with temperature; each defrost-and-restart cycle killed more tubes, and maintenance meant suiting up for 20-minute stints in the freeze rooms
• Condensation and frost formed on luminaires wherever warm air met the cold envelope after door openings, blocking light and corroding fittings
• Lamps left burning around the clock because switching them off risked another failed restart — wasting energy on lighting nobody was looking at

Engineering Challenge

Cold is the one environment where LEDs hold a fundamental physical advantage — but only if the whole luminaire is engineered for it:

• LED chips actually gain efficacy as temperature drops (junction efficiency rises), so full output at −30°C is straightforward for the emitters themselves
• The real weak point is the driver’s aluminum electrolytic capacitors, typically rated to −25°C; below that, capacitance falls and the driver stresses or fails — the design had to specify low-temperature-rated driver components
• IP65 sealing with gasketed end caps keeps condensation out of the electronics through door-opening humidity cycles and washdown of adjacent areas
• Instant, restrike-free starting had to pair with motion sensing, so rooms light to 100% the moment a picker enters and drop to standby when the room is empty

Solution & Key Components

Queendom supplied its waterproof LED tube range with low-temperature driver builds for the deep-freeze environment:

Parameter	Value	Design Note
Operating temperature	Rated for −30°C continuous	Low-temp-rated driver capacitors
Light output at −30°C	100% of rated flux, instant	Cold actually aids LED efficacy
Ingress protection	IP65, gasketed tube body	Survives condensation and washdown
Control	Motion sensor, instant restrike	Lights only when rooms are occupied
Corridor interface	Anti-frost lens option at door zones	Keeps output stable at the warmest, dampest spots
Service lifetime	50,000 h (L70)	Cuts freeze-room maintenance stints

Installation notes for cold-store operators: existing fluorescent wiring routes were reused, with luminaires dropped onto the same mounting points; door-zone positions received the anti-frost lens option because that strip of ceiling sees the most moisture cycling.

Results

Picking aisles now run at roughly twice the previous maintained illuminance, motion sensing removed the around-the-clock burn that fluorescent’s restart fear made unavoidable, and the maintenance team’s freeze-room entries dropped from weekly to none. The distributor has standardized the same luminaire specification for its planned expansion rooms.

Recommended Products

Frequently Asked Questions

Do LEDs really perform better in extreme cold?

Yes — semiconductor junctions become more efficient as they cool, so an LED rated for 25°C operation actually gains light output and lifetime headroom at −30°C. Cold is the friend of the LED chip; the engineering effort goes into the driver and seals, not the emitters.

What actually fails when cheap “cold-rated” lights die in freezers?

Almost always the driver: standard aluminum electrolytic capacitors lose capacitance below their rated temperature, and the driver overstresses on every start. A genuine low-temperature build specifies capacitors and other components rated for the actual ambient — that is the difference between a light that survives the freezer and one that survives the datasheet.

How do you handle frost on the fixtures near doors?

Door zones see the worst moisture cycling — warm air hits a freezing surface and deposits frost. Anti-frost lens options and IP65 gasketing at those positions keep the optical surface stable and the electronics dry, while rooms deeper in the cold envelope need no special treatment.
