Street light | SL9 series

 Street light | SL9 series | led street lamp

OVERVIEW

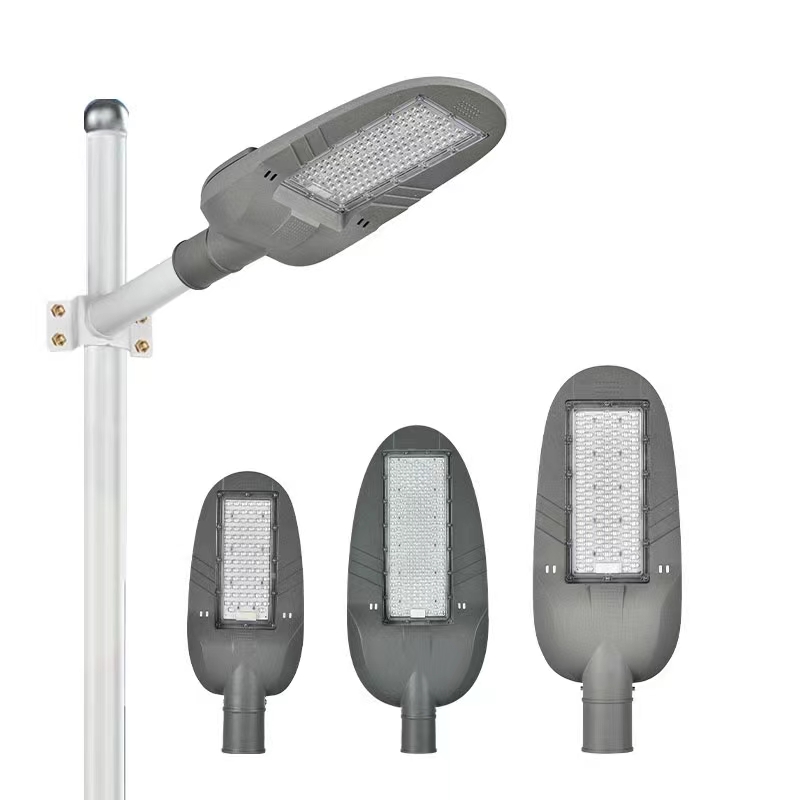

Street light – SL9 series This series is a 6063 aluminum heat sink. The entire lamp has overvoltage, overload, overtemperature, and lightning protection (the anti-surge level reaches above 4KV)

PRODUCT

Product performance of Queendom Street light | SL9 series led street lamp at test current, Tj=25°C Flux and Tj=85°C for R9 and CRI

Product No.

Power

LEDs

Core piece

Input Voltage

Effect  LM/W

Luminous flux

Color

(Ra)

PF

Power Efficiency

IP

View Angle

Weight

SIZE

Packing size

Part No.

QdSLSL901

30W

36

Philips

AC85-265V

125lm/W

>3600

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

2.8Kg

520*212*90MM

550*240*100MM

9405500000SL19

QdSLSL902

30W

36

Philips

AC85-265V

125lm/W

>3750

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

2.8Kg

520*212*90MM

550*240*100MM

9405500000SL20

QdSLSL903

60W

72

Philips

AC85-265V

125lm/W

>7200

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

2.9Kg

520*212*90MM

550*240*100MM

9405500000SL21

QdSLSL904

60W

72

Philips

AC85-265V

125lm/W

>7500

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

2.9Kg

520*212*90MM

550*240*100MM

9405500000SL22

QdSLSL905

100W

96

Philips

AC85-265V

125lm/W

>12000

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

4.3Kg

630*250*170MM

680*290*180MM

9405500000SL23

QdSLSL906

100W

96

Philips

AC85-265V

125lm/W

>12500

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

4.3Kg

630*250*170MM

680*290*180MM

9405500000SL24

QdSLSL907

150W

150

Philips

AC85-265V

125lm/W

>18000

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

5.8Kg

700*295*170MM

750*350*185MM

9405500000SL25

QdSLSL908

150W

150

Philips

AC85-265V

125lm/W

>18750

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

5.8Kg

700*295*170MM

750*350*185MM

9405500000SL26

QdSLSL909

200W

240

Philips

AC85-265V

125lm/W

>24000

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

11.2Kg

850*366*198MM

900*400*215MM

9405500000SL27

QdSLSL910

200W

240

Philips

AC85-265V

125lm/W

>25000

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

11.2Kg

850*366*198MM

900*400*215MM

9405500000SL28

QdSLSL911

240W

240

Philips

AC85-265V

125lm/W

>28800

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

11.5Kg

850*366*198MM

900*400*215MM

9405500000SL29

QdSLSL912

240W

240

Philips

AC85-265V

125lm/W

>30000

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

11.5Kg

850*366*198MM

900*400*215MM

9405500000SL30

FEATURES

Street light-SL9 series  complies with current European and American street lamp acceptance standards;

The height of the entire lamp is 8m, and the lamp pole is made of Q235 carbon steel or Q835-A steel plate;

The inner and outer surfaces of the light pole are hot-dip galvanized for anti-corrosion treatment and then sprayed with plastic. The color is subject to the renderings. The surface is smooth, does not discolor, has no pinholes, no sagging, no peeling, etc.; the galvanizing thickness is not less than 85 microns, and the color is sprayed with plastic. The thickness is not less than 100 microns;

The support rods and rungs are made of high-quality low-carbon steel with no obvious marks such as dents, and are made of the same materials as the main rod.

Hot-dip galvanizing, plastic spraying;

The flange is formed by plasma cutting, with smooth periphery, no burrs, beautiful appearance, and accurate hole position; the thickness is not less than 20mm.

The electrical door is plasma cut with accurate dimensions, smooth and flat surface, and the anti-theft device and grounding device are welded;

The quality of copper core terminal blocks meets the national electrical industry standards;

The design wind speed of the street lamp is greater than 35m/s, and the seismic resistance is greater than level 8, ensuring that the entire street lamp can be used normally in bad weather.

Local breakdown voltage: ≥50KV; Maximum system voltage: ≥1000VDC;

Shell protection performance: Class II; Electric shock protection level: Class I; Protection performance: IP65;

BENEFITS

1.The complete set of components of the lamp is composed of impact-resistant high-pressure cast aluminum;

2.High-purity aluminum oxidation lamp shell, specially designed by computer, with smooth lines and even and full curves;

3.High-strength and high-temperature-resistant curved tempered glass, equipped with flexible silicon seal, sealing grade reaches IP65;

4.Cover opening method, equipped with safety stainless steel fastener;

5.Electrostatic spraying surface treatment process, resistant to ultraviolet radiation;

6  street lamp light has passed the 2G gravity acceleration three-dimensional mechanical vibration test of 100,000 times, and there are no application safety concerns;

7 The fasteners used in lamps are made of stainless steel;

8 The lamp adopts an integrated design, and the electrical cavity and light source cavity are separated; the electrical insulation level is: Level I.

The reflector is stretched and formed from high-purity aluminum. After anodizing and polishing, the reflectivity is required to be ≥80% and will not oxidize within ten years;

10 The light-transmitting part adopts a clear water glass cover with good light transmission, high strength, high temperature resistance and anti-glare;

11 The overall service life of the lamp is 20-30 years.

12 LED light source power ≥60W, single high-power chip ≥1W, drive current 350mA,

APPLICATION

Street Lights – SL9 series led street lamp are versatile and can be used in a variety of outdoor environments. Suitable for lighting residential streets, highways, parking lots, and sidewalks. The street light’s durable construction ensures it can withstand harsh weather conditions, ensuring a long-lasting lighting solution.
