Iinfrared emitting diode (IR LED), also known as infrared emitting diode, belongs to LED diode. It is an invisible light-emitting diode, which can directly convert electrical energy into near-infrared light (invisible light) and can radiate, power: 0.06w\0.25w\0.5w\1w\3w\5W\10\, etc.

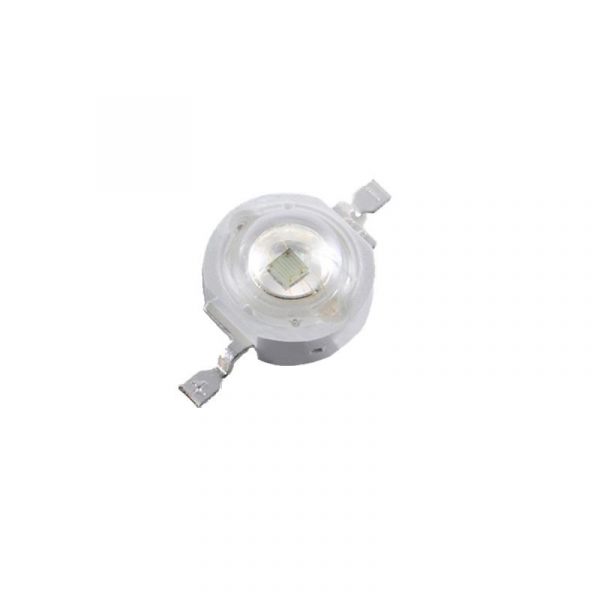

Package form: through-hole LED infrared, SMD infrared LED, high-power infrared LED

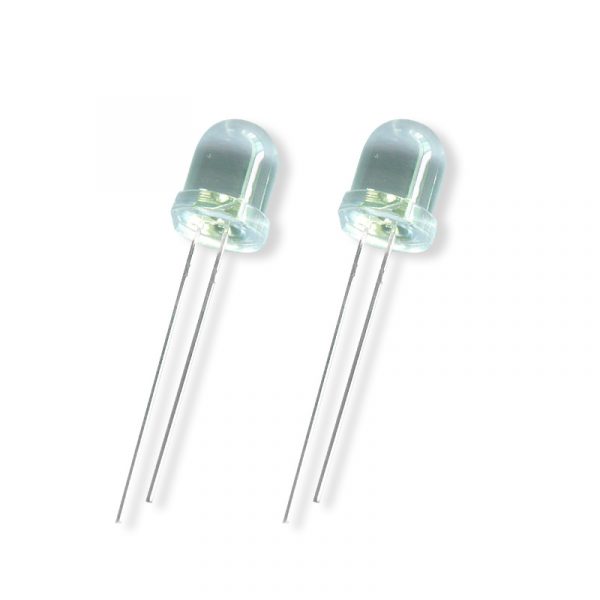

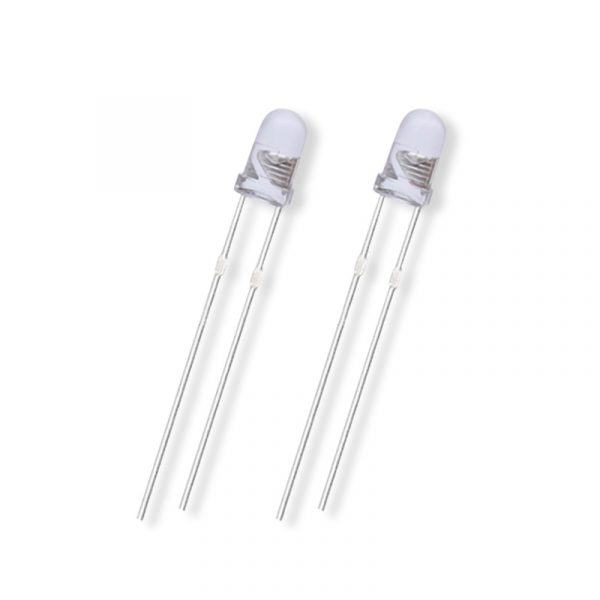

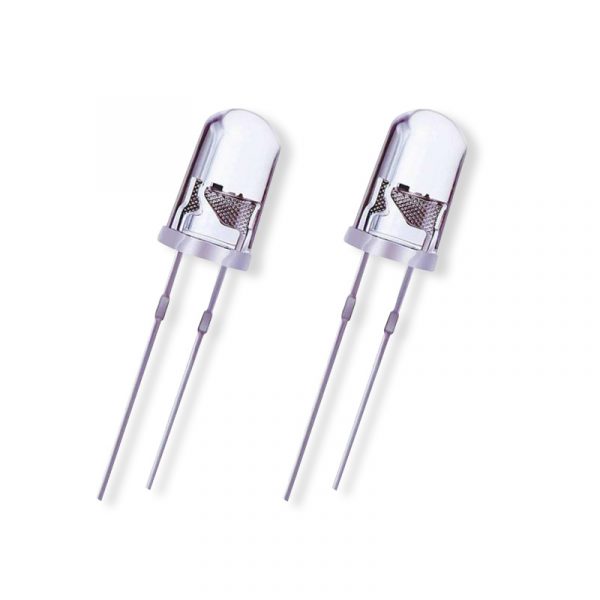

Through-hole LED infrared typical specifications: round DIP LED infrared diode 3mm, 5mm, 8mm, 10mm infrared diode

SMD LED infrared typical specifications:

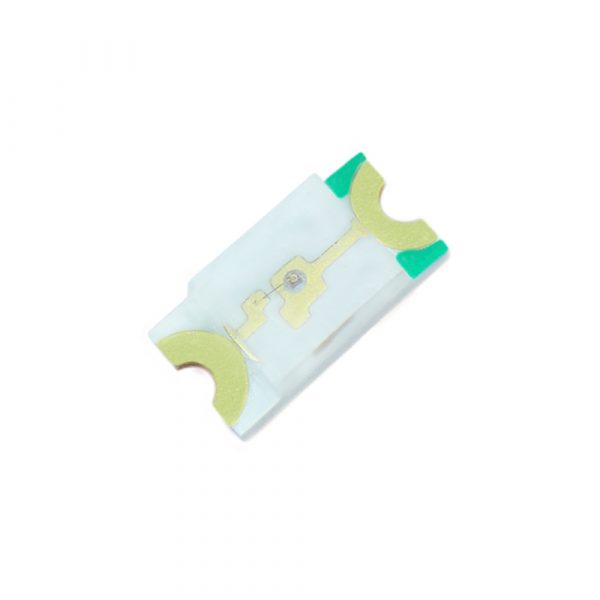

SMD infrared diode low power: 0402.0805.0603.3010.1206.

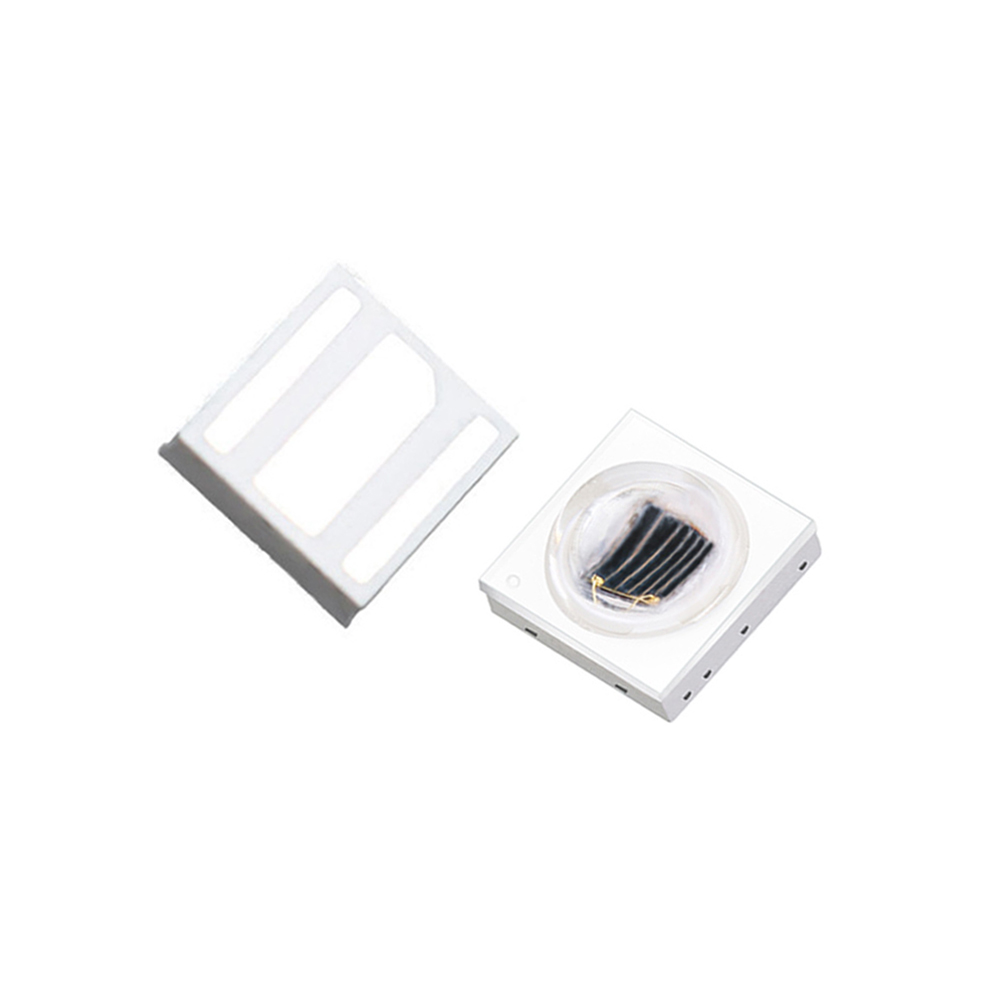

SMD infrared diode medium and high power 3528 LEDs 2835 LEDs 5050 LEDs 7070leds




wavelength: Wavelength: 940nm, suitable for remote controls, such as remote controls for household appliances. Wavelength: 850nm, suitable for digital photography, surveillance, building intercom, anti-theft alarm, infrared waterproof. Wavelength: 870nm, IRDA data transmission, monitoring, photoelectric interrupter, photoelectric switch, encoder, short-range infrared control application system, etc. Material: It consists of visible light LED chips, conductive materials, infrared packaging glue and leads. Among them, gallium arsenide (Gaas), gallium aluminum arsenide (Gaalas) and other materials; High temperature resistant USA glue, 99.99% pure gold wire welding, Bracket iron tin/silver plated;. application: Mainly used in various photoelectric switches, touch screens and remote control transmitter circuits. Infrared transmitters generate infrared light to transmit information and commands from one device to another. Typically, one device receives the signal and then transmits the infrared signal to another device through a transmitter. According to the characteristics of the infrared emission tube chip, it can be widely used according to different wavelengths,
