led street light ｜ SL3 series

led street light ｜SL3 series

OVERVIEW

led street light is a street light with modular structure design, up and down convection design between modules, led street lights with fast heat dissipation

PRODUCT

Product performance of Queendom led street light ｜ SL3 series  at test current, Tj=25°C Flux and Tj=85°C for R9 and CRI

Product No.

Power

LEDs

Core piece

Input Voltage

Effect  LM/W

Luminous flux

Color

(Ra)

PF

Power Efficiency

IP

View Angle

Weight

SIZE

Packing size

Part No.

QdSLSL31

50W

56

Philips SMD3030

AC85-265V

125lm/W

＞6250

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

3.5Kg

399*310*80mm

420*320*100mm

9405500000SL07

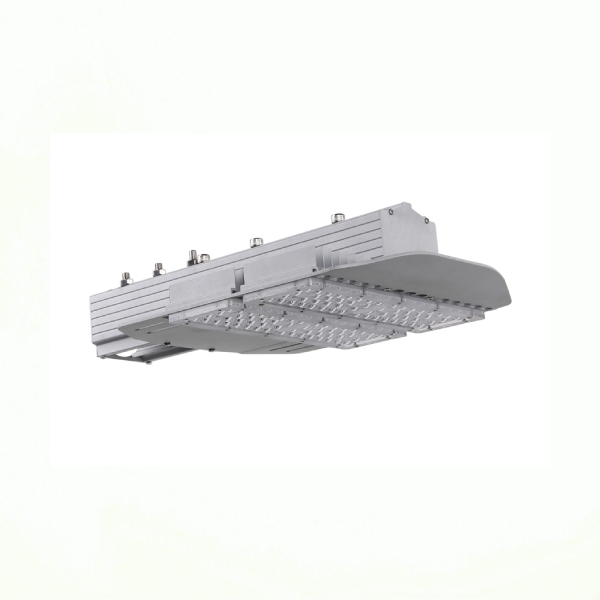

QdSLSL32

100W

112

Philips SMD3030

AC85-265V

125lm/W

＞7500

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

4.2Kg

425*305*65mm

540*370*160mm

9405500000SL08

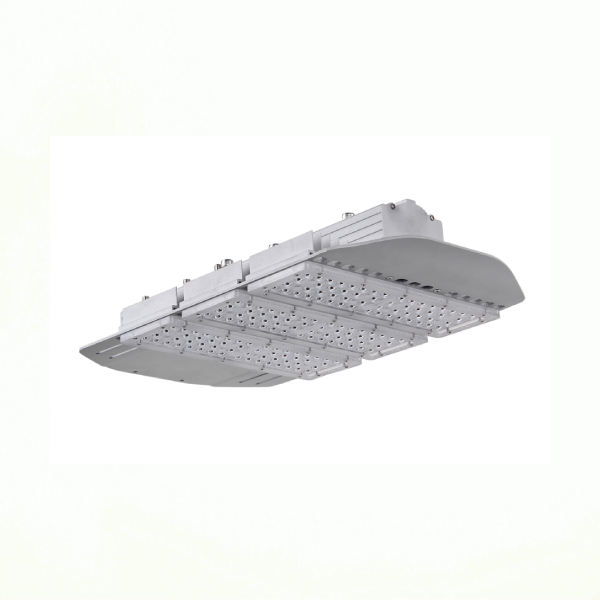

QdSLSL33

150W

168

Philips SMD3030

AC85-265V

125lm/W

＞15000

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

6.3Kg

568*305*65mm

720*370*160mm

9405500000SL09

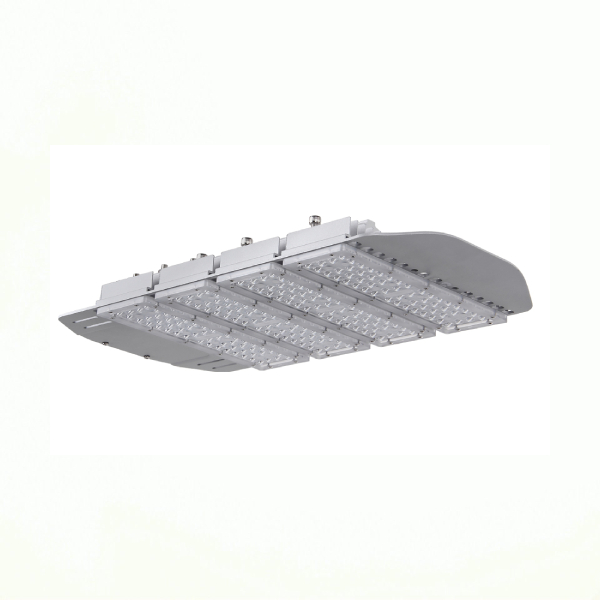

QdSLSL34

200W

224

Philips SMD3030

AC85-265V

125lm/W

＞22500

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

7.6Kg

690*310*80mm

710*320*100mm

9405500000SL10

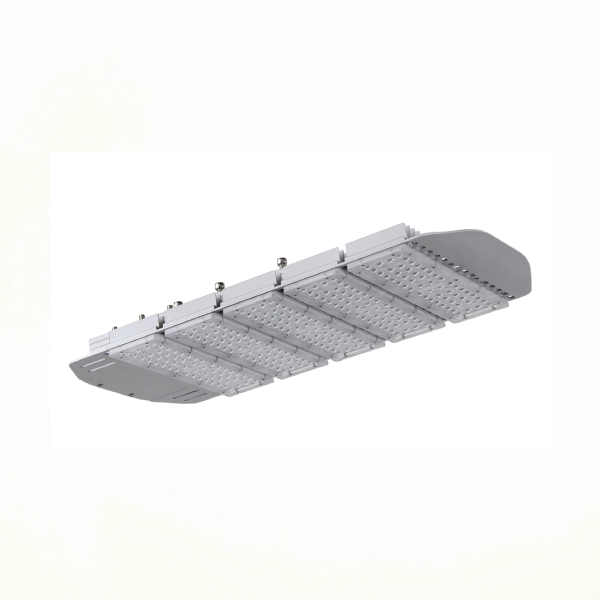

QdSLSL35

240W

280

Philips SMD3030

AC85-265V

125lm/W

＞30000

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

8.8Kg

787*310*80mm

810*320*100mm

9405500000SL11

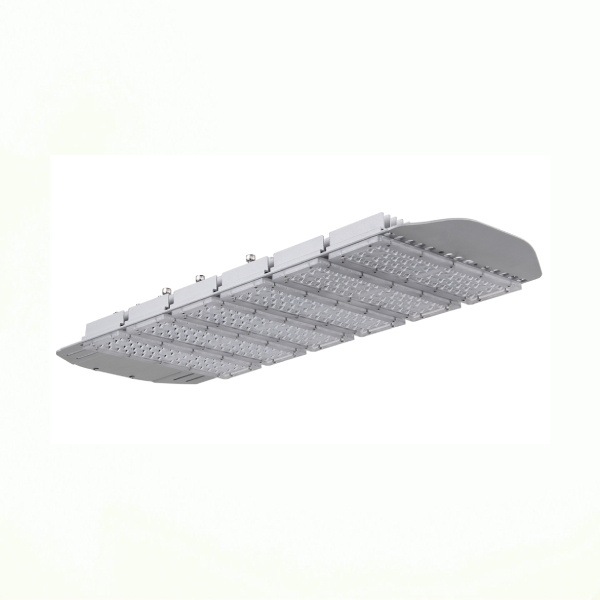

QdSLSL36

300W

336

Philips SMD3030

AC85-265V

125lm/W

＞37500

2700K-7000K

Ra≥80

PF≥98%

PF≥88%

IP65

120°/90°/Polarized

9.3Kg

884*310*80mm

910*320*100mm

9405500000SL12

FEATURES

led street light SL3 series has low energy consumption and long life.

The modular structure design of led street light SL3 series facilitates production and maintenance.

Heat dissipation method: The upper and lower convection design is implemented between the modules, and the heat dissipation speed is fast, which can ensure that the economic life of the light source is 50,000 hours long.

The power supply adopts a constant current design, with overvoltage, overtemperature, output short-circuit protection, and lightning protection module design.

No ultraviolet/infrared radiation, no mercury, lead and other heavy metals, green and environmentally friendly.

The light spot shape is bat-wing shape, using secondary optical light distribution design, with a light transmittance of up to 95%, strong UV resistance, and excellent stability for outdoor use.

The outer casing adopts a newly designed high-quality street light casing with a simple and fashionable appearance; anodized and electrostatically sprayed, it is corrosion-resistant and has good heat dissipation performance.

Protection level: IP65

The power of a single module can be 30~60W.

Working environment: -30~+50℃.

Warranty period: 3 years

BENEFITS

led street light SL3 series is exquisitely designed and crafted with elegant and solemn appearance.

led street light SL3 series uses Philips, Cree, and Lumileds original LED chips and internationally renowned brand drive power supplies, with long life and low light attenuation.

Multi-channel convection cooling technology and high heat dissipation module design ensure fast and even heat dissipation.

The independent electrical box and module are driven by waterproof quick interface plugs, which can be replaced on site for easy maintenance.

The patented double lightning protection design ensures the normal use of the lamp in severe weather conditions.

The installation design with adjustable elevation angle and multi-diameter lamp arm installation interface can adapt to various road modifications.

The lamp has strong illumination, good color rendering, soft light and excellent uniformity.

APPLICATION

Urban expressways, main roads, commercial district roads, industrial district roads.
