Optical Lenses

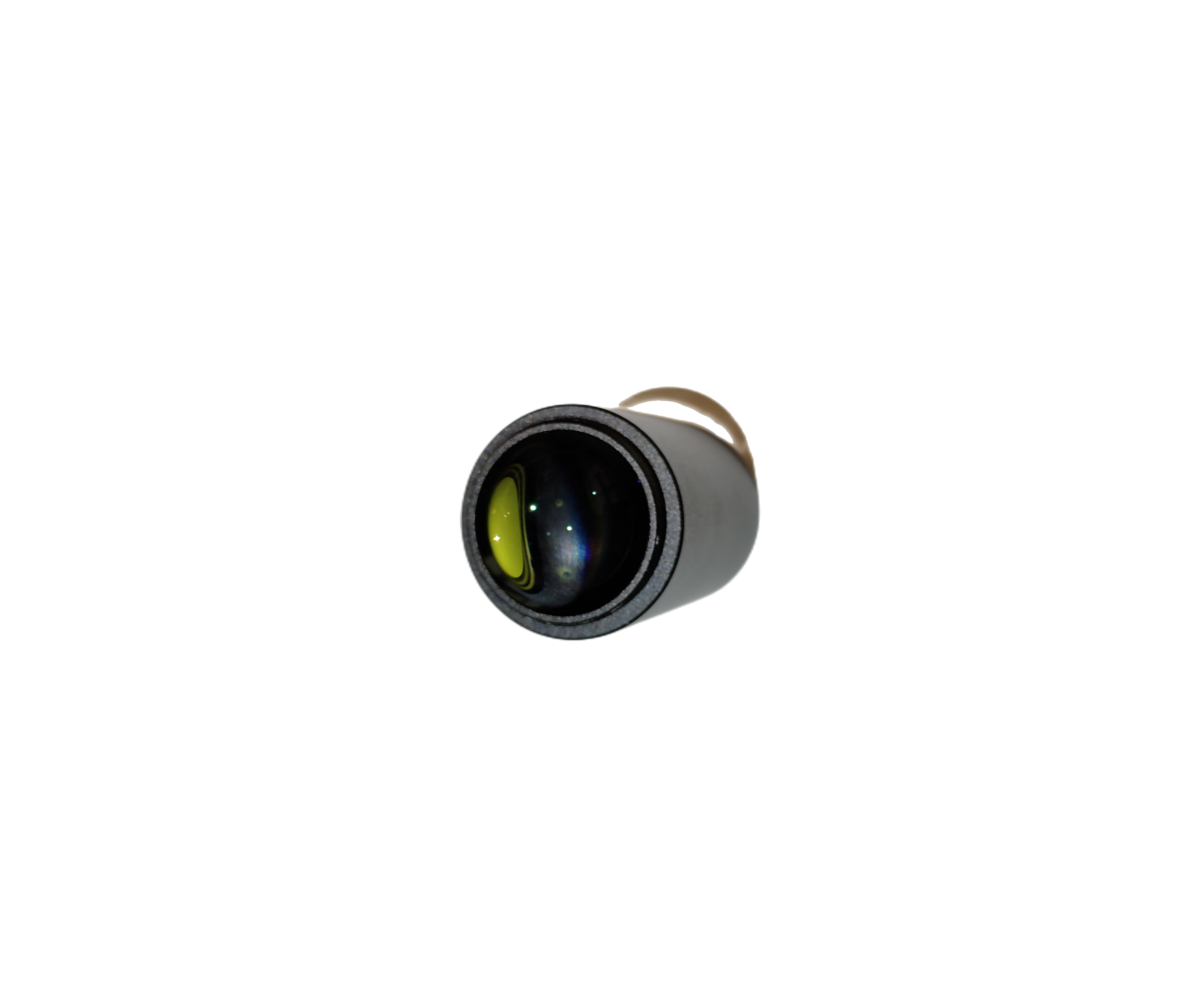

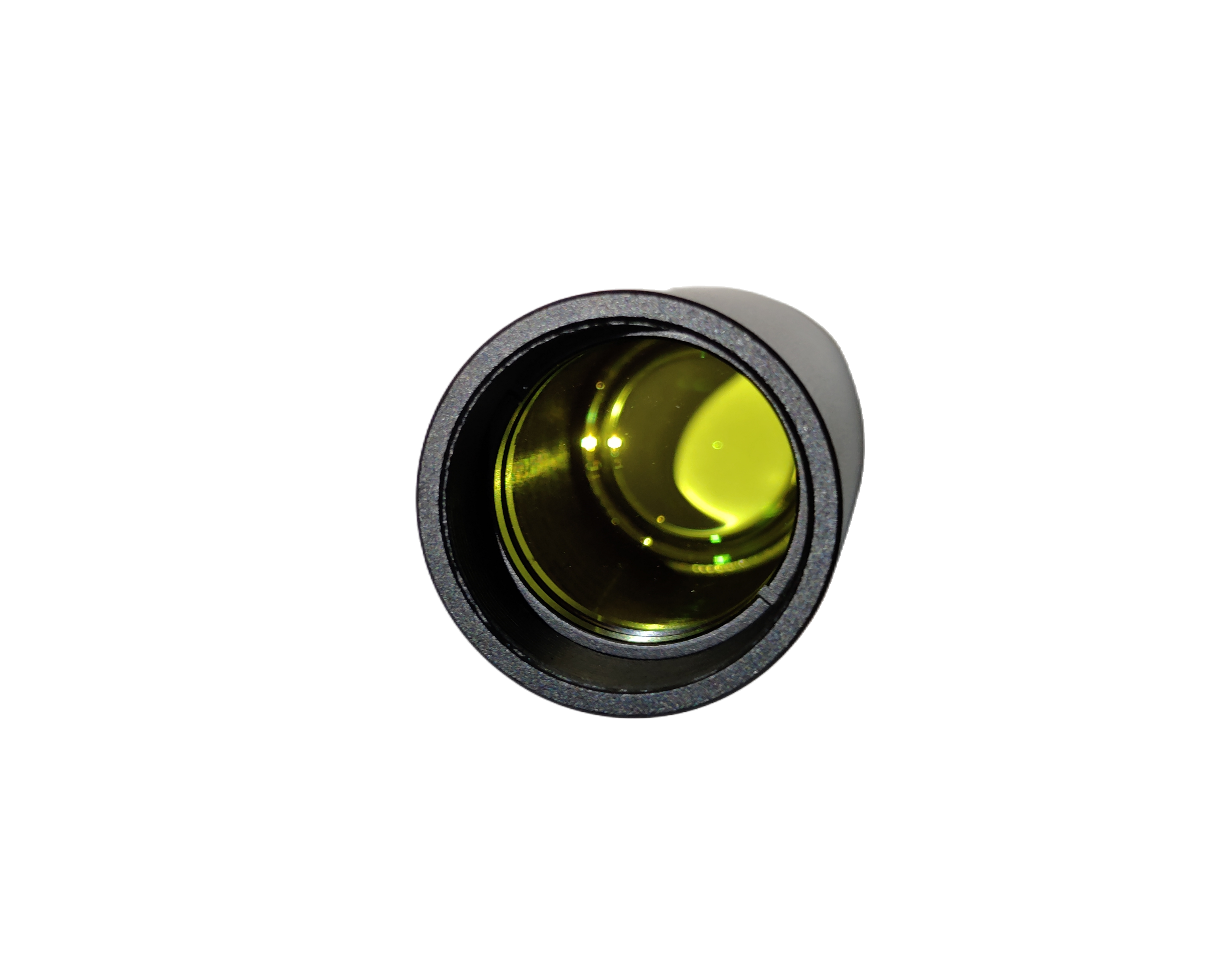

Ø1″, Ø2″ lens tubes;
Material: 6061-T6 aluminum alloy
Installation diameter: φ30/φ50mm optical element
Various lens tubes:
Internal and external threads at both ends, internal threads, external threads series
Adjustable length
Used for light path shading, the compatible snap ring wrench lens sleeve combination can be connected to extend the length, which is helpful for quickly building a compact optical system.

Category: optical instrument Tag: Optical Lenses

Description

Optical Lenses

OVERVIEW

Optical Lenses is an optical component that changes the direction of light, focuses it, or changes its shape. Optical lenses are widely used in various optical equipment and instruments.

Optical Lenses | PRODUCT

Product	SIZE	Mounting diameter	Socket length	optical thickness	surface treatment	thread	Part No.
QDF1SM8A	Ø1	φ25.4mm	8.0mm	6.0mm	black anodized	Internal and external thread	YLTGF01
QDF1SM8A1	Ø1	φ25.4mm	12.5 mm	10.5 mm	black anodized	Internal and external thread	YLTGF02
QDF1SM12.5A	Ø1	φ25.4mm	12.5 mm	10.5 mm	black anodized	Internal and external thread	YLTGF03
QDF1SM25A	Ø1	φ25.4mm	25 mm	23 mm	black anodized	Internal and external thread	YLTGF04
QDF1SM50A	Ø1	φ25.4mm	50 mm	48mm	black anodized	Internal and external thread	YLTGF05
QDF1SM50C2	Ø1	φ25.4mm	50 mm	48 mm	black anodized	Internal and external thread	YLTGF06
QDF1SM75A	Ø1	φ25.4mm	75 mm	73 mm	black anodized	Internal and external thread	YLTGF07
QDF1SM8B	Ø1	φ25.4mm	8.0 mm	4.0 mm	black anodized	internal thread	YLTGF08
QDF1SM12.5B	Ø1	φ25.4mm	12.5 mm	8.5 mm	black anodized	internal thread	YLTGF09
QDF1SM25B	Ø1	φ25.4mm	25 mm	21 mm	black anodized	internal thread	YLTGF10
QDF1SM50B	Ø1	φ25.4mm	50 mm	46 mm	black anodized	internal thread	YLTGF11
QDF1SM8C	Ø1	φ25.4mm	8.0 mm	23.5mm	black anodized	external thread	YLTGF12
QDF1SM12.5C	Ø1	φ25.4mm	12.5 mm	23.5mm	black anodized	external thread	YLTGF13
QDF1SM25C	Ø1	φ25.4mm	25 mm	23.5mm	black anodized	external thread	YLTGF14
QDF1SM50C	Ø1	φ25.4mm	50 mm	23.5mm	black anodized	external thread	YLTGF15
QDF2SM8A	Ø2	φ50.8mm	8.0mm	6.0 mm	black anodized	Internal and external thread	YLTGF16
QDF2SM25A	Ø2	φ50.8mm	25 mm	23.0 mm	black anodized	Internal and external thread	YLTGF17
QDF2SM25B	Ø2	φ50.8mm	25 mm	21.0 mm	black anodized	internal thread	YLTGF18
QDF2SM25C	Ø2	φ50.8mm	25 mm	48.3 mm	black anodized	external thread	YLTGF19

FEATURES

Optical Lenses | Material: 6061-T6 aluminum alloy

Mounting diameter: φ25.4mm optical element

A variety of lens tubes: F1SMxxA series with internal and external threads at both ends, F1SMxxB series with internal threads, and F1SMxxC series with external threads

Standard Ø2″ lens tubes are SM2 threaded to hold one or more Ø50.8 mm optics, or to shield the light path, and are compatible with 60mm cage systems. Optics are separated and secured using GYKH50A retaining rings, the position of which can be adjusted along the entire length of the lens tube with a compatible GYKH50A retaining ring wrench. The lens tube combination can be connected to extend the length, which is conducive to quickly building a compact optical system. Queendom also offers Ø1/2″ and Ø1″ Lens Tubes.

BENEFITS

Lens tube: Ø1 inch, Ø2 inch lens tube; used for optical path light shielding, compatible with snap ring wrench lens tube combination can be connected to extend the length, which is conducive to quickly build a compact optical system.
Material: 6061-T6 aluminum alloy
Installation diameter: φ50.8mm optical element
A variety of lens tubes: internal and external threads at both ends, internal threads, and external threads

APPLICATION

Optical instruments: Optical lenses play a key role in various optical instruments, such as microscopes, telescopes, cameras, and laser instruments. They focus light, making images clearer and magnified.

Optical communication: Optical fiber communication is an important part of modern communication systems. Optical lenses are used to adjust and focus the beam to ensure high quality and high rate of signal transmission.

Laser Applications: Lasers are a key technology in many scientific and industrial fields, such as medical, materials processing and measurement. Optical lenses are used in laser systems to focus and form specific beam shapes.

Optical Microscope: Optical lenses play an important role in microscopes, they allow the observer to see tiny objects and details with magnification and clarity. Microscopes are widely used in fields such as biology, medicine, materials science, and electrical engineering.

Optical Sensors: Optical lenses are used in many sensors, such as cameras, photodiodes, and spectrometers. They capture and process optical signals to enable a variety of measurement and inspection tasks.
