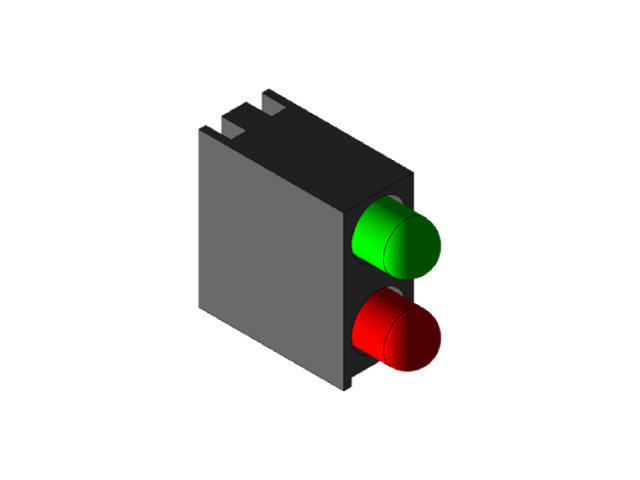

The image shows 3mm bi-level indicator LEDs of China QUEENDOM Company.

Bi-level-3mm

FEATURES
● Surface mount type
● High efficiency
● Low power consumption
● Versatile mounting on P.C. board or panel
● Moisture sensitivity level: 3
● RoHS compliant

Category: Circuit Board Indicator LED

Description

Product No.	Chip Material	Emitting Color	λp (nm) / x	λd (nm) / y	VF (V)	IF=mA	ΦV (lm)	Viewing Angle 2θ ½	Lens Color	Part No.
Qd-CBI3R12	AlGaInP	Super Bright Red	632	624	2-2.4	20	160-270	80	Red Diffused	8541401000TH11
Qd-CBI3O12	AlGaInP	Super Bright Orange	610	605	2-2.4	20	90-160	80	Orange Diffused	8541401000TH12
Qd-CBI3Y12	AlGaInP	Super Bright Yellow	592	590	2-2.4	20	90-160	80	Yellow Diffused	8541401000TH13
Qd-CBI3G12	AlGaInP/GaAs	Super Yellow Green	573	571	2-2.4	20	90-160	80	Green Diffused	8541401000TH14
Qd-CBI3B12	InGaN	Blue	468	470	3.2-3.6	20	460-780	60	Blue Diffused	8541401000TH15
