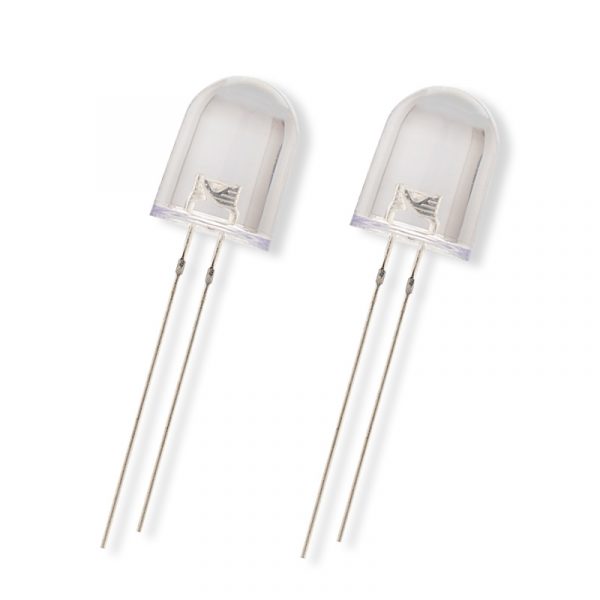

8mm uv led

Size: 7.8mm×11mm
Chip material: GaN
Luminous color: 365nm/395nm
Lighting angle: 30±5°
Colloid color: clear water
Pin length: (26.5/16.5mm)
RoHS compliant
temperature: -40-+ 85

Category: UV LED Tags: 8mm LED, UV LED diodes

Description

8mm uv led

OVERVIEW

8mm UV LED diode is a common purple diode with an outer diameter of 7.8mm×11mm ,Queendom 8mm UV LED specifications are: 8mm UVA LED, 8mm UVB LED;

PERFORMANCE

Table 1 Absolute maximum ratings for QUEENDOM UV LED Color Line

Ø Absolute Maximum Rating (At TA=25°C)	Symbol	Ratings	Units
Parameter	PD	60 \| 200	mW
Continuous Forward Current	I_F	20 \| 60	mA
Peak Forward Current ＊1	I_FP	100	mA
Reverse Voltage	V_R	5	V
Thermal Resistance Junction To Board	RΘ_J-B	/	°C/W
Operating Temperature Range	T_OPR	Minus 30°C To plus 60°C
Storage Temperature Range	T_STG	Minus 40°C To plus 80°C
Manual Solding Temperature	T_SOL	260°C± 10°C For 3~5 Seconds
ESD Sensitivity	ESD	2000V HBM

PRODUCT

Table 2 Product performance of QUEENDOM uv led Colors at 20mA and 60mA , Tj=25ºC

Product No.	Power/W	Wavelenght(nm)	IF(mA) TEST	Φe(MCD/LM)	CRI	VF (V) Typ.	Reverse current	deg 2Ө 1/2	Lens Type	Part No.
Qd-B8V302C	0.06	365/385	20	/	/	3.0-3.4V	<10	25±3°	Clear	8541401000UVTH13
Qd-B8V302C	0.06	395/405	20	/	/	3.0-3.4V	<10	25±3°	Clear	8541401000UVTH14
Qd-B8V302C	0.2	365/385	60	/	/	3.0-3.4V	<10	25±3°	Clear	8541401000UVTH15
Qd-B8V302C	0.2	395/405	60	/	/	3.0-3.4V	<10	25±3°	Clear	8541401000UVTH16

FEATURES

8mm UVA LEDs parameters:

Wavelength: 390-410nm,Working current: 20mA-150mA

8mm UVB LEDs parameters:Wavelength: 350-380nm ,Working current: 20mA-150mA

8mm UV LED The wavelength of ultraviolet light emitted diodes can be customized according to your requirements. Through hole UV LEDs have wavelengths of

UVB LED: 365nm-370nm /375-380nm

UVA LEDs: 385-390nm/400-405nm/410-415nm, etc.

BENEFITS

The use of 8mm UV LED diodes can also be extended to other fields. In scientific research, it is used in ultraviolet detection instruments, such as ultraviolet-visible spectrophotometer and ultraviolet fluorescence spectrometer. At the same time, ultraviolet diodes can also be used for anti-counterfeiting detection of banknotes and documents, as well as identification of ores and gemstones.

APPLICATION

8mm UV LED diodes are widely used in ultraviolet lamps, germicidal lamps, ultraviolet detection instruments and other fields. 8mm UV LED is a widely used LED light in the fields of ultraviolet lighting, curing, inspection and printing, which can emit ultraviolet light and has unique uses and safety precautions.

PRECAUTIONS

It should be noted that when using 8mm UV LED diodes, care should be taken to avoid direct exposure to ultraviolet light, so as not to cause damage to eyes and skin. In addition, correct operating procedures should be followed to ensure safety

In a word, 8mm UV LED diode is a light-emitting diode with a wide range of applications, which can exert its ultraviolet characteristics in many fields. Used under suitable conditions, it can bring convenience and benefits to our life and work.

Choose our UV LED, we can provide you with the most suitable UV LED light emitting diode. You will have a high-quality UV light source with stable performance and long life. You are welcome to contact us, we will provide you with professional technical support and high-quality products.
