3030 led | 3030 led chips | 3030 led package

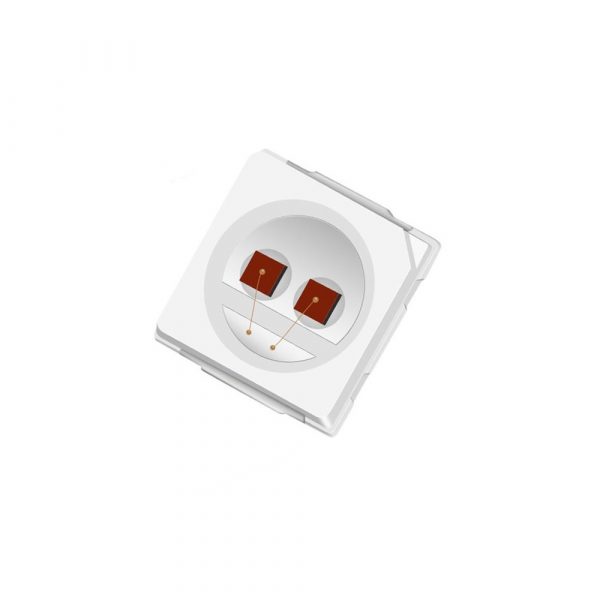

The image shows 3030 Plcc LEDs of China QUEENDOM Company.

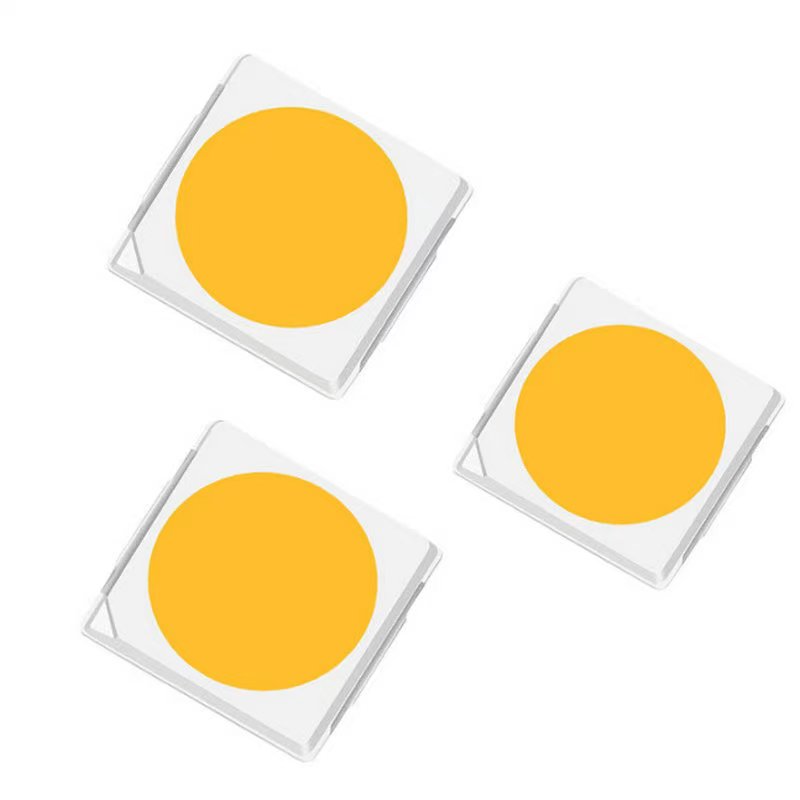

3030 led

Dimensions: 3.0mm x 3.0mm

Power: 0.2W-1W

Voltage: 1.8-3.6v

Current: 20mA-300MA

Efficiency: 80-130lm/W

Lighting angle: 120°

Color: red, orange, yellow, green, blue, purple

CCT: 2200K-50000K etc.

RoHS EN62471 REACH

Category: Top-Emitting PLCC SMD LED Tag: smd led

Description

3030 led

OVERVIEW

3030 LED is a high-brightness LED product whose material is mainly composed of high-purity EMC semiconductor materials. It has a compact size and is suitable for use in a variety of compact spaces. 3030 LED has excellent durability and stability, can work stably for a long time, and is not susceptible to external interference.

PERFORMANCE

Parameter	Symbol	Rating	Units
Continuous Forward Current	IF	30 \| 60 \| 150 \|300	mA
Peak Forward Current	IFP	180 \| 350	mA
Reverse Voltage	VR	5	V
Operating Temperature	Topr	-40 ~ +85	℃
Storage Temperature	Tstg	-40 ~ +85	℃
Soldering Temperature	Tsol	260	℃
Power Dissipation at(or below) 25℃Free Air Temperature	Pd	100	mW

PRODUCT

Product No.	Emitted Color	Power/W	Wavelenght(nm)	IF(mA) TEST	Φe(MCD/LM)	CRI	VF (V) Typ.	Reverse current	deg 2Ө 1/2	Lens Type	Part No.
S3030R3DB	12	0.2	620-630	60	460-600	/	1.8-2.3	<10ua	120	Clear	8541401000SL94
S3030Y3DB	12	0.2	585-595	60	400-580	/	1.8-2.3	<10ua	120	Clear	8541401000SL95
S3030G3DB	12	0.2	515-530	60	800-1250	/	2.8-3.4	<10ua	120	Clear	8541401000SL96
S3030B3DB	12	0.2	460-470	60	200-500	/	2.8-3.4	<10ua	120	Clear	8541401000SL97
S3030W2DB-A	Warm White	0.2	2500-4000	60	15-30	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL98
S3030W2DB-C	Positive white	0.2	5000-8000	60	15-30	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL99
S3030W2DB-D	Cool white	0.2	9000-20000	60	15-30	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL100
S3030R3DC	12	0.5	620-630	150	15-25	/	1.8-2.3	<10ua	120	Clear	8541401000SL101
S3030Y3DC	12	0.5	585-595	150	13-23	/	1.8-2.3	<10ua	120	Clear	8541401000SL102
S3030G3DC	12	0.5	515-530	150	35-50	/	2.8-3.4	<10ua	120	Clear	8541401000SL103
S3030B3DC	12	0.5	460-470	150	7-14	/	2.8-3.4	<10ua	120	Clear	8541401000SL104
S3030W2DC-A	Warm White	0.5	2500-4000	150	50-70	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL105
S3030W2DC-C	Positive white	0.5	5000-8000	150	45-60	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL106
S3030W2DC-D	Cool white	0.5	9000-20000	150	35-55	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL107
S3030R3DC	12	1	620-630	300	15-30	/	1.8-2.3	<10ua	120	Clear	8541401000SL108
S3030Y3DC	12	1	585-595	300	40-50	/	1.8-2.3	<10ua	120	Clear	8541401000SL109
S3030G3DC	12	1	515-530	300	80-120	/	2.8-3.4	<10ua	120	Clear	8541401000SL110
S3030B3DC	12	1	460-470	300	15-25	/	2.8-3.4	<10ua	120	Clear	8541401000SL111
S3030W2DC-A	Warm White	1	2500-4000	300	120-230	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL112
S3030W2DC-C	Positive white	1	5000-8000	300	120-230	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL113
S3030W2DC-D	Cool white	1	9000-20000	300	120-230	>Ra80	2.8-3.4	<10ua	120	Clear	8541401000SL114

FEATURES

Packaging form: SMD packaging

Main chips: CREE, Osram, Epistar, Sanan

Chip range: Size is 8*8mi -30*30 mil (commonly used are 8*8mi 9*9mil 10*10mil 10*20mil 10*30mil 14*28mil)

Power factor: 0.2-1w

Gold plate material: EMC bracket + high temperature resin silicone

Light-emitting method: single-color light-emitting, double-color light-emitting, RGB three-color, etc.

Colloid color: transparent/yellow matte

Packaging method: 3K, etc.

BENEFITS

High light efficiency, anti-high temperature, anti-dead light, anti-static

Low energy consumption and high performance

Compatible with automatic placement equipment

Compatible with infrared and vapor phase reflow soldering processes

APPLICATION

Backlight module ● Automotive interior ● High-end digital

Signal indication ● Smart home ● Industrial equipment

3030 led

3030 led

3030 led

OVERVIEW

PERFORMANCE

PRODUCT

FEATURES

BENEFITS

APPLICATION
