LED CORN LIGHT

LED TYPE: SMD LED
MATERIAL: ALUMINUM
POWER : 20W–300W
VOLTAGE: AC 85–270V, 50/60HZ
EFFICIENCY: 120–150 LM/W
POWER FACTOR (PF): >0.9
CRI: 80↑
(CCT): 3000K / 4000K / 5000K / 6500K
ANGLE: 360°
OPERATING TEMPERATURE: -40℃ ~ +55℃
LIFESPAN: ≥50,000 HOURS

Description

LED CORN LIGHT

OVERVIEW

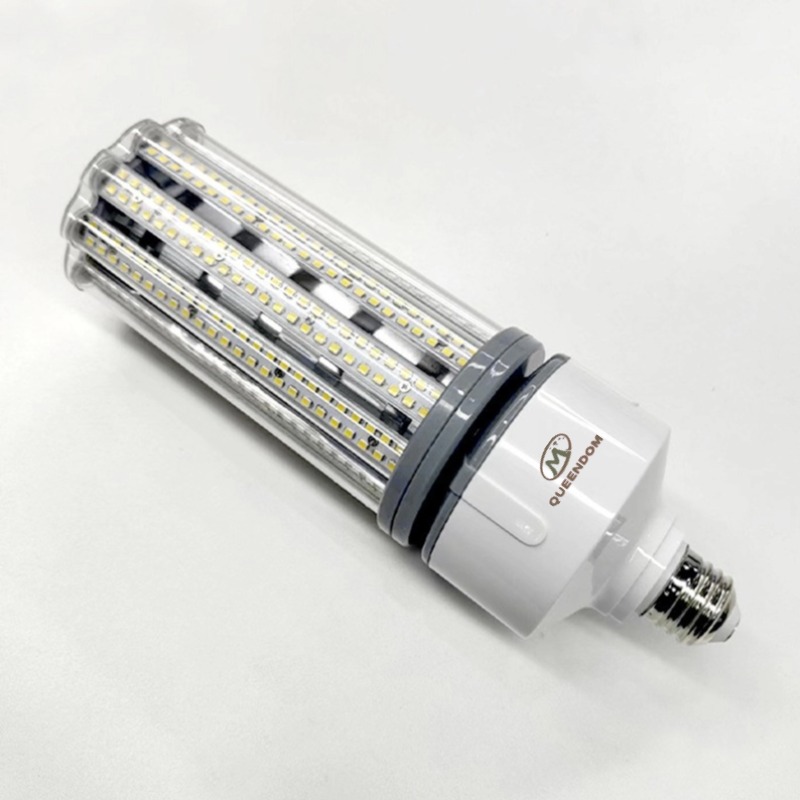

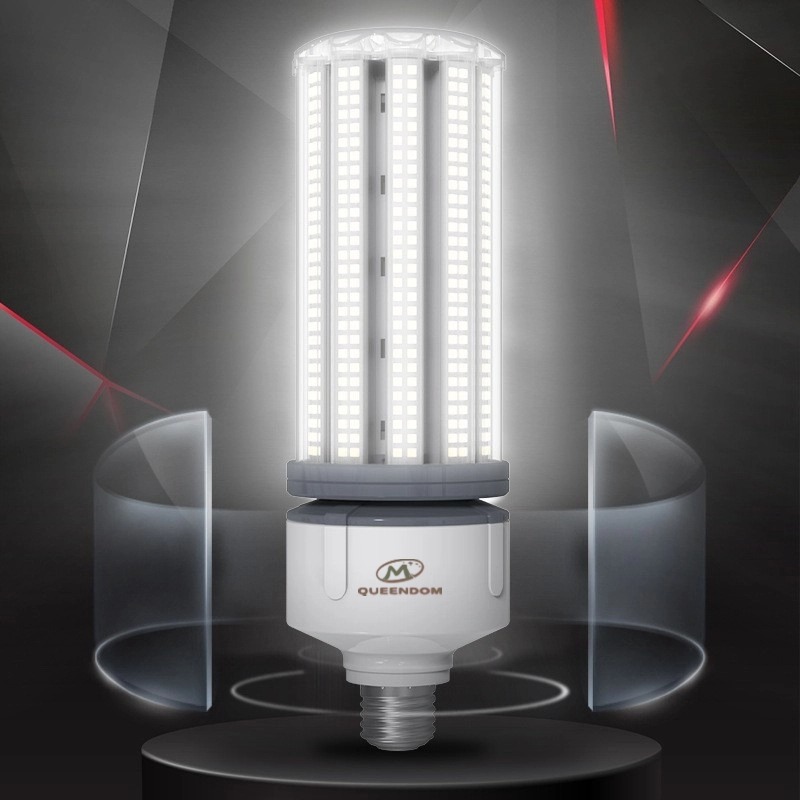

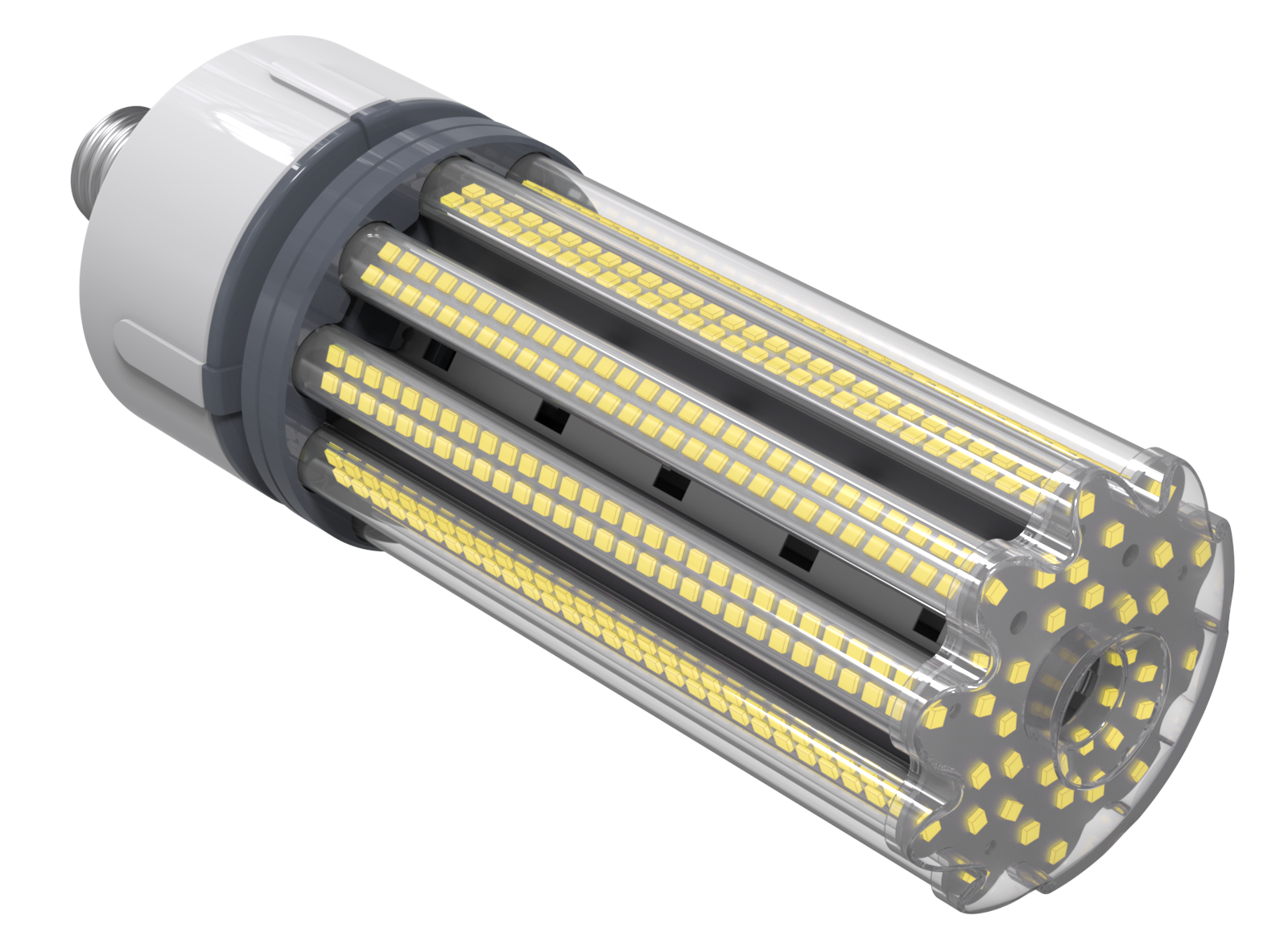

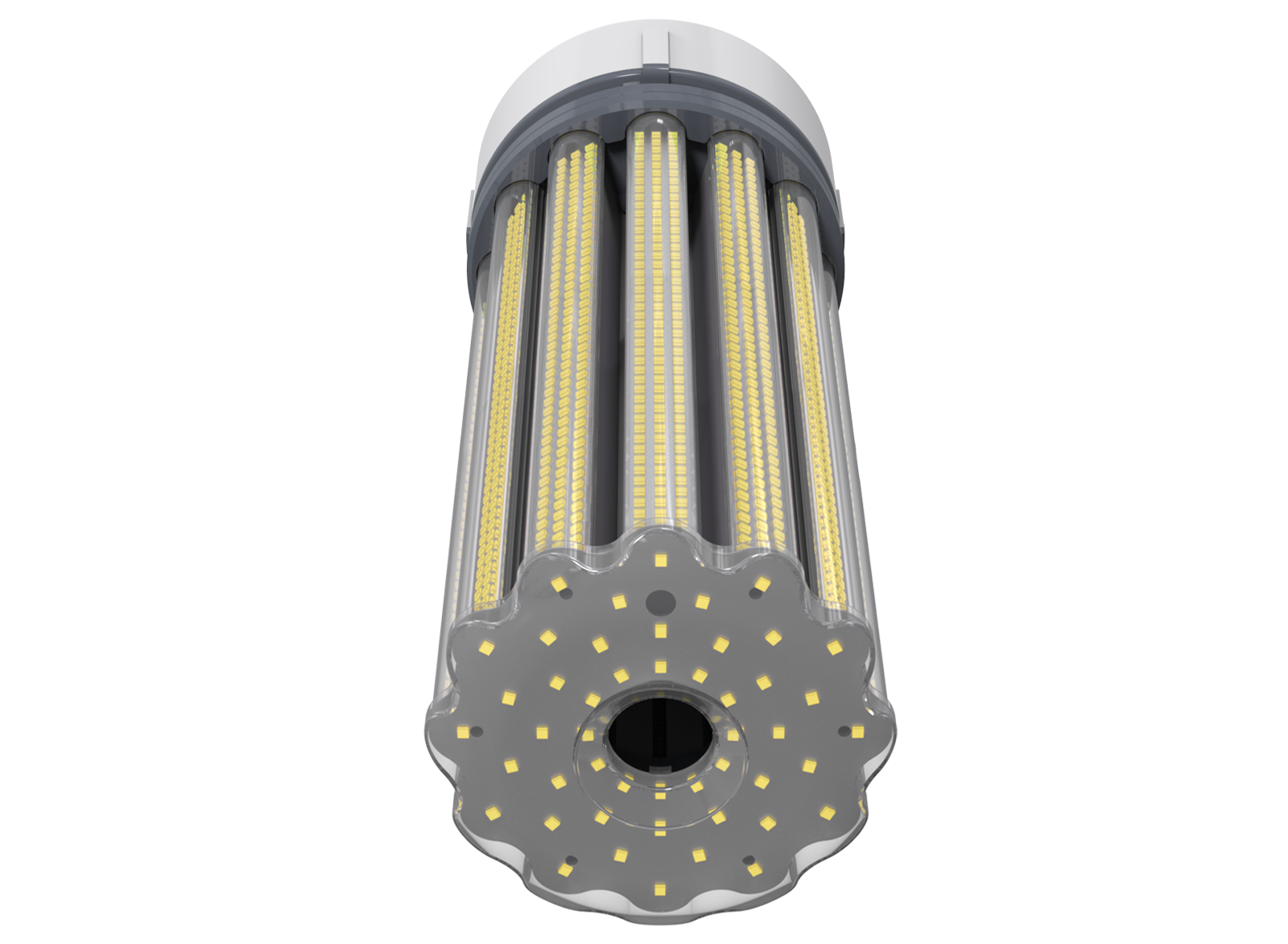

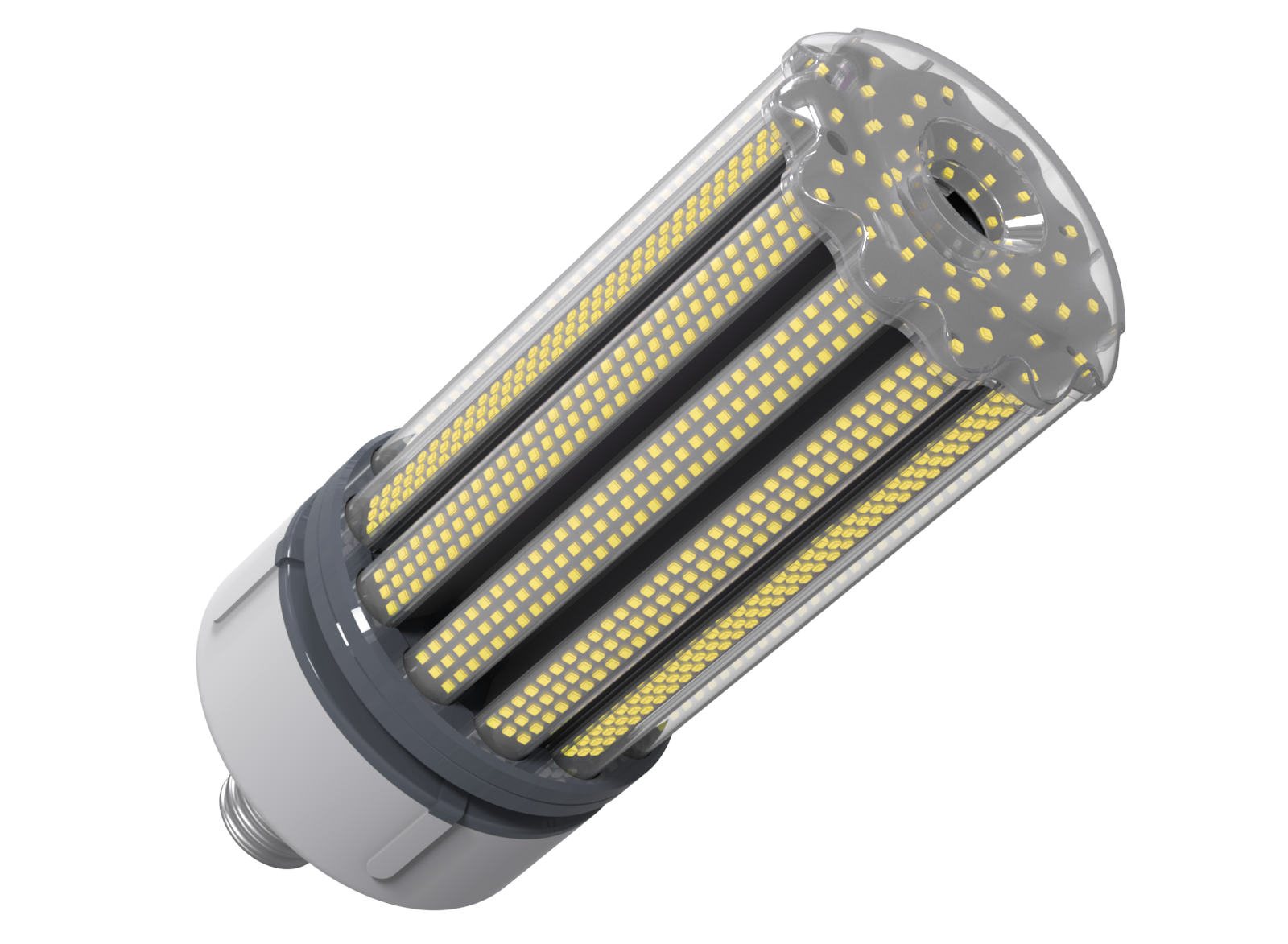

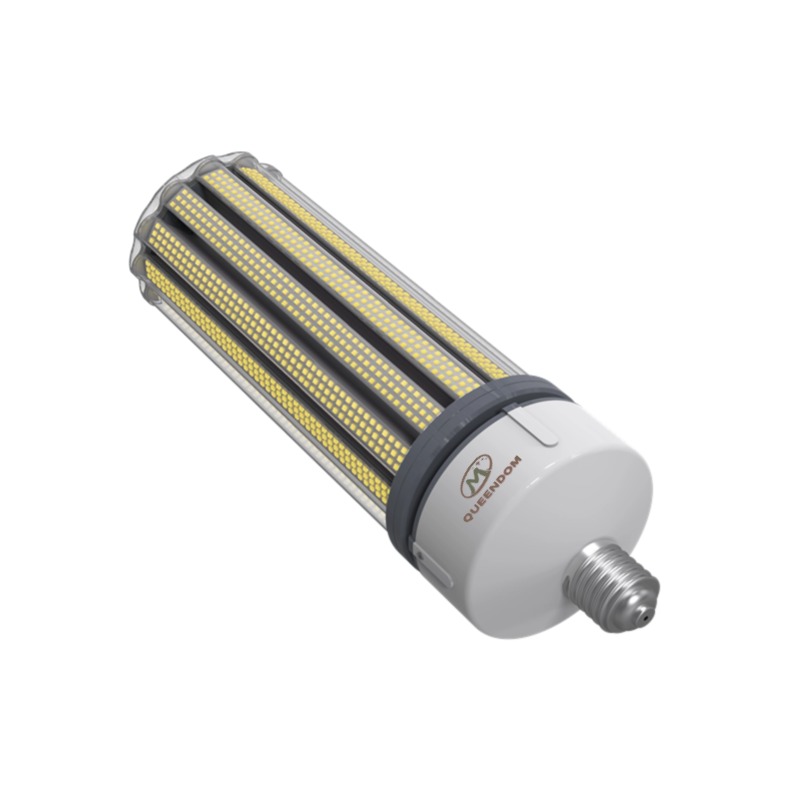

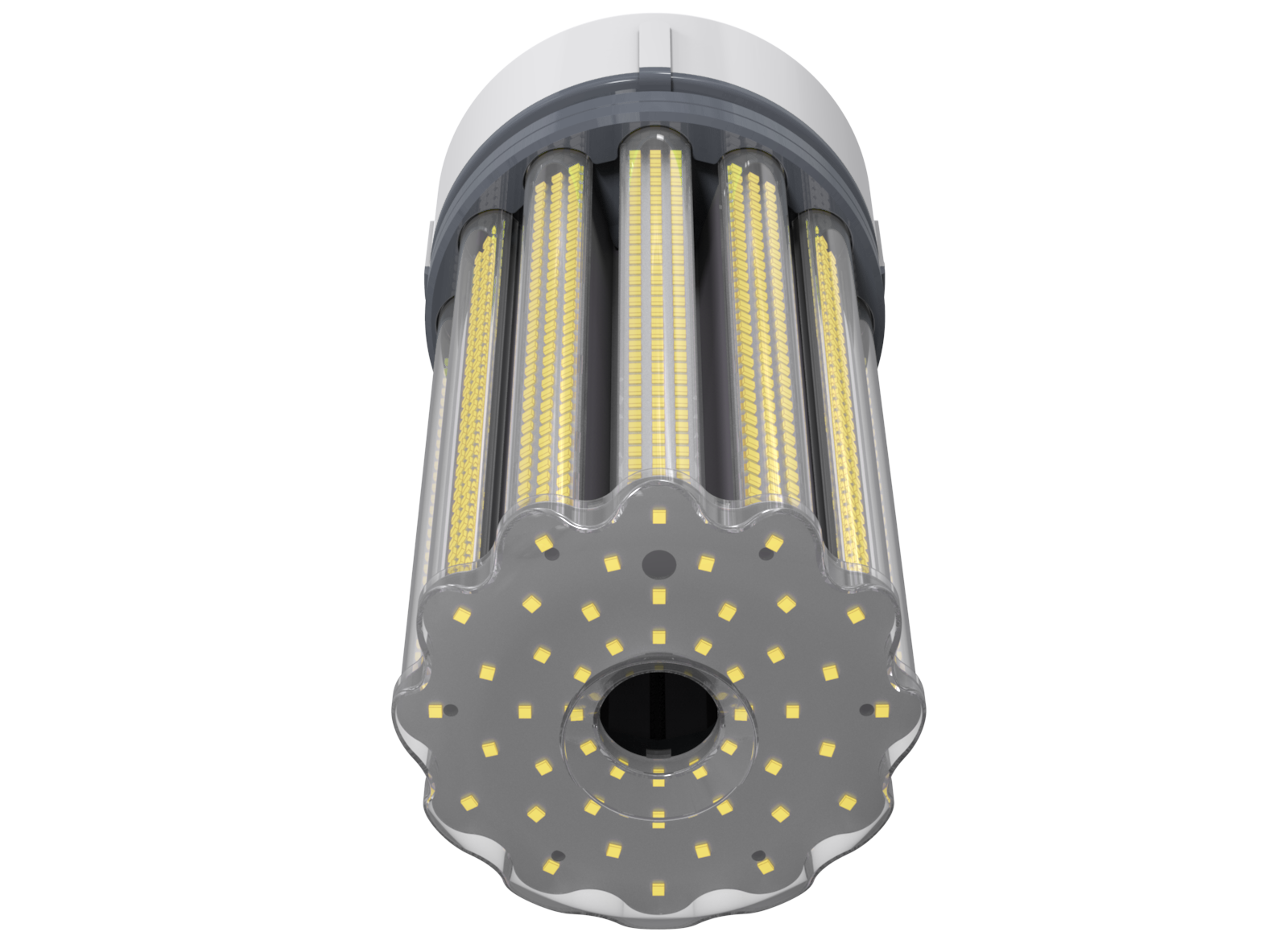

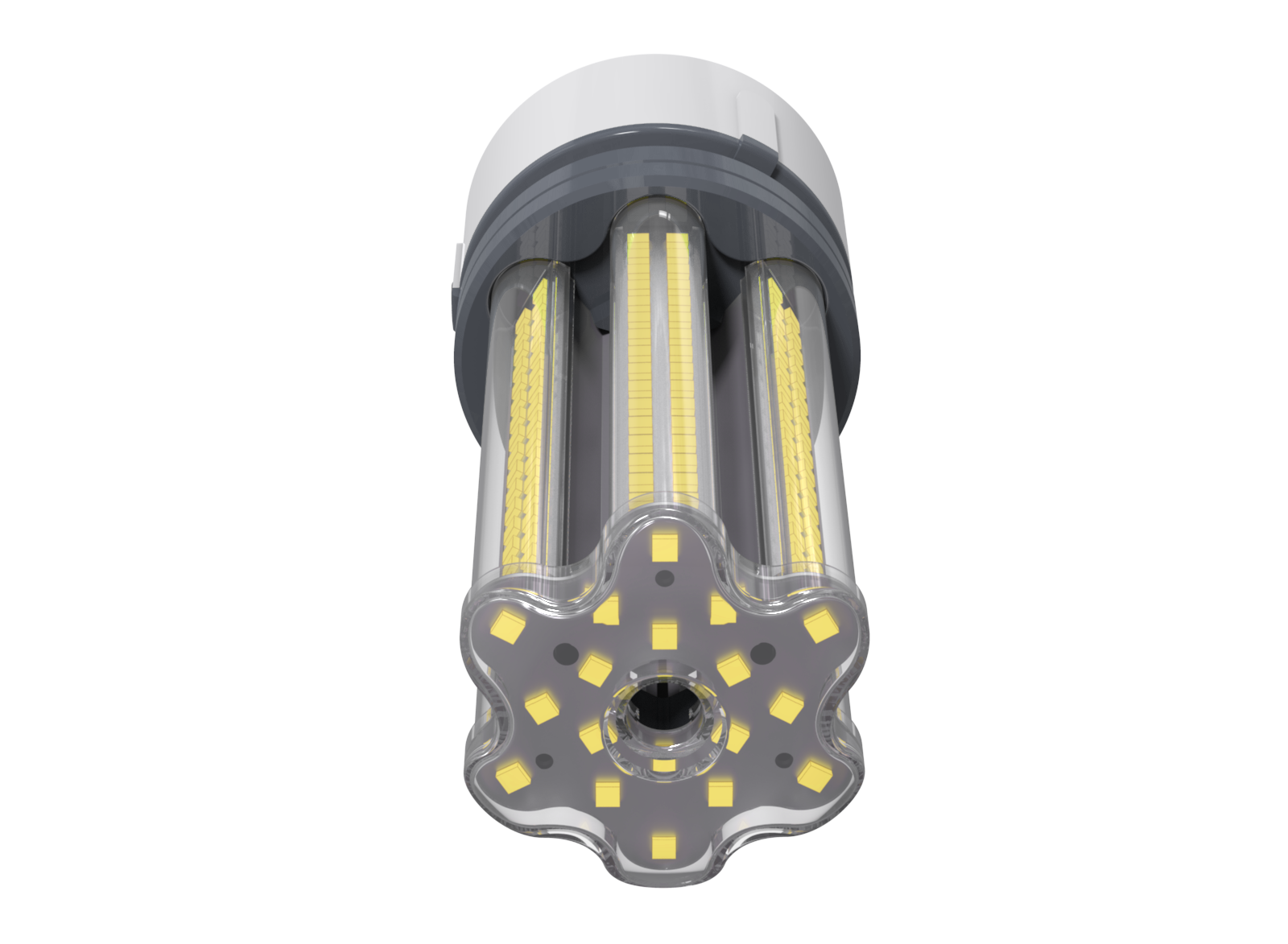

LED Corn Light with Cover 20W–300W | High Brightness Energy-Saving Retrofit Lamp

The LED Corn Light is designed as an energy-efficient replacement for traditional HID, HPS, and MH lamps. With a wide power range from 20W to 300W, advanced heat-dissipation fins, and a protective cover, it ensures high brightness, long lifespan, and stable performance. Ideal for both indoor and outdoor lighting projects.

PRODUCT

SPECIFICATIONS WITH APPROVED DRIVER(AC POWERED)
METRIC	BCL01	BCL02	BCL03	BCL04	BCL05	BCL06	BCL07	BCL08
AC VOLTAGE & FREQUENCY: (VAC)	AC 110-275V & 50/60Hz
AC DERATED POWER – TYPICAL (W)	30	60	80	100	150	200	250	300
AC CURRENT (TYP)(MA)
AC CURRENT (TYP)	AC 110-275 V
POWER FACTOR	>0.95
WORKING TEMPERATURE	-40℉ – 113℉
DRIVER LIFETIME	>50,000 hrs
PHOTOELECTRIC PROPERTIES
WAVELENGTH [1] (nm)	3000K/4500K/5700K/6000K
INTENSITY FLUX (lm)	4500	9000	12000	15000	21750	29000	33750	40500
CRI	90+	90+	90+	90+	90+	90+	90+	90+
EFFECT (LM/W)	150	150	150	150	145	145	135	135
TYPICAL SPECTRAL HALF-WIDTH(K)	200	200	200	200	200	200	200	200
PRODUCT PERFORMANCE
PRODUCT SIZE & HEIGHT(mm)	186	270	270	320	360	360	360	360
PRODUCT SIZE &DIAMETER(mm)	59	82	82	133	133	133	133	133
DEG	360
BASE	E26/E27/E39/E40
HOUSING COLOR	GRAY AND WHITE
PART NUMBER	9405500000B3
DRIVER STANDARDS	ETL、CETL、DLC、CE

FEATURES

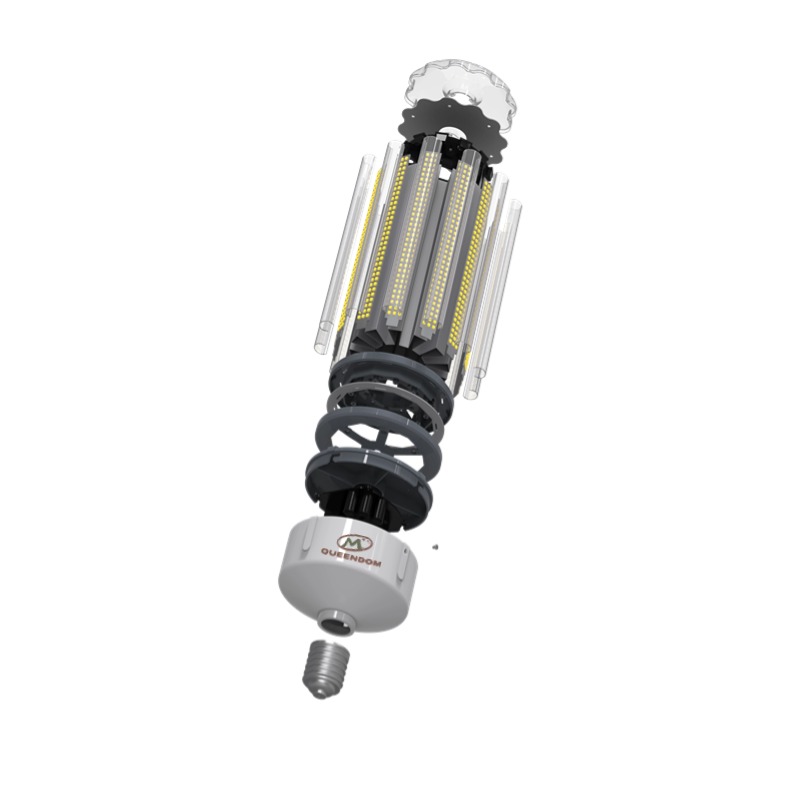

Unique aluminum fin design for excellent heat dissipation
Transparent or frosted cover for anti-glare, uniform light distribution
Wide power range: 20W–300W to meet diverse lighting requirements
360° beam angle for maximum illumination coverage
High luminous efficacy with low energy consumption
Long lifespan, stable performance, easy retrofit for traditional HID lamps
Environmentally friendly, mercury-free, instant start with no flicker

APPLICATION

Warehouse and factory lighting
Supermarkets, shopping malls, exhibition halls
Street lighting retrofit (HID/HPS/MH lamp replacement)
Parking lots and outdoor area lighting
High ceiling industrial lighting
Public buildings and gymnasiums

Why Choose Our LED Corn Light?
Our LED Corn Lamps are trusted by global customers for their durability, high performance, and cost-effectiveness. Whether for retrofit projects or new installations, they provide a reliable and sustainable lighting solution.
👉 Contact us today for bulk orders, OEM/ODM services, and competitive pricing!
