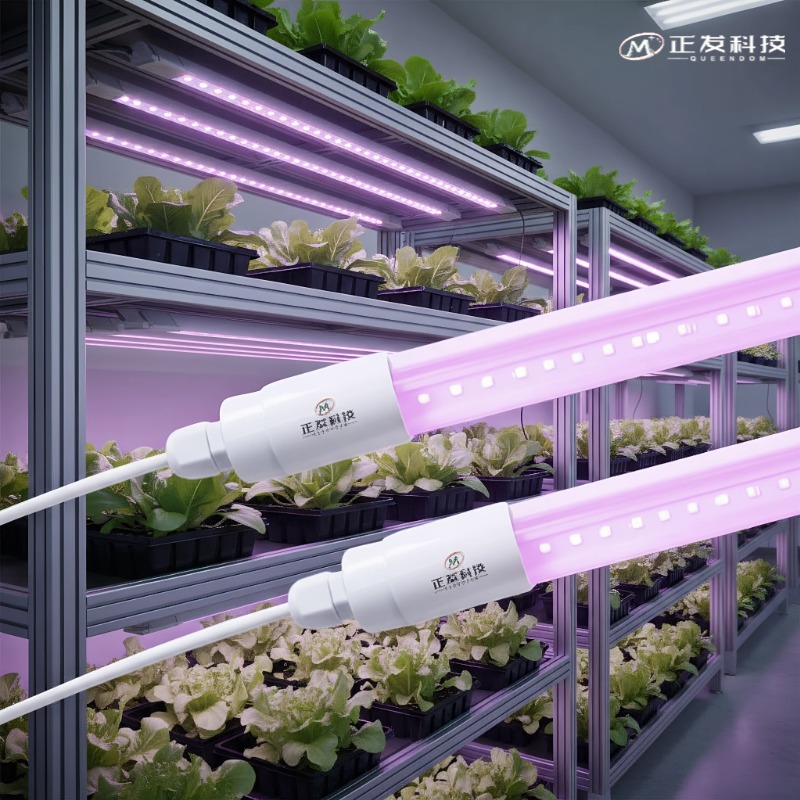

T8 LED Grow Tubes

T8 LED Grow Tubes

OVERVIEW

Queendom T8 LED grow lights are energy-efficient, waterproof horticultural tubes designed for indoor gardening, greenhouses, and vertical farms. Available in multiple power options (9W–65W) and spectral ratios, they deliver targeted light from seedling to flowering stages with high photon efficacy up to 2.7 µmol/J

PRODUCT ELECTRICAL INDEX

Specifications with Approved Driver(AC Powered)
Metric	2FT	3FT	4FT	5FT	6FT
AC Voltage & Frequency: (VAC)	AC:85-165V/165-230V & 50/60Hz
AC Derated Power – Typical (W)	9	13	18	24	36
Power Factor	>95	>95	>95	>95	>95
Dimmable	Optional 0-10V, PWM
Power Factor	0.95	0.95	0.95	0.95	0.95
Driver Lifetime	50 000h (L90>36 000h)
Photoelectric properties
WAVELENGTH [1] (nm)	370-730NM	370-730NM	370-730NM	370-730NM	370-730NM
Photosynthetic Photon Flux: PPF (µmol/s)	24	35	49	65	97
Efficacy – AC derated PPE. (µmol/Joule)	2.7	2.7	2.7	2.7	2.7
Photon Efficacy: PEPBAR. (µmol/Joule)	3.02	3.02	3.02	3.02	3.02
TYPICAL SPECTRAL HALF-WIDTH [1]   (nm)	10	10	10	10	10
Product performance
SIZE	600*26MM	900*26MM	1200*26MM	1500*26MM	2400*26MM
DEG	200	200	200	200	200
BASE	PG7	PG7	PG7	PG7	PG7
Implementation standards	UL 8800 / EN 62471/RoHS）

PRODUCT SKU

PRODUCT	RANK NO.	SIZE	POWER	VOLTAGE	TYPICAL (nm)		SPECTRAL  RITIO（%)		PPF/µmol/s/s	PPF/W (μmol/J)
		(mm)	(W)	(VF/V)	MIN	MAX	RED	BULE
PGT809RB	PGT011	598*26mm	9	85-230	450	660	60%	40%	24	2.7
PGT813RB	PGT012	898*26mm	13	85-230	450	660	60%	40%	35	2.7
PGT818RB	PGT013	1198*26mm	18	85-230	450	660	60%	40%	49	2.7
PGT824RB	PGT014	1498*26mm	24	85-230	450	660	60%	40%	65	2.7
PGT836RB	PGT015	2398*26mm	36	85-230	450	660	60%	40%	97	2.7
PRODUCT	RANK NO.	SIZE	POWER	VOLTAGE	NOMINAL(CCT/K)		SPECTRAL  RITIO（%)		PPF/µmol/s/s	PPF/W (μmol/J)
		(mm)	(W)	(VF/V)	MIN	MAX	Warm white	Neutral white
PGT809WW	PGT016	598*26mm	9	85-230	3000	6000	30%	70%	26	2.9
PGT813WW	PGT017	898*26mm	13	85-230	3000	6000	30%	70%	38	2.9
PGT818WW	PGT018	1198*26mm	18	85-230	3000	6000	30%	70%	52	2.9
PGT824WW	PGT019	1498*26mm	24	85-230	3000	6000	30%	70%	70	2.9
PGT836WW	PGT020	2398*26mm	36	85-230	3000	6000	30%	70%	104	2.9

Spectral Options:

Full-Sunlight Spectrum: Broadband white light (380–730 nm) combining 6000K (cool white) and 3000K (warm white) LEDs, closely mimicking natural daylight with enhanced red and far-red continuity. CRI >90, suitable for full-cycle plant growth.
Targeted Red-Blue (RB) Blend: Optimized ratio of 60% deep red (660 nm) + 40% blue (450 nm) for vegetative vigor and compact morphology; ideal for seedling, propagation, or energy-efficient supplemental lighting.
Advanced Full-Spectrum + FR: Full-sunlight base with added far-red (730 nm) for photomorphogenic control (shade avoidance, flowering acceleration) – available on select models.
All above are standard configurations. Custom spectral recipes (e.g., 70/30 RB, UV inclusion, tunable white, or multi-channel control) are available upon request for commercial or research applications.

FEATURES

Material: Made of high-quality aluminum alloy or plastic with good heat dissipation.

Spectrum: It can provide the full spectrum or specific spectrum required by plants, such as red light, blue light, etc.

Light transmittance efficiency: The light transmittance of the transparent PC cover is 94-96%, and the light transmittance of the light-diffusing large stripe PC cover is 90-92%. The light transmittance of the light diffusion PC cover is 85-88%

Flame retardant grade: PC cover Flame retardant grade: 94-V2 or 94-V0

Installation method: You can choose from various installation methods such as hoisting, fixed or surface installation

Specifications: Common specifications are 2 feet, 4 feet and 8 feet.

BENEFITS

No ultraviolet and infrared radiation: LED light sources do not produce ultraviolet and infrared radiation and are harmless to plants and human health.

Dimmability: The t8 LED planting tube can be dimmed according to the needs of the plants, providing the most suitable lighting conditions.

Promote plant growth: The t8 LED planting tube provides suitable spectrum and light intensity, which can promote the growth and development of plants.

Save energy: The high-efficiency characteristics of LED technology make the t8 LED grow tubes consume less energy, helping to reduce energy bills.

Long life: LED light sources have a long life, reducing replacement frequency and maintenance costs.

Environmentally friendly and healthy: t8 LED planting tubes do not produce ultraviolet and infrared radiation and are harmless to plants and human health.

APPLICATION

gardening

farm

plant cultivation

Greenhouse cultivation

Horticulture Research

plant breeding

Indoor cultivation, greenhouse, flower cultivation, vegetable cultivation and other fields.
