What is the typical lifespan of this product?

The product is designed for long-term industrial use, with a typical lifespan of over 50,000 hours.

Do you support OEM or custom specifications?

Yes, we support OEM, ODM, and custom technical specifications based on project requirements.

What certifications are available?

Certifications vary by model and may include CE, RoHS, LM-80, and ISO-compliant manufacturing.

Filter

High bay LED plant grow light for greenhouse and industrial cultivation

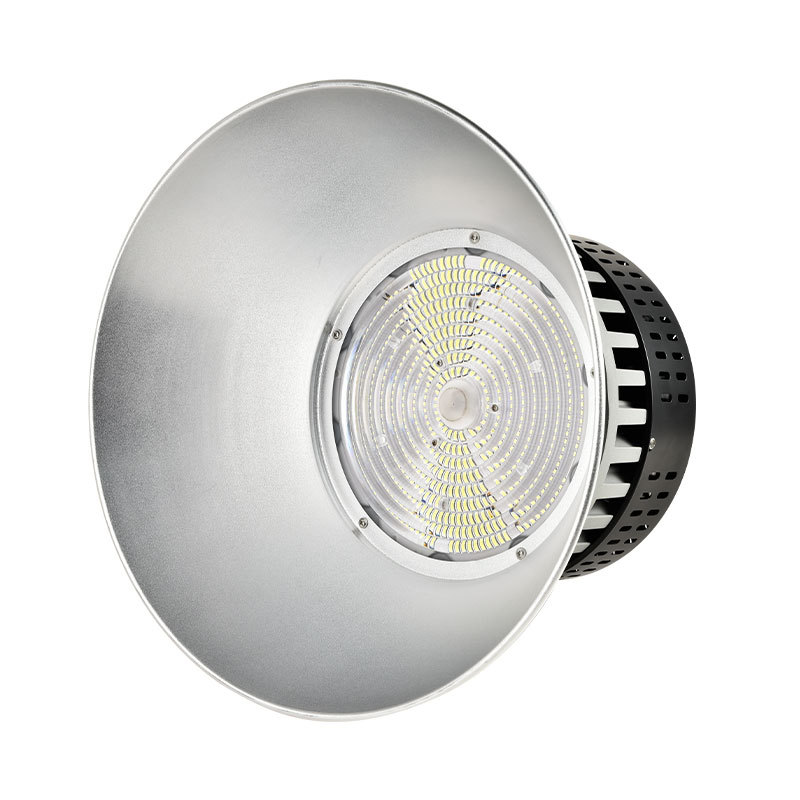

High ceiling LED high bay light with wide beam angle

High Bay LED Plant Grow Lights

Name: High Bay LED Plant Grow Lights
Brand: QUEENDOM

Technical Specifications

High Bay LED Plant Grow Light

Dimensions: 175–260 × 43/63 mm
Light Source: High-efficiency SMD LEDs (Philips / OSRAM / Samsung / Hongli)
Housing: Die-cast aluminum with passive cooling fins
Color Temperature: 3000K / 6000K
Spectral Range: 380–730 nm full spectrum
Power Options: 100W–300W (model dependent)
Input Voltage: AC 85–265V, 50/60Hz (universal auto-ranging)
Power Factor: ≥0.95
Photon Efficacy (PPE): 2.9 μmol/J (@25°C)
PPFD Output: ≥130 μmol/m²/s @ 1m
Beam Angle: 120° typical (optional: 60°, 90°, asymmetric lens)
Operating Ambient Temperature: −25°C to +40°C
Protection Rating: IP54 (IP65 optional)
Lifespan: >50,000 hours (L90/B50 at 25°C)
LED Chip Brands: Philips, OSRAM, Samsung, Hongli
Driver Brands: Mean Well, Moso, Inventec
Installation: Suspended or hoisted mounting (hardware included)
Certifications: UL 8800, EN 62471, RoHS, CE
Note: Solar/battery systems require external converters for power supply.

Description

High Bay LED Plant Grow Lights | Full Spectrum | 50W–240W

Overview

The High Bay LED Plant Grow Light is designed for high-ceiling indoor cultivation environments such as greenhouses, vertical farms, and industrial grow facilities. With full-spectrum output (370–730 nm), high PPE, and a robust AC-powered driver, it delivers optimal lighting for photosynthesis and crop yield enhancement.

High bay LED plant grow lights are widely used in modern greenhouse and vertical farming environments.
With high photon efficiency and optimized spectrum, they help growers achieve higher yields and more stable crop quality.

Compared with traditional HPS lamps, LED grow lights reduce energy consumption by up to 40% while providing more precise light distribution and lower heat output.

This product is designed for long-term commercial cultivation, offering stable performance, high reliability, and compatibility with various installation environments.

Product Electrical Index

Electrical & Photometric Specifications
Metric / Model	HPG*RB & HPGWWR
Input Voltage & Frequency	AC 85–230 V, 50/60 Hz
Rated Power (Typical W)	50	100	150	200	240
Power Factor (PF)	≥ 0.95	≥ 0.95	≥ 0.95	≥ 0.95	≥ 0.95
Dimming	Optional 0-10V, PWM
Driver Lifetime	~ 50 000h (L90>36 000h at 25°C)
Photometric Performance
WAVELENGTH [1] (nm)	370-730 nm	370-730 nm	370-730 nm	370-730 nm	370-730 nm
Photosynthetic Photon Flux (PPF) (µmol/s)	135	270	405	540	648
System Efficacy (PPE) (μmol/J)	2.7	2.7	2.7	2.7	2.7
LED-Only Efficacy (µmol/J)	3.02	3.02	3.02	3.02	3.02
Spectral Half-width (nm) (varies by LED)	10	10	10	10	10
Physical & Compliance
Dimensions (Ø × H)	Ø175×43	Ø175×43	Ø175×43	Ø175×43	Ø175×43
Beam Angle: (°)	120° (Optional angles 60°,90° 120°)
Housing Material	Aluminum
IP Rating	IP54
Wiring Option	socket (daisy-chainable)
Implementation standards	UL 8800, EN 62471 (Risk Group 1), RoHS 3 (EU 2015/863)

Available Models & Part Numbers

Red/Blue Spectrum Table
Model	Rank Code	Dimensions	Power	Input Voltage	Peak Wavelength		Spectral Ratio（%)		PPF	PPE Efficacy	Part Number
Device Model	Rank	(mm)	(W)	(V AC)	Min	Max	Red	Blue	(μmol/s)	(μmol/J)	P/N
HPG1850RB	LPG091	175×43	50	85-230	450	660	60%	40%	135	2.7	9405500000PG091
HPG21100RB	LPG092	206×63	100	85-230	450	660	60%	40%	270	2.7	9405500000PG092
HPG21150RB	LPG093	206×63	150	85-230	450	660	60%	40%	405	2.7	9405500000PG093
HPG212000RB	LPG094	206×63	200	85-230	450	660	60%	40%	540	2.7	9405500000PG094
Full Spectrum White Table
Model	Rank Code	Dimensions	Power	Input Voltage	CCT(K)		Spectral Ratio（%)		PPF	PPE Efficacy	Part Number
Device Model	Rank	(mm)	(W)	(V AC)	MIN	MAX	WW	NW	(μmol/s)	(μmol/J)	P/N
HPG1850WWR	LPG095	175×43	50	85-230	3000	6000	30%	70%	145	2.9	9405500000PG095
HPG21100WWR	LPG096	206×63	100	85-230	3000	6000	30%	70%	290	2.9	9405500000PG096
HPG21150WWR	LPG097	206×63	150	85-230	3000	6000	30%	70%	435	2.9	9405500000PG097
HPG21200WWR	LPG098	206×63	200	85-230	3000	6000	30%	70%	580	2.9	9405500000PG098

Note: WW = Warm White; NW = Neutral White.PPFD: μmol/m²/s @ 100 cm from surface.

Spectral Options

Advanced Full-Spectrum + FR: Full-sunlight base with added far-red (730 nm) for photomorphogenic control (shade avoidance, flowering acceleration) – available on select models.

Features

Full-spectrum 370–730 nm: Supports all plant growth stages.
High PPE 2.7 μmol/J: Efficient photon delivery for higher yields.
Wide 220° beam angle: Ensures uniform canopy coverage.
Industrial-grade AC driver: Long lifespan with stable output.
Optional dimming: 0–10V and PWM compatible.
Wide operating temperature: Reliable from −35°C to +85°C.
IP54 protection: Suitable for greenhouse humidity and dust.
Certified safety: UL 8800, EN 62471, RoHS compliant.

Benefits

Improved plant growth: Optimized spectrum enhances photosynthesis.
Energy-efficient: High PPE reduces electricity consumption.
Uniform lighting: Minimizes hotspots and improves canopy penetration.
Low maintenance: Long driver life reduces operational costs.
Flexible installation: Ideal for high-ceiling grow environments.
Reliable in harsh conditions: Withstands temperature and humidity changes.

Applications

Greenhouse and vertical farming
Cannabis and horticultural cultivation
Industrial grow facilities
Controlled environment agriculture (CEA)
