3535 Infrared White LED 800mA dual‑chip IR + white light SMD package

3535 IR White dual‑chip LED 800mA high‑power SMD package for sensing and illumination

3535 Bi-Color LEDs/White + Infrared (IR)

Technical Specifications

Package Type: SMD Bi-Color LED (3535 size)
Configuration: Dual-emitter,
Visible Channel:
- • Color: Phosphor-converted white
- • CCT Options: 3000 K, 4000 K, 5000 K, 6500 K
- • CRI: ≥70 / ≥80 / ≥90
- • Luminous Efficacy: 100–185 lm/W
- • Forward Voltage (V_F): 2.8 V – 3.6 V @ 350 mA
Infrared Channel:
- • Wavelength Options: 730 nm, 850 nm, or 940 nm
- • Optical Power: 100–800 mW (depending on wavelength & drive current)
- • Forward Voltage (V_F): 1.4 V – 1.8 V @ 350–1000 mA
Operating Current (per channel): 300 mA – 1100 mA (continuous)
System Voltage Compatibility: 3 V / 6 V / 12 V (via external constant-current driver)
Beam Angle: 30°, 60°, 90°, or 120° (silicone lens options)
Lens Material: Clear, UV/IR-stable silicone (epoxy-free)
Substrate: Aluminum nitride (AlN) ceramic for superior thermal management
Bonding Wire: 99.99% Au or Cu (high-reliability)
Chip Materials:
- • White: InGaN + YAG phosphor
- • IR: GaAs / AlGaAs
Chip Sizes: 30×30 mil, 35×35 mil, or 38×38 mil (per emitter)
Operating Temperature: −40°C to +85°C
Storage Temperature: −40°C to +100°C
Certifications: RoHS 3, REACH, IEC/EN 62471 (Photobiological Safety – Risk Group 1)

Category: Infrared Emitters

Description

3535 Bi-Color LEDs: White + Infrared (IR)

Overview

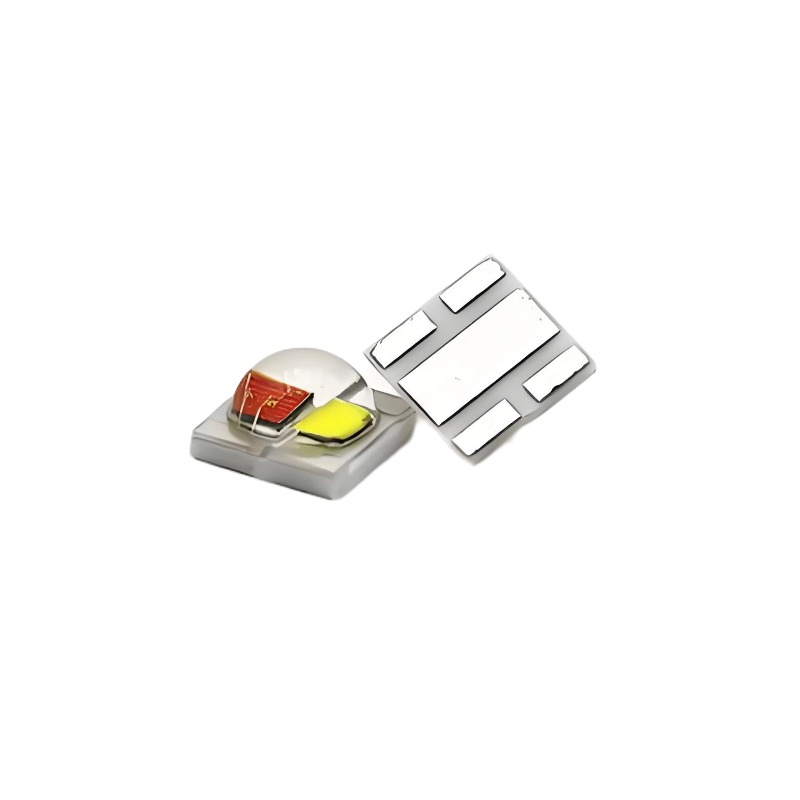

The 3535 Bi-Color LED integrates a high-efficiency white LED and a monochromatic infrared (IR) emitter in a single surface-mount package (3.5 mm × 3.5 mm).
Designed for intelligent lighting and surveillance systems, it enables seamless transition between visible illumination and covert night-vision support.
Each channel is electrically independent, allowing precise control over white light and IR output.

Absolute Maximum Ratings

Table 1. Absolute Maximum Ratings (TA = 25°C)

Parameters	Symbol	Max	Unit
Power Dissipation	Pd	4	W
Peak Forward Current (1/10 duty cycle, 0.1ms pulse)	IFP	700 / 1000	mA
DC Forward Current	IF	1000 / 1200	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	1000	V
Operating Temperature Range	Topr	-25°C to +80°C
Storage Temperature Range	Tstg	-35°C to +100°C
Soldering Temperature	Tsld	260°C for 5 seconds

Note: Pulse width ≦100 μs, Duty ≦1%.

Available Models & Part Numbers

3535 White+IR LEDs & Part Numbers

Table 2. Optical & Electrical Characteristics (Tj = 25°C)

Product	Rank No.	Nominal (nm/K)	Forward Voltage (V)		Radiant Intensity IR (mW/sr)		White Flux (lm)	Test Current (mA)	Part Number
Product	Rank No.	Nominal (nm/K)	Min	Max	Min	Typ	White Flux (lm)	Test Current (mA)	Part Number
HP3535IRW1	THLIW1001	850nm / 6000K	1.40	３.20	120	160	18	300	IRW3535THLIW1001
HP3535IRW2	THLIW1002	940nm / 6500K	1.40	３.20	180	260	20	300	IRW3535THLIW1002
HP3535IRW3	THLIW1003	850nm / 4000K	1.40	３.20	260	380	22	500	IRW3535THLIW1003
HP3535IRW4	THLIW1004	940nm / 5000K	1.40	3.20	450	700	25	800	IRW3535THLIW1004
HP3535IRW5	THLIW1005	850nm / 6000K	1.40	３.30	600	900	28	1000	IRW3535THLIW1005
HP3535IRW6	THLIW1006	940nm / 6500K	1.40	３.30	750	1100	30	1000	IRW3535THLIW1006

💡 Application Note:
Ideal for day/night adaptive lighting systems such as:
• Security cameras with auto-switching visible/IR illumination
• Smart streetlights with human-visible lighting + IR motion sensing
• Machine vision systems requiring multi-spectral illuminationNote: White and IR channels must be driven independently using a dual-channel constant-current driver.

Actual pinout may vary by rank—refer to datasheet before PCB design.
