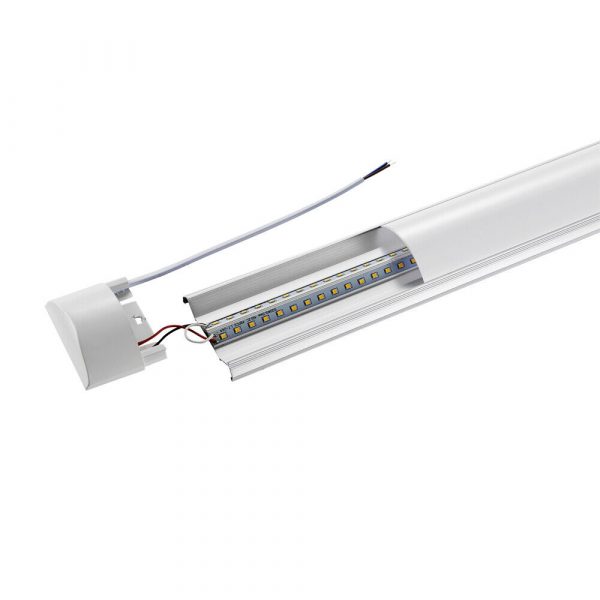

The image shows fluorescent fixture of China QUEENDOM Company.

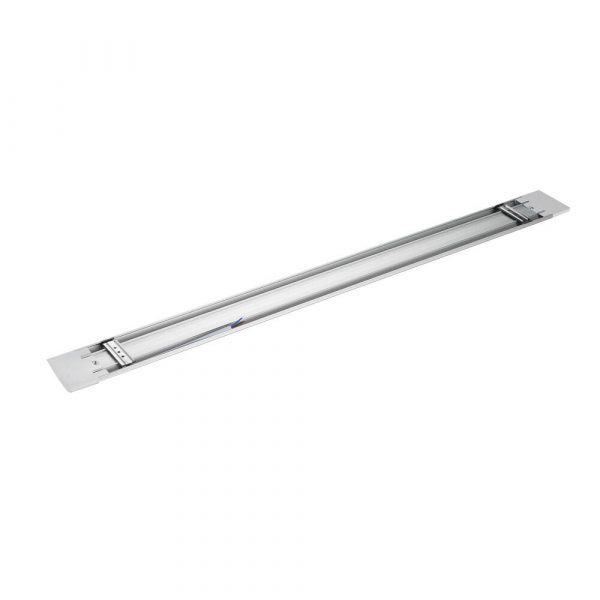

The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.

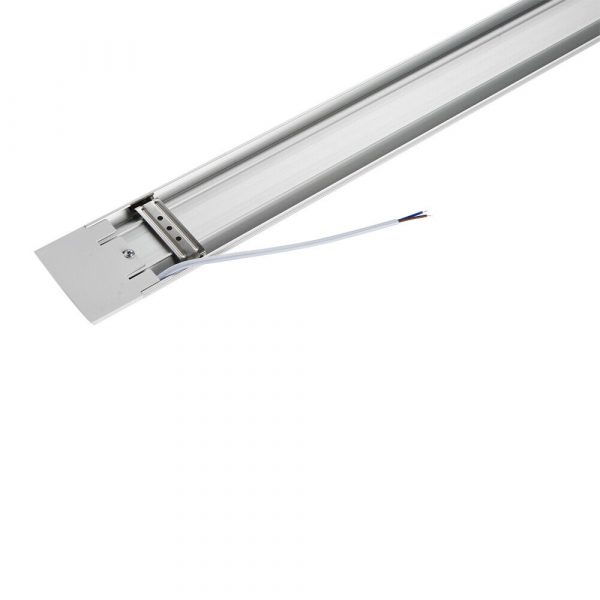

The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.
The image shows fluorescent fixture of China QUEENDOM Company.

Cleanroom led tube

Technical Specifications

Cleanroom LED Tube

  • Dimensions: Ø75 mm × 600 mm (2ft) or 1200 mm (4ft)
  • Light Source: High-efficiency SMD LEDs
  • Housing: Optical-grade polycarbonate (PC) diffuser with either galvanized iron case or aluminum alloy shell (model dependent)
  • Color Temperature (CCT): 4000K (neutral white), 6500K (cool white)
  • Spectral Range: 400–700 nm (visible spectrum for human-centric lighting)
  • Spectral Options: Standard 4000K or 6500K; other CCTs available on custom order (minimum volume required)
  • Power Options: 18W (600mm), 36W (1200mm)
  • Input Voltage: AC 180–265V, 50/60Hz (not compatible with 110V systems)
  • Power Factor: ≥0.90
  • Luminous Efficacy: 90–130 lm/W (system-level, depending on CCT and batch)
  • Initial Luminous Flux: 1700–2300 lm (18W), 3200–4800 lm (36W)
  • Beam Angle: 160° (wide diffusion for uniform ceiling illumination)
  • Operating Ambient Temperature: −20°C to +40°C (housing surface temperature may reach +85°C under max load)
  • Protection Rating: IP40 (protected against solid objects >1mm; not waterproof – for indoor dry environments only)
  • Lifespan: >50,000 hours (L70/B50 at 25°C)
  • LED Chip Brands: Epistar, San’an, Samsung (standard); OSRAM/Philips on request
  • Driver Brands: Internal constant-current driver (self-developed or Inventec)
  • Installation: Surface-mounted (ceiling-mounted) with direct wiring; power connected via terminal block or PG7 cable gland. Not a plug-in tube — no G13 base.
  • Certifications: CE, RoHS, IEC 60598-1, IEC 62778 (photobiological safety)
  • Note: Designed for ISO Class 5–8 cleanrooms. Smooth, seamless housing minimizes particle accumulation. Not suitable for wet, corrosive, or outdoor locations due to IP40 rating.
Categories: , Tag:

Cleanroom led tube

OVERVIEW

Our Cleanroom LED Tube Lights are designed to meet the highest hygiene and lighting standards in sterile environments. With a completely enclosed structure and IP65 protection, these tubes prevent dust and moisture ingress, making them ideal for use in pharmaceutical, biomedical, and food processing industries.

PRODUCT SKU

Product No. Material Diameter Length(mm) Voltage Power(w) Initial Lumens/LM Color Effect  LM/W (Ra) Deg Part No.
QdJHD2201 PC+Iron Case 75 600 AC180V-260V 18W±5% 1700-2300LM 4000K/6500K 90-130LM/W Ra＞80 200 9405500000PT01
QdJHD2202 PC+Iron Case 75 1200 AC180V-260V 36W±5% 3200-4800LM 4000K/6500K 90-130LM/W Ra＞80 200 9405500000PT02
QdJHD2203 PC+Iron Case 75 600 AC180V-260V 18W±5% 1700-2300LM 4000K/6500K 90-130LM/W Ra＞80 200 9405500000PT03
QdJHD2204 PC+Iron Case 75 1200 AC180V-260V 36W±5% 3200-4800LM 4000K/6500K 90-130LM/W Ra＞80 200 9405500000PT04
QdJHD2205 PC+Aluminum Shell 75 600 AC180V-260V 18W±5% 1700-2300LM 4000K/6500K 90-130LM/W Ra＞80 200 9405500000PT05
QdJHD2206 PC+Aluminum Shell 75 1200 AC180V-260V 36W±5% 3200-4800LM 4000K/6500K 90-130LM/W Ra＞80 200 9405500000PT06
QdJHD2207 PC+Aluminum Shell 75 600 AC180V-260V 18W±5% 1700-2300LM 4000K/6500K 90-130LM/W Ra＞80 200 9405500000PT07
QdJHD2208 PC+Aluminum Shell 75 1200 AC180V-260V 36W±5% 3200-4800LM 4000K/6500K 90-130LM/W Ra＞80 200 9405500000PT08

FEATURES

✔ IP65/IP66 Protection – Dustproof and waterproof design with sealed end caps.
✔ Anti-Corrosion Housing – Made of high-quality polycarbonate or stainless steel for harsh environments.
✔ Smooth, Easy-to-Clean Surface – Ideal for sterile zones requiring frequent sanitation.
✔ LED Tubes – Available in multiple lengths and power ratings.
✔ Flicker-Free Driver – Reduces eye strain in work-intensive areas.
✔ Surface or Suspended Mounting – Quick installation with optional brackets or clips.

BENEFITS

Dust-proof, anti-corrosion, explosion-proof, easy to clean

Quick start, no noise, no static electricity, no dust absorption

No flicker, pure DC operation, eliminating visual fatigue caused by the flicker of traditional flat panel lights.

APPLICATION

  • 🧪 Cleanrooms (ISO Class 5–8)

  • 🏥 Pharmaceutical production & GMP areas

  • 🧫 Food & beverage processing zones

  • 🔬 Laboratories & biotechnology plants

  • 🧼 Medical device assembly rooms

  • 🧯 Electronic & precision manufacturing

🔷 OEM/ODM Service

We provide full OEM/ODM customization:

  • Laser logo engraving

  • Color temperature & size adjustments

  • Custom end caps and wiring options

  • DALI, 0-10V, or Motion Sensor available

🔷 Why Choose Our Cleanroom Tube Lights?

  • 10+ years experience in clean lighting solutions

  • Strict quality control & cleanroom production standards

  • Fast delivery & international shipping

  • Dedicated technical support for B2B projects
