What is the typical lifespan of this product?

The product is designed for long-term industrial use, with a typical lifespan of over 50,000 hours.

Do you support OEM or custom specifications?

Yes, we support OEM, ODM, and custom technical specifications based on project requirements.

What certifications are available?

Certifications vary by model and may include CE, RoHS, LM-80, and ISO-compliant manufacturing.

Filter

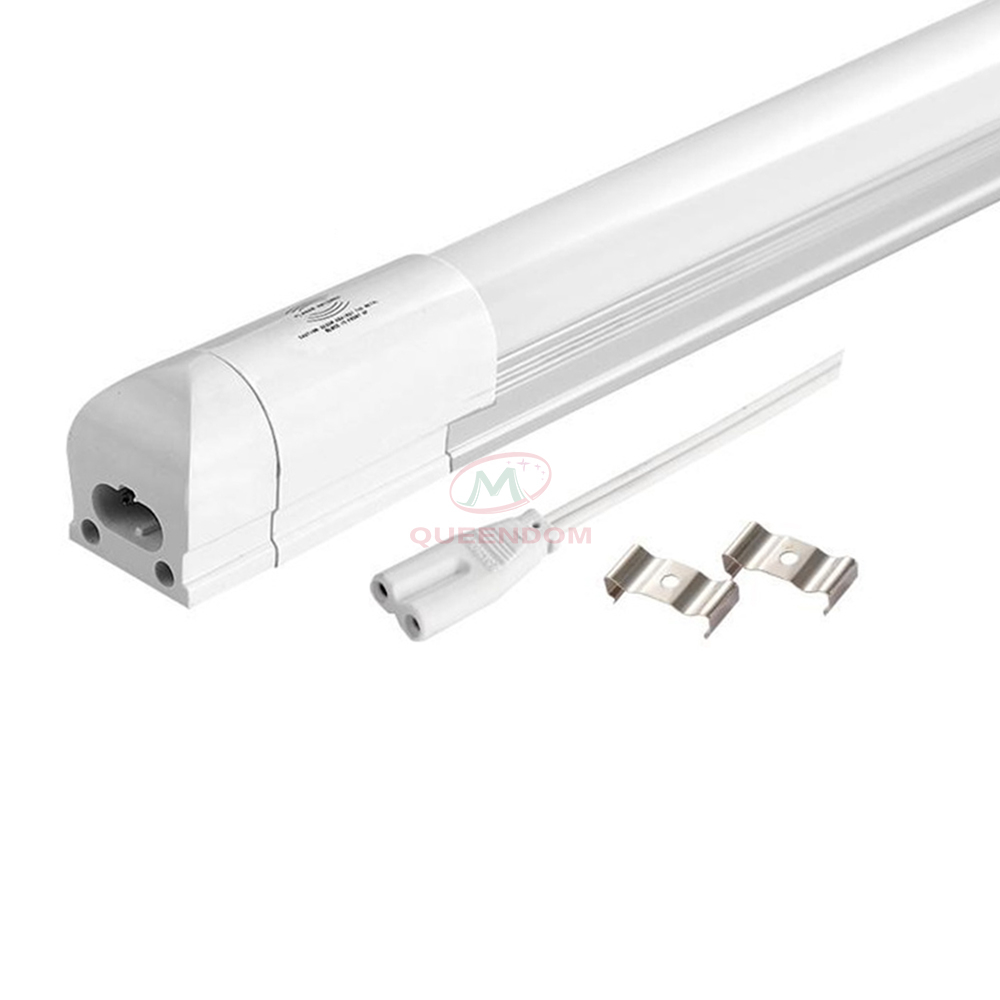

T5 Integrated LED Tubes

Name: T5 Integrated LED Tubes
Brand: QUEENDOM

Technical Specifications

T5 Integrated LED Tubes

Dimensions: Ø16 × 590 / 892 / 1198 mm
Light Source: SMD LEDs (white or monochromatic)
LED Chip Brands: Epistar, Sanan
Housing: PC + aluminum PCB with integrated thermal path
Color Temperature (White): 3000K, 4000K, 5000K, 6000K ±250K
Monochromatic Options: Blue (465nm), Green (525nm), Yellow (585nm), Red (620nm)
Power Options: 7 W, 12 W, 18 W (model dependent)
Input Voltage: AC 85–265 V, 50/60 Hz (auto-ranging)
Power Factor: ≥0.95
Beam Angle: 160°
Operating Ambient Temperature: −20°C to +50°C
Protection Rating: IP20 (indoor use only)
Lifespan: >50,000 hours (L70 at 25°C ambient)
Driver: Fully integrated constant-current driver
Installation: G5 bi-pin base; plug-and-play replacement for T5 fluorescent fixtures (ballast must be bypassed)
Certifications: CE, RoHS, REACH, EN 62471
Note: CRI not applicable for monochromatic models. Not suitable for outdoor or high-humidity environments

Categories: LED Tubes, T5 LED Tubes Tags: LED Tube, T5 LED tube

Description

T5 Integrated LED Tubes

OVERVIEW

The T5 Integrated LED Tube features a built-in driver and high-efficiency LEDs in a single unit, designed for direct replacement of traditional T5 fluorescent systems. With a standard diameter of Ø16 mm and available in 600 mm, 900 mm, and 1200 mm lengths, it delivers reliable performance for both general white lighting and monochromatic accent applications.

PRODUCT SKU – WHITE LIGHT MODELS (12 Items)

PRODUCT	RANK NO.	CCT (K)	Length (mm)	Power (W)	Voltage	Flux (lm)	Efficacy (lm/W)	CRI (Ra)	Base	Part Number
T5I0607WY	WL0141	3000K	590	7	AC 85–265V	710	101	≥80	G5	9405500000WT0411
T5I0607WT	WL0142	4000K	590	7	AC 85–265V	710	101	≥80	G5	9405500000WT0412
T5I0607WR	WL0143	5000K	590	7	AC 85–265V	710	101	≥80	G5	9405500000WT0413
T5I0607WP	WL0144	6000K	590	7	AC 85–265V	710	101	≥80	G5	9405500000WT0414
T5I0912WY	WL0145	3000K	892	12	AC 85–265V	1250	104	≥80	G5	9405500000WT0415
T5I0912WT	WL0146	4000K	892	12	AC 85–265V	1250	104	≥80	G5	9405500000WT0416
T5I0912WR	WL0147	5000K	892	12	AC 85–265V	1250	104	≥80	G5	9405500000WT0417
T5I0912WP	WL0148	6000K	892	12	AC 85–265V	1250	104	≥80	G5	9405500000WT0418
T5I1218WY	WL0149	3000K	1198	18	AC 85–265V	1890	105	≥80	G5	9405500000WT0419
T5I1218WT	WL0150	4000K	1198	18	AC 85–265V	1890	105	≥80	G5	9405500000WT0420
T5I1218WR	WL0151	5000K	1198	18	AC 85–265V	1890	105	≥80	G5	9405500000WT0421
T5I1218WP	WL0152	6000K	1198	18	AC 85–265V	1890	105	≥80	G5	9405500000WT0422

PRODUCT SKU – SINGLE-COLOR MODELS (12 Items)

PRODUCT	RANK NO.	Color / Peak Wavelength	Length (mm)	Power (W)	Flux (lm)	Efficacy (lm/W)	Base	Part Number
T5I0607B	WL0153	Blue / 465 nm	590	7	350	50	G5	9405500000WT0423
T5I0607G	WL0154	Green / 525 nm	590	7	770	110	G5	9405500000WT0424
T5I0607Y	WL0155	Yellow / 585 nm	590	7	385	55	G5	9405500000WT0425
T5I0607R	WL0156	Red / 620 nm	590	7	450	65	G5	9405500000WT0426
T5I0912B	WL0157	Blue / 465 nm	892	12	600	50	G5	9405500000WT0427
T5I0912G	WL0158	Green / 525 nm	892	12	1320	110	G5	9405500000WT0428
T5I0912Y	WL0159	Yellow / 585 nm	892	12	680	55	G5	9405500000WT0429
T5I0912R	WL0160	Red / 620 nm	892	12	780	65	G5	9405500000WT0430
T5I1218B	WL0161	Blue / 465 nm	1198	18	900	50	G5	9405500000WT0431
T5I1218G	WL0162	Green / 525 nm	1198	18	1920	110	G5	9405500000WT0432
T5I1218Y	WL0163	Yellow / 585 nm	1198	18	980	55	G5	9405500000WT0433
T5I1218R	WL0164	Red / 620 nm	1198	18	1170	65	G5	9405500000WT0434

Luminous Efficacy:

- White models: 101–105 lm/W
- Green models: 110 lm/W
- Red models: 65 lm/W
- Yellow models: 55 lm/W
- Blue models: 50 lm/W

APPLICATIONS

White Models: Offices, schools, hospitals, retail stores, warehouses (dry indoor areas)
Single-Color Models:
- Architectural accent lighting
- Display cabinets & retail merchandising
- Entertainment & stage lighting
- Horticultural supplemental lighting (with spectral validation)

All models are designed for indoor use only (IP20). For outdoor applications, please consult our IP65-rated linear fixtures.
