What is the typical lifespan of this product?

The product is designed for long-term industrial use, with a typical lifespan of over 50,000 hours.

Do you support OEM or custom specifications?

Yes, we support OEM, ODM, and custom technical specifications based on project requirements.

What certifications are available?

Certifications vary by model and may include CE, RoHS, LM-80, and ISO-compliant manufacturing.

5050 High-Power PCR LEDs

Technical Specifications

5050 High-Power PCR LEDs

Parameter	Specification
Package Size	5.0 × 5.0 × H mm (Industry Standard 5050)
Power Rating	5W – 15W (High Power Grade)
Drive Current	300mA – 1500mA (Customizable)
Forward Voltage	1.8V – 12V (Varies by color bin)
Color Options	Red, Orange, Yellow, Green, Emerald Green, Blue, Purple, IR
White Light Performance	CCT: 3000K / 4000K / 5000K CRI: ≥90 (High Color Rendering) Efficacy: 110 – 180 lm/W
Optical	120° Viewing Angle (Half-Intensity)
Reliability	Ceramic Bracket, Gold Material (99.99%), -40°C to +85°C Operating Range
Compliance	RoHS, REACH, IEC 62471 (Photobiological Safety)

Description

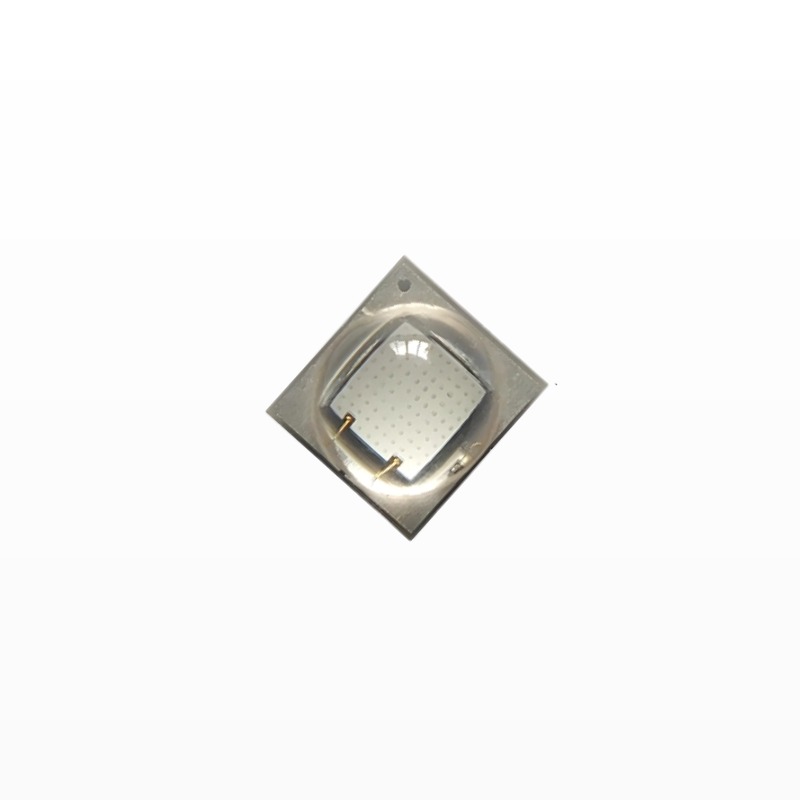

5050 High-Power PCR LEDs

Overview

Queendom’s 5050 High-Power PCR LEDs Series is engineered for the most demanding medical and biophotonics applications. Featuring a robust 5.0×5.0mm package with a ceramic substrate and 99.99% gold wire bonding, these LEDs deliver exceptional thermal stability and high radiant flux. Ideal for qPCR (Real-Time PCR), DNA sequencing, and fluorescence detection, our 5050 series offers CRI≥90 for white light channels and narrow wavelength options for precise excitation.

Available Models & Part Numbers

PCR 5050 LEDs -UV & Deep UV LEDs (254nm – 405nm)

Model	Rank Code	Color Type	Wavelength (nm)		Radiant Flux (mW)		Forward Voltage VF (V)		Viewing Angle	Test Current	Part Number
Device Model	Rank	Typical λ (nm)	Min	Max	Min	Max	Min	Max	(2θ½, °)	(mA)	P/N
HP5050V1WE	MBS201	254	250	270	30	50	4.50	7.00	120	350	8541401000MBS201
HP5050V3WE	MBS202	275	270	290	40	60	4.50	7.00	120	350	8541401000MBS202
HP5050V7WE	MBS203	310	310	340	50	80	4.50	7.00	120	350	8541401000MBS203
HP5050VCWE	MBS204	365	360	370	190	500	2.80	4.50	120	350	8541401000MBS204
HP5050VDWE	MBS205	375	370	380	120	300	2.80	4.50	120	350	8541401000MBS205
HP5050VEWE	MBS206	385	380	390	120	300	2.80	4.50	120	350	8541401000MBS206
HP5050VFWE	MBS207	395	390	400	80	300	2.80	4.50	120	350	8541401000MBS207
HP5050VEWE	MBS208	405	400	410	80	120	2.80	4.50	120	350	8541401000MBS208
HP5050V1WF	MBS209	254	250	270	40	60	4.50	7.00	120	500	8541401000MBS209
HP5050V3WF	MBS210	275	270	290	50	70	4.50	7.00	120	500	8541401000MBS210
HP5050V7WF	MBS211	310	310	340	70	90	4.50	7.00	120	500	8541401000MBS211
HP5050VCWF	MBS212	365	360	370	670	870	2.80	4.50	120	500	8541401000MBS212
HP5050VDWF	MBS213	375	370	380	670	870	2.80	4.50	120	500	8541401000MBS213
HP5050VEWF	MBS214	385	380	390	570	670	2.80	4.50	120	500	8541401000MBS214
HP5050VFWF	MBS215	395	390	400	490	670	2.80	4.50	120	500	8541401000MBS215
HP5050VEWF	MBS216	405	400	410	410	570	2.80	4.50	120	500	8541401000MBS216
HP5050VCWG	MBS217	365	360	370	780	1060	2.80	4.50	120	1000	8541401000MBS217
HP5050VDWG	MBS218	375	370	380	500	780	2.80	4.50	120	1000	8541401000MBS218
HP5050VEWG	MBS219	385	380	390	780	1060	2.80	4.50	120	1000	8541401000MBS219
HP5050VFWG	MBS220	395	390	400	1060	2460	2.80	4.50	120	1000	8541401000MBS220
HP5050VEWG	MBS221	405	400	410	1060	2460	2.80	4.50	120	1000	8541401000MBS221
HP5050VCWH	MBS222	365	360	370	1560	2460	2.80	4.50	120	1400	8541401000MBS222
HP5050VDWH	MBS223	375	370	380	1560	2460	2.80	4.50	120	1400	8541401000MBS223
HP5050VEWH	MBS224	385	380	390	1560	3360	2.80	4.50	120	1400	8541401000MBS224
HP5050VFWH	MBS225	395	390	400	2460	3660	2.80	4.50	120	1400	8541401000MBS225
HP5050VEWH	MBS226	405	400	410	2460	5760	2.80	4.50	120	1400	8541401000MBS226

PCR 5050 LEDs-Visible LEDs (460nm – 680nm)

Model	Rank Code	Color Type	Wavelength (nm)		Luminous Flux (lm)		Forward Voltage VF (V)		Viewing Angle	Test Current	Part Number
Device Model	Rank	Typical λ (nm)	Min	Max	Min	Max	Min	Max	(2θ½, °)	(mA)	P/N
HP5050B52WF	MBS217	460	460	470	1196	1226	2.6	3.2	120	700	8541401000MBS217
HP5050B62WF	MBS218	470	470	480	1222	1252	2.6	3.2	120	700	8541401000MBS218
HP5050G02WF	MBS219	500	500	510	1300	1330	2.6	3.2	120	700	8541401000MBS219
HP5050G12WF	MBS220	510	510	520	1326	1356	2.6	3.2	120	700	8541401000MBS220
HP5050G22WF	MBS221	520	520	530	1352	1382	2.6	3.2	120	700	8541401000MBS221
HP5050G32WF	MBS222	530	530	540	1378	1408	2.6	3.2	120	700	8541401000MBS222
HP5050Y22WF	MBS223	585	585	595	1053	1083	1.8	2.4	120	700	8541401000MBS223
HP5050AO2WF	MBS224	605	600	610	1089	1119	1.8	2.4	120	700	8541401000MBS224
HP5050R22WF	MBS225	620	610	630	1116	1146	1.8	2.4	120	700	8541401000MBS225
HP5050R32WF	MBS226	630	620	640	1134	1164	1.8	2.4	120	700	8541401000MBS226
HP5050R42WF	MBS227	640	640	660	65	90	1.8	2.4	120	700	8541401000MBS227
HP5050R62WG	MBS228	660	660	680	10	30	1.8	2.4	120	700	8541401000MBS228
HP5050B52WG	MBS229	460	460	470	200	240	2.6	3.2	120	1200	8541401000MBS229
HP5050B62WG	MBS230	470	470	480	200	240	2.6	3.2	120	1200	8541401000MBS230
HP5050G02WG	MBS231	500	500	510	560	720	2.6	3.2	120	1200	8541401000MBS231
HP5050G12WG	MBS232	510	510	520	560	720	2.6	3.2	120	1200	8541401000MBS232
HP5050G22WG	MBS233	520	520	530	560	720	2.6	3.2	120	1200	8541401000MBS233
HP5050G32WG	MBS234	530	530	540	560	720	2.6	3.2	120	1200	8541401000MBS234
HP5050Y22WG	MBS235	585	585	595	200	240	1.8	2.4	120	1200	8541401000MBS235
HP5050AO2WG	MBS236	605	600	610	240	280	1.8	2.4	120	1200	8541401000MBS236
HP5050R22WG	MBS237	620	610	630	240	280	1.8	2.4	120	1200	8541401000MBS237
HP5050R32WG	MBS238	630	620	640	240	280	1.8	2.4	120	1200	8541401000MBS238
HP5050R42WG	MBS239	640	640	660	100	180	1.8	2.4	120	1200	8541401000MBS239
HP5050R62WG	MBS240	660	660	680	20	40	1.8	2.4	120	1200	8541401000MBS240

Note: Luminous flux (lm) is provided for reference. Radiant flux (mW) data for specific fluorescence excitation wavelengths is available upon request.

PCR 5050 LEDs – IR LEDs (850nm – 940nm)

Model	Rank Code	Color Type	Wavelength (nm)		Radiant Flux (mW)		Forward Voltage VF (V)		Viewing Angle	Test Current	Part Number
Device Model	Rank	Typical λ (nm)	Min	Max	Min	Max	Min	Max	(2θ½, °)	(mA)	P/N
HP50505IH2WE	MBS262	850	830	860	290	490	1.40	2.00	135	800	8541401000MBS262
HP50505IK2WE	MBS263	880	870	890	290	490	1.40	2.00	135	800	8541401000MBS263
HP50505IQ2WE	MBS264	940	830	850	670	1070	1.40	2.00	265	800	8541401000MBS264
HP50505IH4WG	MBS265	850	830	860	770	1270	1.50	2.40	257	1000	8541401000MBS265
HP50505IK4WG	MBS266	880	870	890	770	1270	1.50	2.40	257	1000	8541401000MBS266
HP50505IQ4WG	MBS267	940	830	850	1070	1470	1.50	2.40	290	1000	8541401000MBS267
HP50505IH8WG	MBS268	850	830	860	870	1470	1.50	2.40	220	1500	8541401000MBS268
HP50505IK8WG	MBS269	880	870	890	870	1470	1.50	2.40	220	1500	8541401000MBS269
HP50505IQ8WG	MBS270	940	830	850	1070	1670	1.50	2.40	350	1500	8541401000MBS270

PCR 5050 White LEDs (3000K – 7600K)

Model	Rank Code	Color Type	CRI	Luminous Flux (lm)		Forward Voltage VF (V)		Efficacy	Viewing Angle	Test Current	Part Number
Device Model	Rank	CCT/K	(Ra)	MIN	MAX	MIN	MAX	(lm/W)	(2θ½, °)	(mA)	P/N
HP5050WV2WF	MBS241	3000K	90	190	240	2.80	4.60	135	120	700	8541401000MBS241
HP5050WU2WF	MBS242	3500K	90	190	240	2.80	4.60	140	120	700	8541401000MBS242
HP5050WT2WF	MBS243	4000K	90	190	240	2.80	4.60	143	120	700	8541401000MBS243
HP5050WR2WF	MBS244	5000K	90	190	240	2.80	4.60	150	120	700	8541401000MBS244
HP5050WQ2WF	MBS245	5700K	90	190	240	2.80	4.60	155	120	700	8541401000MBS245
HP5050WP2WF	MBS246	6500K	90	190	240	2.80	4.60	160	120	700	8541401000MBS246
HP5050WD2WF	MBS247	7600K	90	190	240	2.80	4.60	165	120	700	8541401000MBS247
HP5050WV2WG	MBS248	3000K	90	210	430	4.80	6.90	135	120	1000	8541401000MBS248
HP5050WU2WG	MBS249	3500K	90	210	430	4.80	6.90	140	120	1000	8541401000MBS249
HP5050WT2WG	MBS250	4000K	90	210	430	4.80	6.90	143	120	1000	8541401000MBS250
HP5050WR2WG	MBS251	5000K	90	210	430	4.80	6.90	150	120	1000	8541401000MBS251
HP5050WQ2WG	MBS252	5700K	90	210	430	4.80	6.90	155	120	1000	8541401000MBS252
HP5050WP2WG	MBS253	6500K	90	210	430	4.80	6.90	160	120	1000	8541401000MBS253
HP5050WD2WG	MBS254	7600K	90	210	430	4.80	6.90	165	120	1000	8541401000MBS254
HP5050WV8WI	MBS255	3000K	90	360	640	9.00	12.00	135	120	1400	8541401000MBS255
HP5050WU8WI	MBS256	3500K	90	360	640	9.00	12.00	140	120	1400	8541401000MBS256
HP5050WT8WI	MBS257	4000K	90	360	640	9.00	12.00	143	120	1400	8541401000MBS257
HP5050WR8WI	MBS258	5000K	90	360	640	9.00	12.00	150	120	1400	8541401000MBS258
HP5050WQ8WI	MBS259	5700K	90	360	640	9.00	12.00	155	120	1400	8541401000MBS259
HP5050WP8WI	MBS260	6500K	90	360	640	9.00	12.00	160	120	1400	8541401000MBS260
HP5050WD8WI	MBS261	7600K	90	360	640	9.00	12.00	165	120	1400	8541401000MBS261

Features & Benefits

High Power Density: 5W to 15W operation supports high-intensity excitation for low-signal biosensing.
Superior Color Fidelity: CRI 90+ ensures accurate color separation in multi-channel fluorescence detection.
Advanced Thermal Management: Ceramic bracket design minimizes thermal resistance, ensuring wavelength stability during rapid thermal cycling.
Premium Materials: Constructed with 99.99% gold and high-quality chips (Sanan, Jingyuan, CREE), ensuring long-term reliability and resistance to sulfuration.
Wide Spectral Range: From deep Red/IR to Violet, combined with high-CRI white, provides a comprehensive solution for complex optical systems.

Applications

Related Solutions: Medical Lighting Solutions

Real-Time PCR (qPCR) & dPCR: High-flux excitation sources for multi-color probe detection.
DNA Sequencing & Microarrays: Stable light sources for high-resolution fluorescence imaging.
Biomedical Instruments: Ideal for blood analyzers, cytometers, and endoscopes requiring high CRI illumination.
Industrial Inspection: High-brightness lighting for machine vision and quality control.

⚠️ Legal Disclaimer & Regulatory Notice

Component Status: Queendom products described herein are electronic components, not finished medical devices. They are intended for integration into systems by qualified manufacturers.
No Medical Warranty: Mention of “medical,” “diagnostic,” or “disinfection/sterilization” applications refers to potential use cases only. Queendom does not warrant that any system built with these components will meet specific medical regulatory standards (e.g., FDA, CE MDR, ISO 13485) or achieve specific clinical outcomes.
System Responsibility: The responsibility for system design, safety validation, biological testing, and regulatory compliance lies solely with the equipment manufacturer. Performance data (e.g., radiant flux, wavelength) is provided for reference under test conditions and may vary in actual applications.
Safety Warning: Improper use of high-power UV or laser-class LEDs can cause eye or skin injury. Users must adhere to safety standards (e.g., IEC 62471) and implement appropriate protective measures.
