3535 High-Power PCR LEDs

Technical Specifications

High-Power 3535 Biological LEDs

Parameter	Specification
Package Size	3.5 × 3.5 × 2.2 mm (Industry Standard 3535)
Power Rating	1W / 3W (Customizable up to 5W)
Drive Current	350mA / 700mA / 1000mA
Forward Voltage (Typ.)	Red/Amber: 2.0 – 2.4 V Blue/Green/White/UV: 2.8 – 3.6 V
Viewing Angle	120° (Half-Intensity Angle)
Spectral Range	Monochromatic: 254nm (UVC) – 940nm (IR) [Precision ±3nm] White Light: 2200K – 20000K (CRI >70, >80, >90 available)
Performance	White Efficacy: Up to 150 lm/W Radiant Flux (UV/IR): Up to 1000+ mW @ 1A
Reliability	Low Thermal Resistance (<8°C/W), L70 > 50,000 hrs
Compliance	RoHS, REACH, IEC 62471 (Photobiological Safety)

Description

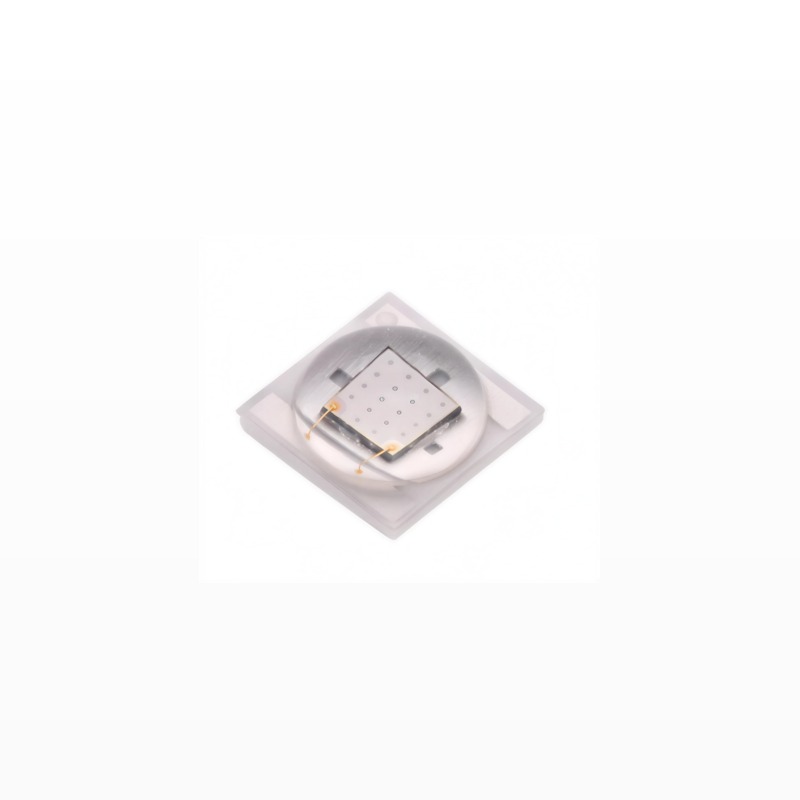

High-Precision 3535 LEDs for PCR

& High-Performance LEDs for biosensing, fluorescence detection,

Overview

Queendom’s 3535 Biological LED Series delivers exceptional spectral stability and radiant flux tailored for Polymerase Chain Reaction (PCR) instruments, fluorescence detection, and biosensing applications.
Covering a comprehensive range from Deep UV (254nm) to Near-Infrared (940nm), our LEDs feature narrow bandwidths (±3nm to ±5nm) and high reliability for critical medical environments.

Available Models & Part Numbers

PCR-UV & Deep UV LEDs (254nm – 405nm)

Model	Rank Code	Color Type	Wavelength (nm)			Radiant Flux (mW)		Forward Voltage VF (V)		Viewing Angle	Test Current	Part Number
Device Model	Rank	Typical λ (nm)	Min	Max	FWHM ( Δλ ）	Min	Max	Min	Max	(2θ½, °)	(mA)	P/N
HP3535VE2WB	MBS101	405	400	410	10±3nm	20	40	2.80	4.50	120	40	8541401000MBS101
HP3535VF2WB	MBS102	395	390	400	10±3nm	20	40	2.80	4.50	120	40	8541401000MBS102
HP3535VE2WB	MBS103	385	380	390	10±3nm	15	40	2.80	4.50	120	40	8541401000MBS103
HP3535VD2WB	MBS104	375	370	380	10±3nm	15	40	2.80	4.50	120	40	8541401000MBS104
HP3535VC2WB	MBS105	365	360	380	5±5nm	15	40	2.80	4.50	120	40	8541401000MBS105
HP3535V72WB	MBS106	310	300	340	5±5nm	4	10	4.00	7.00	120	40	8541401000MBS106
HP3535V42WB	MBS107	285	280	300	5±5nm	3	7	4.00	7.00	120	40	8541401000MBS107
HP3535V32WB	MBS108	275	270	280	5±5nm	3	7	4.00	7.00	120	40	8541401000MBS108
HP3535V22WB	MBS109	265	260	270	5±5nm	2	6	4.00	7.00	120	40	8541401000MBS109
HP3535V12WB	MBS110	254	250	260	5±5nm	2	6	4.00	7.00	120	40	8541401000MBS110
HP3535VE2WC	MBS111	405	400	410	10±3nm	90	300	2.80	4.50	120	150	8541401000MBS111
HP3535VF2WC	MBS112	395	390	400	10±3nm	90	190	2.80	4.50	120	150	8541401000MBS112
HP3535VE2WC	MBS113	385	380	390	10±3nm	90	190	2.80	4.50	120	150	8541401000MBS113
HP3535VD2WC	MBS114	375	370	380	10±3nm	80	120	2.80	4.50	120	150	8541401000MBS114
HP3535VC2WC	MBS115	365	360	370	5±5nm	80	120	2.80	4.50	120	150	8541401000MBS115
HP3535V72WC	MBS116	310	300	340	5±5nm	15	40	4.00	7.00	120	150	8541401000MBS116
HP3535V42WC	MBS117	285	280	300	5±5nm	15	40	4.00	7.00	120	150	8541401000MBS117
HP3535V32WC	MBS118	275	270	280	5±5nm	6	15	4.00	7.00	120	150	8541401000MBS118
HP3535V22WC	MBS119	265	260	270	5±5nm	6	15	4.00	7.00	120	150	8541401000MBS119
HP3535V12WC	MBS120	254	250	260	5±5nm	6	15	4.00	7.00	120	150	8541401000MBS120
HP3535VE2WD	MBS121	405	400	410	10±3nm	190	500	2.80	4.50	120	350	8541401000MBS121
HP3535VF2WD	MBS122	395	390	400	10±3nm	120	300	2.80	4.50	120	350	8541401000MBS122
HP3535VE2WD	MBS123	385	380	390	10±3nm	120	300	2.80	4.50	120	350	8541401000MBS123
HP3535VD2WD	MBS124	375	370	380	10±3nm	80	300	2.80	4.50	120	350	8541401000MBS124
HP3535VC2WD	MBS125	365	360	370	5±5nm	80	120	2.80	4.50	120	350	8541401000MBS125

PCR-Visible LEDs (460nm – 680nm)

Model	Rank Code	Color Type	Wavelength (nm)			Luminous Flux (lm)		Forward Voltage VF (V)		Viewing Angle	Test Current	Part Number
Device Model	Rank	Typical λ (nm)	Min	Max	FWHM ( Δλ ）	Min	Max	Min	Max	(2θ½, °)	(mA)	P/N
HP3535B52WE	MBS126	460	460	470	8±3nm	26	55	2.6	3.2	120	300	8541401000MBS126
HP3535B62WE	MBS127	470	470	480	8±3nm	26	55	2.6	3.2	120	300	8541401000MBS127
HP3535G02WE	MBS128	500	500	510	5±5nm	60	95	2.6	3.2	120	300	8541401000MBS128
HP3535G12WE	MBS129	510	510	520	10±5nm	75	120	2.6	3.2	120	300	8541401000MBS129
HP3535G22WE	MBS130	520	520	530	10±5nm	75	120	2.6	3.2	120	300	8541401000MBS130
HP3535G32WE	MBS131	530	530	540	10±5nm	75	120	2.6	3.2	120	300	8541401000MBS131
HP3535Y22WE	MBS132	585	585	595	5±3nm	34	60	1.8	2.4	120	300	8541401000MBS132
HP3535AO2WE	MBS133	605	600	610	5±3nm	34	65	1.8	2.4	120	300	8541401000MBS133
HP3535R22WE	MBS134	620	610	630	10±5nm	34	65	1.8	2.4	120	300	8541401000MBS134
HP3535R32WE	MBS135	630	620	640	10±5nm	26	55	1.8	2.4	120	300	8541401000MBS135
HP3535R42WE	MBS136	640	640	660	10±5nm	22	45	1.8	2.4	120	300	8541401000MBS136
HP3535R52WE	MBS137	660	660	680	10±5nm	8	18	1.8	2.4	120	300	8541401000MBS137
HP3535B52WF	MBS138	460	460	470	8±3nm	75	120	2.6	3.2	120	700	8541401000MBS138
HP3535B62WF	MBS139	470	470	480	8±3nm	75	120	2.6	3.2	120	700	8541401000MBS139
HP3535G02WF	MBS140	500	500	510	5±5nm	190	240	2.6	3.2	120	700	8541401000MBS140
HP3535G12WF	MBS141	510	510	520	10±5nm	190	240	2.6	3.2	120	700	8541401000MBS141
HP3535G22WF	MBS142	520	520	530	10±5nm	200	280	2.6	3.2	120	700	8541401000MBS142
HP3535G32WF	MBS143	530	530	540	10±5nm	200	280	2.6	3.2	120	700	8541401000MBS143
HP3535Y22WF	MBS144	585	585	595	5±3nm	95	120	1.8	2.4	120	700	8541401000MBS144
HP3535AO2WF	MBS145	605	600	610	5±3nm	95	120	1.8	2.4	120	700	8541401000MBS145
HP3535R22WF	MBS146	620	610	630	10±5nm	95	140	1.8	2.4	120	700	8541401000MBS146
HP3535R32WF	MBS147	630	620	640	10±5nm	95	140	1.8	2.4	120	700	8541401000MBS147
HP3535R42WF	MBS148	640	640	660	10±5nm	28	45	1.8	2.4	120	700	8541401000MBS148
HP3535R62WF	MBS149	660	660	680	10±5nm	18	26	1.8	2.4	120	700	8541401000MBS149
HP3535R72WF	MBS150	680	660	680	10±5nm	18	40	1.8	2.4	30	700	8541401000HP0149

Note: Luminous flux (lm) is provided for reference. Radiant flux (mW) data for specific fluorescence excitation wavelengths is available upon request.

PCR-IR LEDs (850nm – 940nm)

Model	Rank Code	Color Type	Wavelength (nm)			Radiant Flux (mW)		Forward Voltage VF (V)		Viewing Angle	Test Current	Part Number
Device Model	Rank	Typical λ (nm)	Min	Max	FWHM ( Δλ ）	Min	Max	Min	Max	(2θ½, °)	(mA)	P/N
HP3535IH2WE	MBS171	850	830	860	10±5nm	130	160	1.40	2.00	130	300	8541401000MBS171
HP3535IK2WE	MBS172	880	870	890	10±5nm	150	180	1.40	2.00	130	300	8541401000MBS172
HP3535IQ2WE	MBS173	940	930	950	10±5nm	180	300	1.40	2.00	130	300	8541401000MBS173
HP3535IH2WF	MBS174	850	830	860	10±5nm	150	180	1.40	2.00	130	500	8541401000MBS174
HP3535IK2WF	MBS175	880	870	890	10±5nm	170	210	1.40	2.00	130	500	8541401000MBS175
HP3535IQ2WF	MBS176	940	930	950	10±5nm	200	330	1.40	2.00	130	500	8541401000MBS176
HP3535IH2WF	MBS177	850	830	860	10±5nm	290	490	1.40	2.00	130	800	8541401000MBS177
HP3535IK2WF	MBS178	880	870	890	10±5nm	290	490	1.40	2.00	130	800	8541401000MBS178
HP3535IQ2WF	MBS179	940	930	950	10±5nm	670	1070	1.40	2.00	130	800	8541401000MBS179

PCR-White LEDs (3000K – 7600K)

Model	Rank Code	Color Type	CRI	CCT	Luminous Flux (lm)		Forward Voltage VF (V)		Efficacy	Viewing Angle	Test Current	Part Number
Device Model	Rank	CCT/K	(Ra)	FWHM/K	MIN	MAX	MIN	MAX	(lm/W)	(2θ½, °)	(mA)	P/N
HP3535WV2WE	MBS150	3000K	80	±150	100	160	2.8	3.2	130	120	300	8541401000MBS150
HP3535WU2WE	MBS151	3500K	80	±150	100	160	2.8	3.2	130	120	300	8541401000MBS151
HP3535WT2WE	MBS152	4000K	80	±150	100	160	2.8	3.2	130	120	300	8541401000MBS152
HP3535WR2WE	MBS153	5000K	80	±200	100	160	2.8	3.2	130	120	300	8541401000MBS153
HP3535WQ2WE	MBS154	5700K	80	±300	100	160	2.8	3.2	130	120	300	8541401000MBS154
HP3535WP2WE	MBS155	6500K	80	±400	100	160	2.8	3.2	130	120	300	8541401000MBS155
HP3535WD2WE	MBS156	7600K	80	±500	100	160	2.8	3.2	130	120	300	8541401000MBS156
HP3535WV2WF	MBS157	3000K	80	±150	190	240	2.8	3.2	130	120	700	8541401000MBS157
HP3535WU2WF	MBS158	3500K	80	±150	190	240	2.8	3.2	130	120	700	8541401000MBS158
HP3535WT2WF	MBS159	4000K	80	±150	190	240	2.8	3.2	130	120	700	8541401000MBS159
HP3535WR2WF	MBS160	5000K	80	±200	190	240	2.8	3.2	130	120	700	8541401000MBS160
HP3535WQ2WF	MBS161	5700K	80	±300	190	240	2.8	3.2	130	120	700	8541401000MBS161
HP3535WP2WF	MBS162	6500K	80	±400	190	240	2.8	3.2	130	120	700	8541401000MBS162
HP3535WD2WF	MBS163	7600K	80	±500	190	240	2.8	3.2	130	120	700	8541401000MBS163
HP3535WV4WG	MBS164	3000K	80	±150	210	430	2.8	3.2	130	120	1000	8541401000MBS164
HP3535WU4WG	MBS165	3500K	80	±150	210	430	2.8	3.2	130	120	1000	8541401000MBS165
HP3535WT4WG	MBS166	4000K	80	±150	210	430	2.8	3.2	130	120	1000	8541401000MBS166
HP3535WR4WG	MBS167	5000K	80	±200	210	430	2.8	3.2	130	120	1000	8541401000MBS167
HP3535WQ4WG	MBS168	5700K	80	±300	210	430	2.8	3.2	130	120	1000	8541401000MBS168
HP3535WP4WG	MBS169	6500K	80	±400	210	430	2.8	3.2	130	120	1000	8541401000MBS169
HP3535WD4WG	MBS170	7600K	80	±500	210	430	2.8	3.2	130	120	1000	8541401000MBS170

Key Features for PCR Applications

Related Solutions: Industrial Lighting Solutions

Precise Wavelength Control: Tight binning ensures optimal excitation for specific fluorescent dyes (e.g., 470nm for FAM, 525nm for HEX).
High Radiant Flux: Available in multiple power grades (0.5W, 1W, 3W+) to meet varying sensitivity requirements.
Superior Thermal Management: Ceramic substrate and vertical structure design minimize thermal resistance, ensuring wavelength stability during long-term operation.
Wide Spectral Coverage: From germicidal UVC (265-280nm) to IR sensing (850-940nm) in a compact 3.5×3.5mm package.

Why Choose Our 3535 PCR LEDs?

1. Unmatched Spectral Precision

Our LEDs offer narrow spectral widths (as tight as ±3nm), crucial for minimizing crosstalk between fluorescence channels in multi-color PCR systems. From UV excitation to IR detection, every bin is strictly sorted.

2. Robust Thermal Performance

Designed with a ceramic substrate and vertical heat dissipation structure, these LEDs maintain stable wavelength output even under high-current driving conditions (up to 1000mA), ensuring consistent experimental results over thousands of cycles.

3. Compact & Flexible Integration

The industry-standard 3535 package (3.5 x 3.5 mm) allows for dense array layouts in portable PCR devices and handheld analyzers, supporting various viewing angles (60°, 120°) to match your optical design.

Target Applications

- Real-Time PCR (qPCR) Instruments: Precise excitation sources for SYBR Green, TaqMan probes, and other fluorophores.
- DNA/RNA Analysis Systems: High-stability UV and Visible light sources for spectrophotometry and quantification.
- Point-of-Care Testing (POCT): Low-power, high-efficiency options for portable diagnostic devices.
Biosensors & Immunoassays: Specialized IR (850/940nm) and UV-C (265/275nm) LEDs。

⚠️ Legal Disclaimer & Regulatory Notice

Component Status: Queendom products described herein are electronic components, not finished medical devices. They are intended for integration into systems by qualified manufacturers.
No Medical Warranty: Mention of “medical,” “diagnostic,” or “disinfection/sterilization” applications refers to potential use cases only. Queendom does not warrant that any system built with these components will meet specific medical regulatory standards (e.g., FDA, CE MDR, ISO 13485) or achieve specific clinical outcomes.
System Responsibility: The responsibility for system design, safety validation, biological testing, and regulatory compliance lies solely with the equipment manufacturer. Performance data (e.g., radiant flux, wavelength) is provided for reference under test conditions and may vary in actual applications.
Safety Warning: Improper use of high-power UV or laser-class LEDs can cause eye or skin injury. Users must adhere to safety standards (e.g., IEC 62471) and implement appropriate protective measures.

Biosensors & Immunoassays: Specialized IR (850/940nm) and UV-C (265/275nm) LEDs.
