solar lamp light & RD series
OVERVIEW:

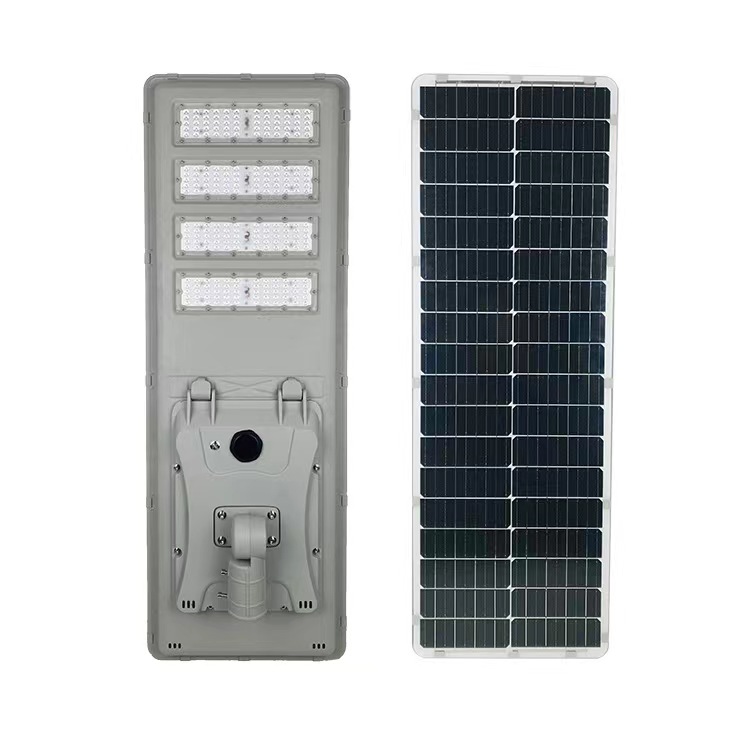

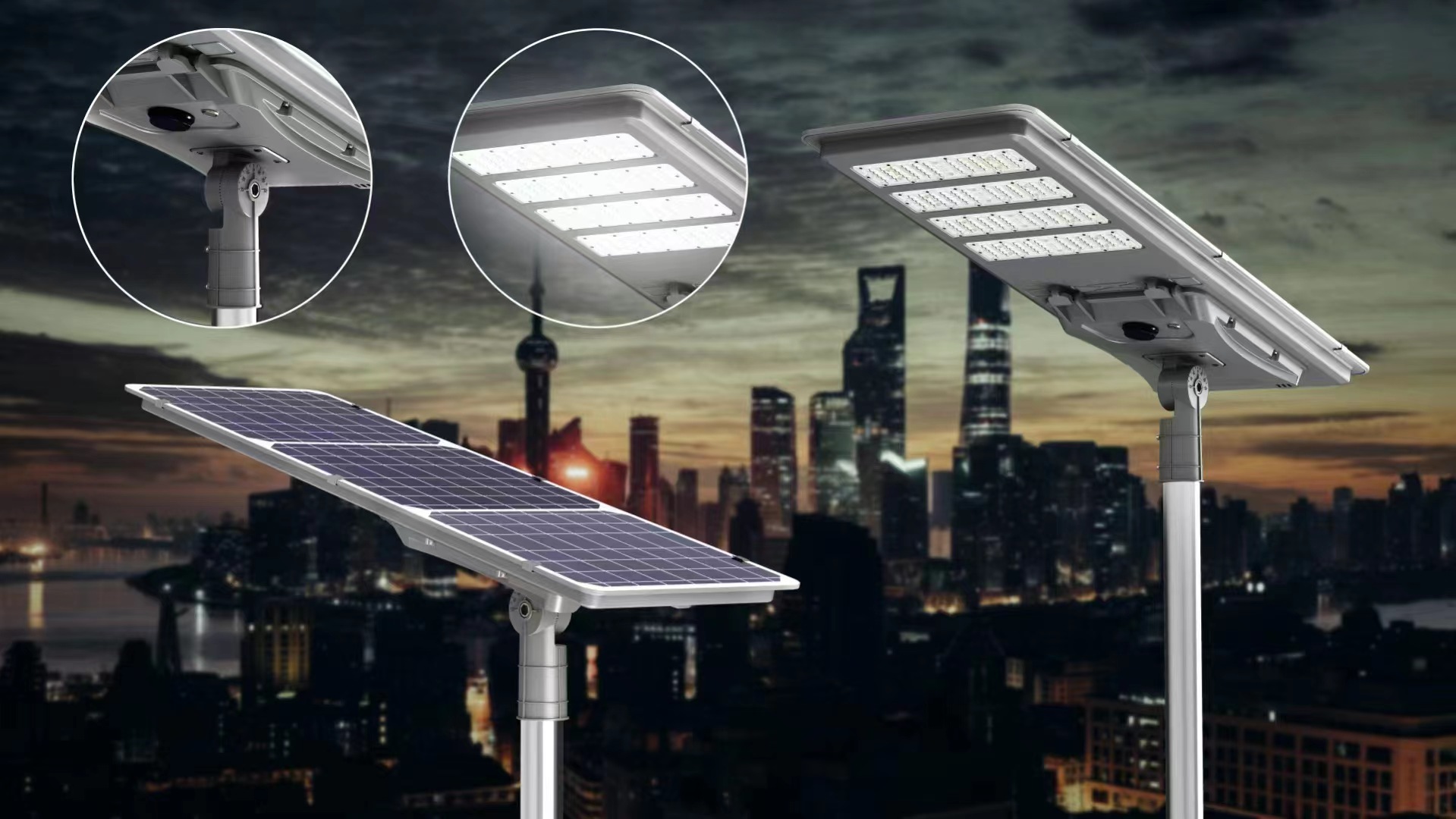

solar lamp light & RD led street lamp series is an innovative and sustainable lighting solution that harnesses the power of the sun. solar lamp ligh & RD series of solar lamps provides reliable and efficient sola street light lighting for various applications.
TYPICAL PARAMETERS
| product name: | solar lamp ligh & RD series | product brand: | QUEENDOM |
| Applicable debugging: | 6-8 meters | Lamp body material: | aluminum |
| Lamp power: | 100-240W | Irradiation range: | 10-30 meters |
| Light source chip: | LED light source | Lighting time: | ≥ 12 hours |
| Rainy duration: | 7-15 days | Wind resistance level: | 40m/min |
| Applicable road width: | 4-6 meters | Seismic rating: | 8magnitude |
| Operating temperature: | 25-65℃ | Scope of application: | Municipal roads parks and scenic areas sidewalks |
PRODUCT
| Description | Power/W | material | Battery capacity | Solar panel power | leds | Effect LM/W | Initial IV/LM | Color | CRI | IP | View Angle | Service life | product size(mm) | Part No. |
| QDSOL-RD-100WA | 100 | Aluminum | 25 | 6V/30W | 2835/3030 | 90-130lm/W | 9000 | 3000 | Ra≥70 | IP67 | 120° | 30000H | 552*282*130mm | SOLS1025 |
| QDSOL-RD- 180WA | 180 | Aluminum | 30 | 6V/40W | 2835/3030 | 90-130lm/W | 17000 | 3000 | Ra≥70 | IP67 | 120° | 30000H | 657*325*130mm | SOLS1026 |
| QDSOL-RD-240WA | 240 | Aluminum | 40 | 6V/50W | 2835/3030 | 90-130lm/W | 23500 | 3000 | Ra≥70 | IP67 | 120° | 30000H | 855*350*130mm | SOLS1027 |
| QDSOL-RD-300WA | 300 | Aluminum | 50 | 6V/60W | 2835/3030 | 90-130lm/W | 31500 | 3000 | Ra≥70 | IP67 | 120° | 30000H | 887*400*280mm | SOLS1028 |
| QDSOL-RD- 400WA | 400 | Aluminum | 70 | 6V/80W | 2835/3030 | 90-130lm/W | 39800 | 3000 | Ra≥70 | IP67 | 120° | 30000H | 1160*400*280mm | SOLS1029 |
| QDSOL-RD-500WA | 500 | Aluminum | 90 | 6V/100W | 2835/3030 | 90-130lm/W | 51000 | 3000 | Ra≥70 | IP67 | 120° | 30000H | 1435*400*280mm | SOLS1030 |
| QDSOL-RD-100WC | 100 | Aluminum | 25 | 6V/30W | 2835/3030 | 90-130lm/W | 9000 | 6000 | Ra≥70 | IP67 | 120° | 30000H | 552*282*130mm | SOLS1031 |
| QDSOL-RD- 180WC | 180 | Aluminum | 30 | 6V/40W | 2835/3030 | 90-130lm/W | 17000 | 6000 | Ra≥70 | IP67 | 120° | 30000H | 657*325*130mm | SOLS1032 |
| QDSOL-RD-240WC | 240 | Aluminum | 40 | 6V/50W | 2835/3030 | 90-130lm/W | 23500 | 6000 | Ra≥70 | IP67 | 120° | 30000H | 855*350*130mm | SOLS1033 |
| QDSOL-RD-300WC | 300 | Aluminum | 50 | 6V/60W | 2835/3030 | 90-130lm/W | 31500 | 6000 | Ra≥70 | IP67 | 120° | 30000H | 887*400*280mm | SOLS1034 |
| QDSOL-RD- 400WC | 400 | Aluminum | 70 | 6V/80W | 2835/3030 | 90-130lm/W | 39800 | 6000 | Ra≥70 | IP67 | 120° | 30000H | 1160*400*280mm | SOLS1035 |
| QDSOL-RD-500WC | 500 | Aluminum | 90 | 6V/100W | 2835/3030 | 90-130lm/W | 51000 | 6000 | Ra≥70 | IP67 | 120° | 30000H | 1435*400*280mm | SOLS1036 |
FEATURES
- Solar Powered: The RD series solar lamps are equipped with efficient solar panels that convert sunlight into electricity, eliminating the need for external power sources.
- Energy-efficient LED Lights: These solar lamps utilize LED lights, which are highly energy-efficient and provide bright illumination while consuming minimal power.
- Durable Construction: The lamps are built to withstand harsh weather conditions, making them suitable for outdoor installations.

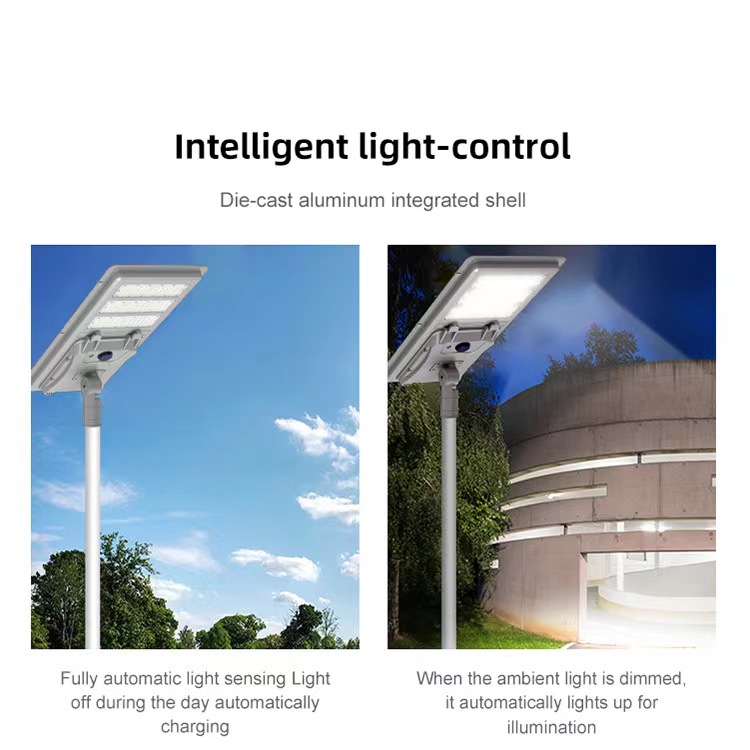

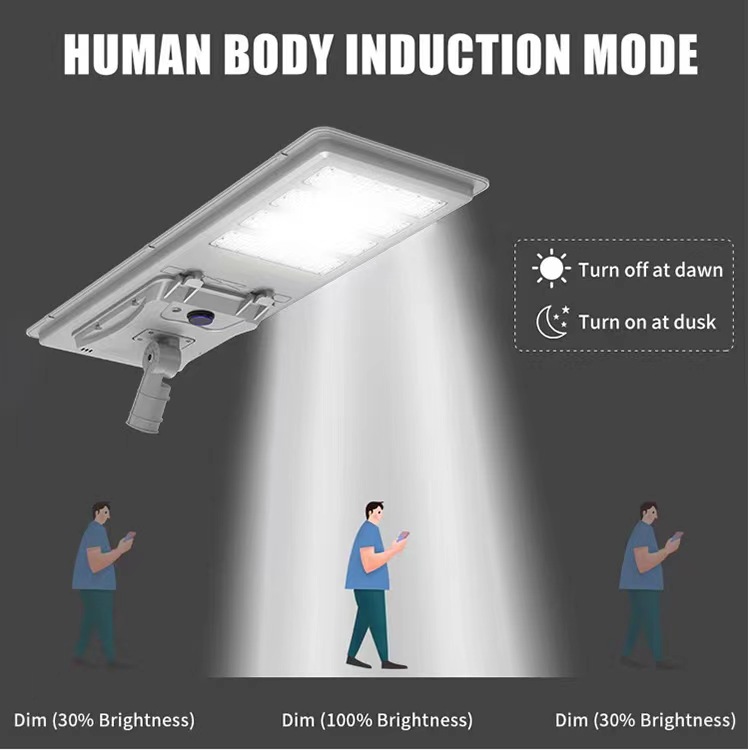

- Automatic Operation: The lamps come with built-in light sensors that automatically turn them on at dusk and off at dawn, ensuring hassle-free operation.
- Adjustable Settings: Some models in the RD series offer adjustable brightness levels and lighting modes, allowing users to customize the lighting according to their needs.
BENEFITS
- Cost-effective: By harnessing solar energy, the RD series solar lamps significantly reduce electricity costs, making them a cost-effective lighting solution in the long run.
- Environmentally-friendly: Solar-powered lighting helps reduce carbon emissions and dependence on traditional energy sources, contributing to a greener and more sustainable environment.
- Easy Installation: The wireless design of these solar lamps makes installation quick and straightforward, without the need for extensive wiring or trenching.
- Versatile Applications: The RD series solar lamps can be used in various applications such as residential areas, parks, pathways, parking lots, and gardens, providing reliable lighting in areas without access to grid electricity.
INSTALLATION
- Determine the desired location for the solar lamp light, ensuring it receives adequate sunlight during the day.
- Securely mount the solar panel in a position that maximizes exposure to sunlight.
- Connect the solar panel to the lamp unit using the provided cables.
- Follow the manufacturer’s instructions to secure the lamp fixture in place, ensuring it is stable and protected from any potential damage.
- Once installed, the solar lamp light will automatically charge during the day and illuminate at night.
APPLICATION

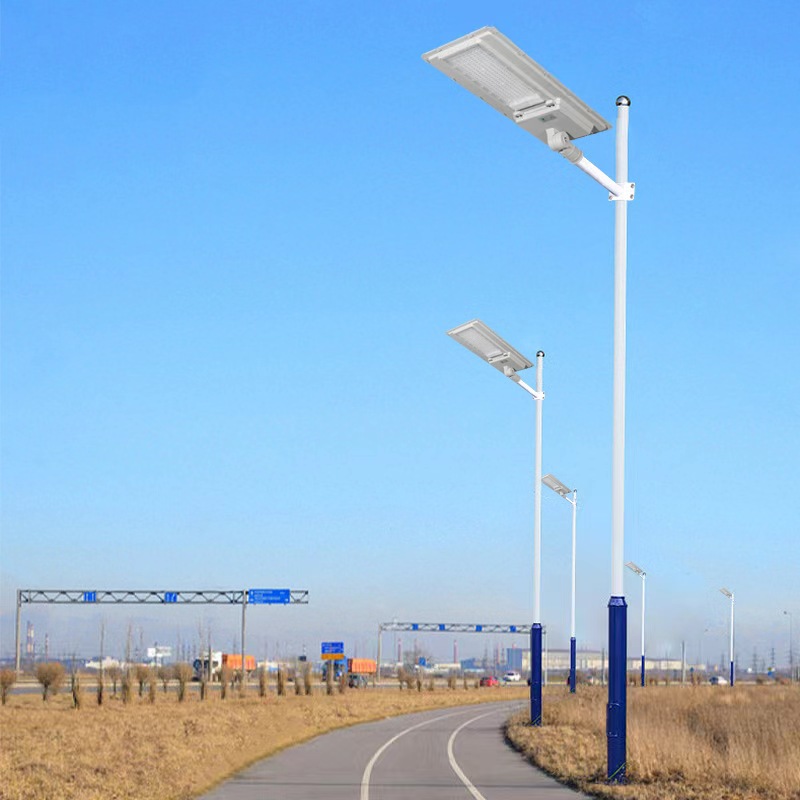

solar lamp light & RD series solar lamp light is suitable for a wide range of applications, including:
– Residential areas
– Parks and recreational areas
– Pathways and walkways
– Parking lots and carports
– Gardens and landscapes
