OVERVIEW

SMD 2835 LED light strip is an LED light strip manufactured using surface mount technology (SMD). It consists of multiple small LED chips concentrated on a light strip. This kind of light strip has the characteristics of high brightness, high efficiency and long life.

Led light strip refers to assembling LEDs on a strip-shaped FPC (flexible circuit board) or PCB hard board. Led lights have single-color lighting, full-color (phantom light strips), LED digital light strips, and pixel light strips

; Can realize chasing, flowing water, illusion, display effects, etc.

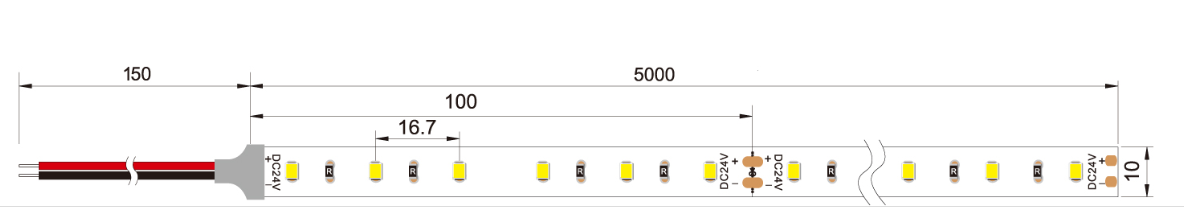

PRODUCT SIZE & Strip lights 2835 smd 30-60 leds

Product Code

Color

LEDs type

LEDs/m

Voltage

Watt/Meter

PCB Width

CRI (Ra)

Lumen   (lm/m)

Effect LM/W

IP

Deg

Size

Qty

Part No.

LSM2835WW30D1

2700K

2835

30

DC12

6W/M

8mm

80↑

460

100LM/W

20↑

120

5000X8X2.5mm

5m/REEL

LSM01

LSM2835WV30D1

3000K

2835

30

DC12

6W/M

8mm

80↑

460

100LM/W

20↑

120

5000X8X2.5mm

5m/REEL

LSM02

LSM2835WT30D1

4000K

2835

30

DC12

6W/M

8mm

80↑

455

100LM/W

20↑

120

5000X8X2.5mm

5m/REEL

LSM03

LSM2835WR30D1

5000K

2835

30

DC12

6W/M

8mm

80↑

450

100LM/W

20↑

120

5000X8X2.5mm

5m/REEL

LSM04

LSM2835WP30D1

6000K

2835

30

DC12

6W/M

8mm

80↑

430

100LM/W

20↑

120

5000X8X2.5mm

5m/REEL

LSM05

LSM2835WW60D1

2700K

2835

60

DC12

12W/M

10mm

80↑

956

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM06

LSM2835WV60D1

3000K

2835

60

DC12

12W/M

10mm

80↑

956

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM07

LSM2835WT60D1

4000K

2835

60

DC12

12W/M

10mm

80↑

944

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM08

LSM2835WR60D1

5000K

2835

60

DC12

12W/M

10mm

80↑

880

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM09

LSM2835WP60D1

6000K

2835

60

DC12

12W/M

10mm

80↑

880

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM10

LSM2835WW60D1

2700K

2835

60

DC24

12W/M

10mm

80↑

956

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM11

LSM2835WV60D1

3000K

2835

60

DC24

12W/M

10mm

80↑

956

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM12

LSM2835WT60D1

4000K

2835

60

DC24

12W/M

10mm

80↑

944

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM13

LSM2835WR60D1

5000K

2835

60

DC24

12W/M

10mm

80↑

880

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM14

LSM2835WP60D1

6000K

2835

60

DC24

12W/M

10mm

80↑

880

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM15

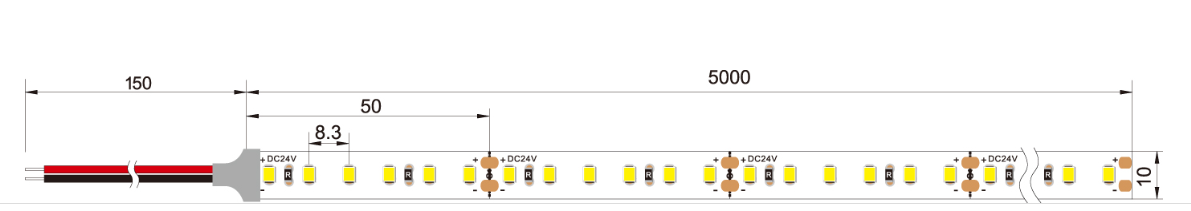

PRODUCT SIZE & Strip lights 2835 smd 120-180 leds

Product Code

Color

LEDs type

LEDs/m

Voltage

Watt/Meter

PCB Width

CRI (Ra)

Lumen   (lm/m)

Effect LM/W

IP

Deg

Size

Qty

Part No.

LSM2835WW120D1

2700K

2835

120

DC12

24W/M

10mm

80↑

1854

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM16

LSM2835WV120D1

3000K

2835

120

DC12

24W/M

10mm

80↑

1850

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM17

LSM2835WT120D1

4000K

2835

120

DC12

24W/M

10mm

80↑

1836

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM18

LSM2835WR120D1

5000K

2835

120

DC12

24W/M

10mm

80↑

1720

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM19

LSM2835WP120D1

6000K

2835

120

DC12

24W/M

10mm

80↑

1680

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM20

LSM2835WW120D2

2700K

2835

120

DC24

24W/M

10mm

80↑

1854

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM21

LSM2835WV120D2

3000K

2835

120

DC24

24W/M

10mm

80↑

1850

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM22

LSM2835WT120D2

4000K

2835

120

DC24

24W/M

10mm

80↑

1836

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM23

LSM2835WR120D2

5000K

2835

120

DC24

24W/M

10mm

80↑

1720

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM24

LSM2835WP120D2

6000K

2835

120

DC24

24W/M

10mm

80↑

1680

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM25

Product Code

Color

LEDs type

LEDs/m

Voltage

Watt/Meter

PCB Width

CRI (Ra)

Lumen   (lm/m)

Effect LM/W

IP

Deg

Size

Qty

Part No.

LSM2835WW180D1

2700K

2835

180

DC12

24W/M

10mm

80↑

2150

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM26

LSM2835WV180D1

3000K

2835

180

DC12

24W/M

10mm

80↑

2100

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM27

LSM2835WT180D1

4000K

2835

180

DC12

24W/M

10mm

80↑

2056

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM28

LSM2835WR180D1

5000K

2835

180

DC12

24W/M

10mm

80↑

1980

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM29

LSM2835WP180D1

6000K

2835

180

DC12

24W/M

10mm

80↑

1960

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM30

LSM2835WW180D2

2700K

2835

180

DC24

24W/M

10mm

80↑

2150

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM31

LSM2835WV180D2

3000K

2835

180

DC24

24W/M

10mm

80↑

2100

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM32

LSM2835WT180D2

4000K

2835

180

DC24

24W/M

10mm

80↑

2056

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM33

LSM2835WR180D2

5000K

2835

180

DC24

24W/M

10mm

80↑

1980

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM34

LSM2835WP180D2

6000K

2835

180

DC24

24W/M

10mm

80↑

1960

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM35

Product Code

Color

LEDs type

LEDs/m

Voltage

Watt/Meter

PCB Width

CRI (Ra)

Lumen   (lm/m)

Effect LM/W

IP

Deg

Size

Qty

Part No.

LSM2835R180D1

625

2835

180

DC12

14.4W/M

10mm

/

270

30 LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM66

LSM2835Y180D1

590

2835

180

DC12

14.4W/M

10mm

/

207

20 LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM67

LSM2835B180D1

465

2835

180

DC12

14.4W/M

10mm

/

172

25LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM68

LSM2835G180D1

525

2835

180

DC12

14.4W/M

10mm

/

810

90 LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM69

LSM2835R180D2

625

2835

180

DC24

14.4W/M

10mm

/

270

30 LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM70

LSM2835RP180D2

Pink

2835

180

DC24

14.4W/M

10mm

/

270

30 LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM71

LSM2835Y180D2

590

2835

180

DC24

14.4W/M

10mm

/

207

20 LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM72

LSM2835B180D2

465

2835

180

DC24

14.4W/M

10mm

/

172

25LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM73

LSM2835G180D2

525

2835

180

DC24

14.4W/M

10mm

/

810

90 LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM74

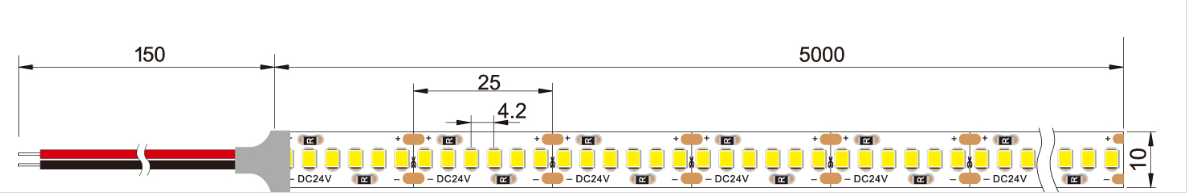

PRODUCT SIZE & Strip lights 2835 smd 240 leds

Product Code

Color

LEDs type

LEDs/m

Voltage

Watt/Meter

PCB Width

CRI (Ra)

Lumen   (lm/m)

Effect LM/W

IP

Deg

Size

Qty

Part No.

LSM2835WW240D1

2700K

2835

240

DC12

24W/M

10mm

80↑

1890

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM36

LSM2835WV240D1

3000K

2835

240

DC12

24W/M

10mm

80↑

1800

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM37

LSM2835WT240D1

4000K

2835

240

DC12

24W/M

10mm

80↑

1740

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM38

LSM2835WR240D1

5000K

2835

240

DC12

24W/M

10mm

80↑

1690

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM39

LSM2835WP240D1

6000K

2835

240

DC12

24W/M

10mm

80↑

1624

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM40

LSM2835WW240D2

2700K

2835

240

DC24

24W/M

10mm

80↑

1890

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM41

LSM2835WV240D2

3000K

2835

240

DC24

24W/M

10mm

80↑

1800

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM42

LSM2835WT240D2

4000K

2835

240

DC24

24W/M

10mm

80↑

1740

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM43

LSM2835WR240D2

5000K

2835

240

DC24

24W/M

10mm

80↑

1690

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM44

LSM2835WP240D2

6000K

2835

240

DC24

24W/M

10mm

80↑

1624

100LM/W

20↑

120

5000X10X2.5mm

5m/REEL

LSM45

FEATURES

SMD 2835 LED strip lights usually come in standard sizes, such as 5 meters in length and 8-10 mm in width. Its operating voltage is usually 12 volts (V) or 24 volts (V).

Soft: Using a soft FPC board as the base board, it can be docked, bent, cut and fixed on concave and convex surfaces at will.

Cutting and welding are easy and free. Each group of 3/6 LEDs can form a circuit. It can be cut and welded along the upper tangent line (between the pads) to meet the various light bar lengths required by the customer.

Different colors and brightness available upon request

Protection grade IP20- 65\ IP66\ IP68

BENEFITS

It has uniform light scattering properties and can provide soft and uniform lighting effects.

Lower energy consumption, energy saving rate up to 80%, effectively reducing energy consumption.

The service life can generally reach more than 50,000 hours.

Reliable performance and stable light output for long-lasting, consistent lighting

Environmentally friendly and safe, no glare, impact resistance, etc.

Pure color, high light efficiency and stable power

Lower heat generation and higher shock resistance

APPLICATION

Home lighting such as bedrooms, living rooms and kitchens

Commercial lighting such as shopping malls, offices and restaurants

Suitable for luminous characters, light boxes, backlights, etc.;
