LED Downlights & M12

LED Downlights | M12 Series Surface-Mount LED Downlights

The LED Downlights M12 Series is a line of industrial-grade, surface-mounted LED downlights designed for high-reliability applications in challenging environments.

Engineered for Durability, Designed for Versatility

The M12 Series sets a new standard for industrial surface-mount illumination. Designed specifically for environments where recessed installation is impractical, these luminaires feature a robust die-cast aluminum housing with superior thermal management, ensuring a lifespan of over 50,000 hours.

With a high system efficacy of up to 125 lm/W, the M12 Series delivers powerful, uniform light distribution for warehouses, parking structures, and outdoor canopies. Its tool-free surface-mount design simplifies installation on concrete or metal surfaces, significantly reducing on-site labor costs. Whether for high-humidity soffits or heavy-duty industrial facilities, the M12 Series provides the reliability and optical precision that professional lighting designers demand.

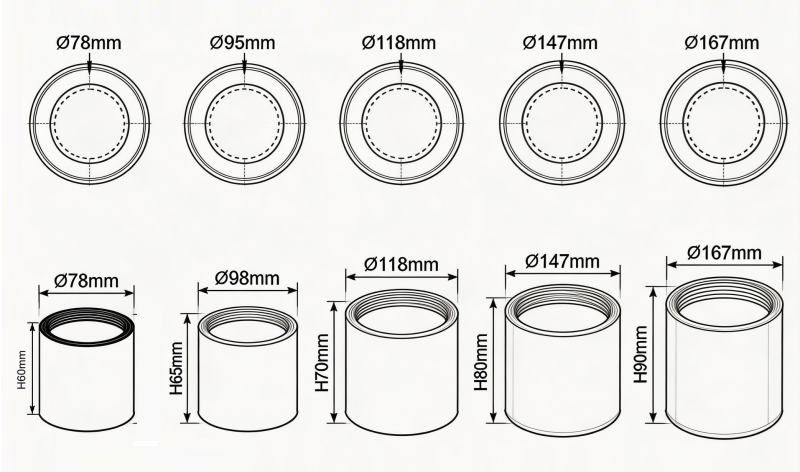

Dimensional & Technical Drawings

Available Models & Part Numbers

Key Features

• Die-Cast Aluminum Housing: Heavy-duty construction with corrosion-resistant powder coating (White/Black).
• Surface-Mount Only: No ceiling cutout required; mounts directly to concrete, metal, or wood surfaces.
• High Efficacy: Up to 120 lm/W system performance with L70 >50,000 hours at 25°C.
• Surge Protection (Optional): Built-in 10kV SPD for lightning-prone regions.
• Tool-Free Installation: Spring clips and pre-wired cable gland simplify on-site setup.

Applications

• Industrial Warehouses & Factories: Reliable lighting for production lines and storage areas.
• Building Soffits & Canopies: Ideal for exterior overhangs where recessed installation is impossible.
• Retrofit Projects: Easy replacement for fluorescent or halogen fixtures without ceiling modification.
• Commercial Kiosks & Outdoor Displays: Weather-resistant lighting for retail signage and kiosks.
