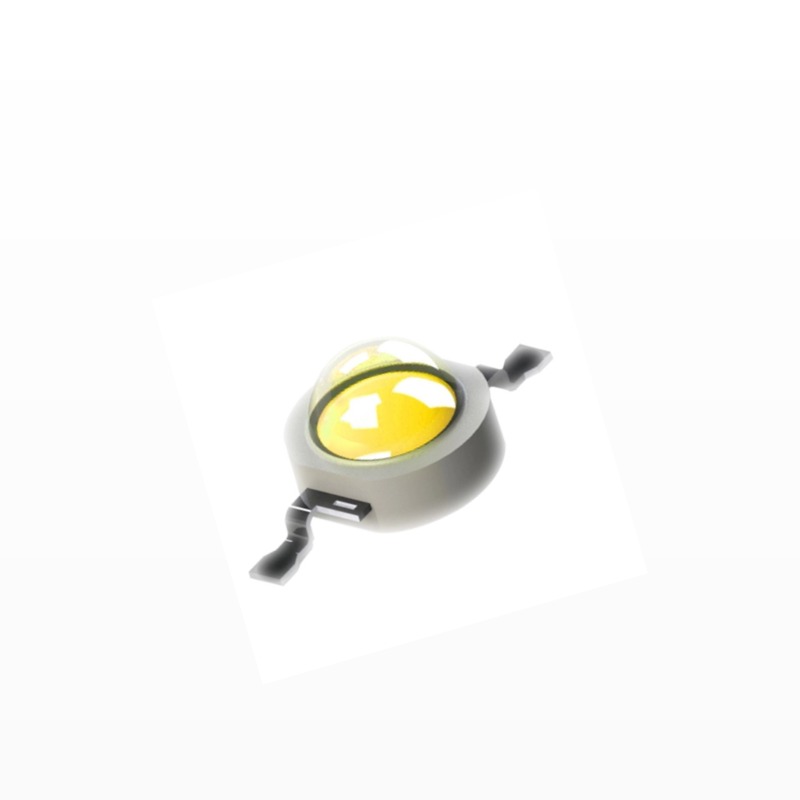

The image shows high power led 1w 3w LEDs of China QUEENDOM Company.

High-Power Imitation Lumen LEDs

Name: High-Power Imitation Lumen LEDs
Brand: QUEENDOM

Technical Specifications

8mm High-Power LEDs – High-Power Imitation Lumen LEDs

Package Size: Ø8.0 mm × 2.7 mm (height), lens diameter: Ø5.15 mm
Mounting Type: Surface Mount Device (SMD)
Lead Configuration: Dual metal leads with central slug (Anode & Cathode marked)
Operating Current: 350 mA (standard), up to 700 mA (continuous, with thermal management)
Forward Voltage (V_F): 2.8 V – 3.6 V @ 350 mA
Typical Power Consumption: ~1.1 W @ 350 mA | ~2.4 W @ 700 mA
Luminous Efficacy (White): 100 – 160 lm/W (depending on CCT and bin)
Color Options:
• White (phosphor-converted): 2700K, 3000K, 4000K, 5000K, 6500K
• Monochrome: Red, Green, Blue, Yellow, Purple (custom available)
CRI: 70–90 (options available; CRI ≥80 standard)
Viewing Angle: 120° (Lambertian emission); optional secondary optics for narrow beam
Thermal Resistance (R_θJA): 15–20 °C/W (on recommended MCPCB)
Operating Temperature (Ambient): −40°C to +85°C
Maximum Junction Temperature (T_j): 150°C
Lifetime (L70/B50): ≥50,000 hours @ T_j ≤ 85°C
Compliance: RoHS, REACH, CE, IEC 62471 (Photobiological Safety – Risk Group 1)

Category: High-Power LED

Description

High-Power Imitation Lumen LEDs | 8mm High-Power LEDs

Overview

High-power imitation lumen LEDs are surface-mount (SMD) light sources designed to deliver high luminous flux, excellent thermal stability, and long operational life. Compatible with legacy Lumileds Rebel-style platforms, they serve as cost-effective alternatives for industrial, automotive, and general lighting applications.

Absolute Maximum Ratings

Table 1. Typical optical and electrical characteristics (T_j = 25°C)

Ø Absolute Maximum Rating(At TA=25°C)	Symbol	Ratings	Units
Parameter	PD	3000	mW
Continuous Forward Current	I_F	700	mA
Peak Forward Current ＊1	I_FP	1400	mA
Reverse Voltage	V_R	5	V
Thermal Resistance Junction To Board	RΘ_J-B	/	°C/W
Operating Temperature Range	T_OPR	Minus 30°C To plus 60°C
Storage Temperature Range	T_STG	Minus 40°C To plus 80°C
Manual Solding Temperature	T_SOL	260°C± 10°C For 3~5 Seconds
ESD Sensitivity	ESD	2000V HBM

Available Models & Part Numbers

See product tables for white (HPW**** series) and color (HP**** series) part numbers, including binning codes for flux, voltage, and CCT.

High-power Color LEDs & Part Numbers

Table 2. Optical and Electrical Characteristics of Queendom LEDs at 350 mA &700 mA (Tj = 25 °C)

Model	Rank Code	Color Type	Wavelength (nm)		Luminous Flux (lm)		Forward Voltage VF (V)		Viewing Angle	Test Current	Part Number
Device Model	Rank	Typical λ (nm)	Min	Max	Min	Max	Min	Max	(2θ½, °)	(mA)	P/N
PB52WE	HP0417	460	460	470	26	55	2.6	3.2	120	300	8541401000HP0417
PB62WE	HP0418	470	470	480	26	55	2.6	3.2	120	300	8541401000HP0418
PG02WE	HP0419	500	500	510	60	95	2.6	3.2	120	300	8541401000HP0419
PG12WE	HP0420	510	510	520	75	120	2.6	3.2	120	300	8541401000HP0420
PG22WE	HP0421	520	520	530	75	120	2.6	3.2	120	300	8541401000HP0421
PG32WE	HP0422	530	530	540	75	120	2.6	3.2	120	300	8541401000HP0422
PY22WE	HP0423	585	585	595	34	60	1.8	2.4	120	300	8541401000HP0423
PAO2WE	HP0424	605	600	610	34	65	1.8	2.4	120	300	8541401000HP0424
PR22WE	HP0425	620	610	630	34	65	1.8	2.4	120	300	8541401000HP0425
PR32WE	HP0426	630	620	640	26	55	1.8	2.4	120	300	8541401000HP0426
PR42WE	HP0427	640	640	660	22	45	1.8	2.4	120	300	8541401000HP0427
PB52WF	HP0428	460	460	470	75	120	2.6	3.2	120	700	8541401000HP0428
PB62WF	HP0429	470	470	480	75	120	2.6	3.2	120	700	8541401000HP0429
PG02WF	HP0430	500	500	510	190	240	2.6	3.2	120	700	8541401000HP0430
PG12WF	HP0431	510	510	520	190	240	2.6	3.2	120	700	8541401000HP0431
PG22WF	HP0432	520	520	530	200	280	2.6	3.2	120	700	8541401000HP0432
PG32WF	HP0433	530	530	540	200	280	2.6	3.2	120	700	8541401000HP0433
PY22WF	HP0434	585	585	595	95	120	1.8	2.4	120	700	8541401000HP0434
PAO2WF	HP0435	605	600	610	95	120	1.8	2.4	120	700	8541401000HP0435
PR22WF	HP0436	620	610	630	95	140	1.8	2.4	120	700	8541401000HP0436
PR32WF	HP0437	630	620	640	95	140	1.8	2.4	120	700	8541401000HP0437
PR42WF	HP0438	640	640	660	28	45	1.8	2.4	120	700	8541401000HP0438

High-power Whie LEDs & Part Numbers

Model	Rank Code	Color Type	CRI	Luminous Flux (lm)		Forward Voltage VF (V)		Efficacy	Viewing Angle	Test Current	Part Number
Device Model	Rank	CCT/K	(Ra)	MIN	MAX	MIN	MAX	(lm/W)	(2θ½, °)	(mA)	P/N
PWY2WE	HP0401	2700K	80	100	160	2.8	3.2	130	120	300	8541401000HP0401
PWV2WE	HP0402	3000K	80	100	160	2.8	3.2	130	120	300	8541401000HP0402
PWU2WE	HP0403	3500K	80	100	160	2.8	3.2	130	120	300	8541401000HP0403
PWT2WE	HP0404	4000K	80	100	160	2.8	3.2	130	120	300	8541401000HP0404
PWR2WE	HP0405	5000K	80	100	160	2.8	3.2	130	120	300	8541401000HP0405
PWQ2WE	HP0406	5700K	80	100	160	2.8	3.2	130	120	300	8541401000HP0406
PWP2WE	HP0407	6500K	80	100	160	2.8	3.2	130	120	300	8541401000HP0407
PWD2WE	HP0408	7600K	80	100	160	2.8	3.2	130	120	300	8541401000HP0408
PWY2WF	HP0409	2700K	80	190	240	2.8	3.2	130	120	700	8541401000HP0409
PWV2WF	HP0410	3000K	80	190	240	2.8	3.2	130	120	700	8541401000HP0410
PWU2WF	HP0411	3500K	80	190	240	2.8	3.2	130	120	700	8541401000HP0411
PWT2WF	HP0412	4000K	80	190	240	2.8	3.2	130	120	700	8541401000HP0412
PWR2WF	HP0413	5000K	80	190	240	2.8	3.2	130	120	700	8541401000HP0413
PWQ2WF	HP0414	5700K	80	190	240	2.8	3.2	130	120	700	8541401000HP0414
PWP2WF	HP0415	6500K	80	190	240	2.8	3.2	130	120	700	8541401000HP0415
PWD2WF	HP0416	7600K	80	190	240	2.8	3.2	130	120	700	8541401000HP0416

Features

High Brightness & Efficiency: Luminous efficacy up to 160 lm/W (white); radiant flux optimized per wavelength.
Long Lifetime: ≥50,000 hours (L70/B50) when operated at junction temperature T_j ≤ 85°C.
Robust Construction: 99.99% pure gold wire bonding, high-temperature-resistant encapsulant (Japanese-grade silicone).
Broad Spectrum Options: White (2700K–6500K), red, orange, yellow, green, blue, purple, and NIR.
Flexible Beam Control: Standard 120° viewing angle; optional secondary optics for 30°, 60°, 90°, or 150°.
