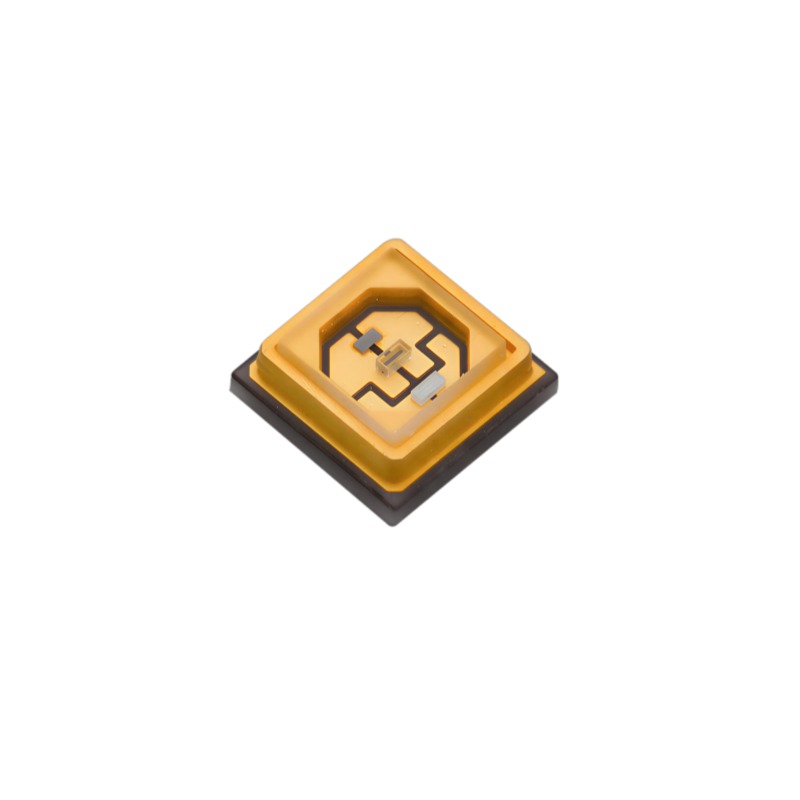

3535 UVA UVC Dual-Core UV LED – 3.5mm×3.5mm Quartz Package, 250-330nm (UVC) & 390-400nm (UVA) Wavelength, High-Purity Gold Bonding Wire

3535 Dual-Chip UV LED (UVC + UVA)

Name: 3535 Dual-Chip UV LED (UVC + UVA)
Brand: QUEENDOM

Technical Specifications

3535 Dual-Chip UV LED (UVC + UVA)

Package Type: Surface-mount (SMD)
Package Size: 3.5 mm × 3.5 mm
Chip Configuration: Independent UVC (AlGaN) and UVA (InGaN) chips in single package
Available Channels:
• UVC: 275 nm (270–280 nm)
• UVA: 395 nm (390–400 nm)
Electrical Connection: Common cathode / independent anodes (see datasheet)
Optical Power (Typical @ T_j = 25°C):
• UVC @60 mA: 7–10 mW
• UVA @— mA: 60–100 mW
Forward Voltage:
• UVC: 5.0–7.0 V
• UVA: 2.8–3.6 V
Viewing Angle: 120° (each channel)
Operating Temperature: −40°C to +85°C
Compliance: RoHS, REACH, EN 62471 (Risk Group 1)

Category: UV LED Tags: 3535 UV LEDs, uv led

Description

3535 Dual-Chip UV LED – UVC 275nm + UVA 395nm

Available Models & Part Numbers

Performance data measured at T_j = 25°C.

Model	Rank Code	Color Type	Wavelength (nm)		Radiant Flux (mW)		Forward Voltage VF (V)		Viewing Angle	Test Current	Part Number
Device Model	Rank	Typical λ (nm)	Min	Max	Min	Max	Min	Max	(2θ½, °)	(mA)	P/N
S3535V341BF-C3/A2	UVSL14	275	270	280	7	10	5.00	7.00	120.00	60	8541401000UVSL14
S3535V341BF-C3/A2	UVSL14	395	390	400	60	100	2.80	3.60	120.00	60	8541401000UVSL14

*UVA channel driven independently; total package current depends on application circuit.

Key Features

Dual-emitter in single 3535 SMD package: UVC (275 nm) + UVA (395 nm)
Independent control of each channel for flexible system design
Low thermal resistance (< 10 K/W) for stable continuous operation
Mercury-free, RoHS/REACH compliant
Compatible with standard SMT reflow processes

Typical Applications

Multi-function disinfection & curing modules:
UVC for surface decontamination, UVA for adhesive curing in same device
Advanced sensing systems:
UVC for TOC analysis, UVA for fluorescence excitation
Industrial inspection equipment:
Dual-wavelength counterfeit detection or leak testing

Note: Integration into consumer appliances requires full photobiological safety validation per IEC 62471. Not intended for direct human exposure.
